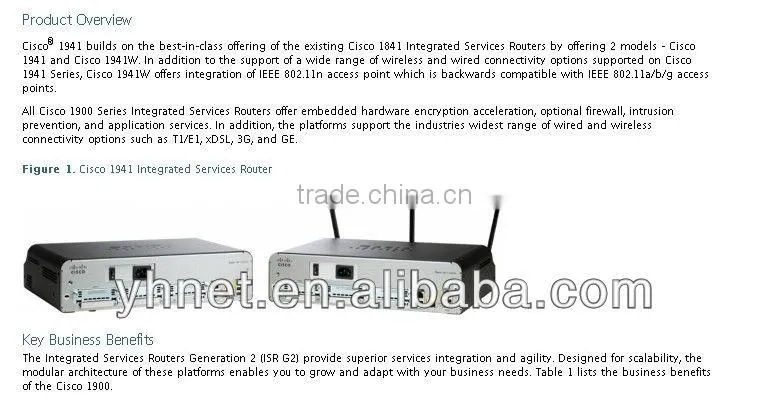

CISCO1941-SEC/K9 Router Manageable

Cisco1941, Cisco1941W

Services and Slot Density

Embedded hardware-based crypto acceleration (IPSec)

Yes

Total Onboard LAN 10/100/1000

2

RJ-45-Based Ports

2

SFP-Based Ports

0

SM Slots

0

Double-Wide SM Slots

0

EHWIC Slots

2

Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots)

1

ISM Slots

1 (0 on the Cisco 1941W)

Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default

512 MB

Memory (DDR2 ECC DRAM) - Maximum

2.0 GB

Compact Flash (external) - Default

slot 0: 256 MB

slot 1: none

Compact Flash (external) - Maximum

slot 0: 4 GB

slot 1: 4 GB

External USB flash memory slots (Type A)

2

USB Console Port (Type B) (up to 115.2 kbps)

1

Serial Console Port (up to 115.2 kbps)

1

Serial Auxiliary Port (up to 115.2 kbps

1

Power Supply Options

AC, POE

Redundant Power Supply Support

No

Power Specifications

AC Input Voltage

100-240 V ~

AC Input Frequency

47-63 Hz

AC Input Current range AC Power Supply (Max) (Amps)

1.5-0.6

AC Input Surge Current

<50 A

Typical Power (No Modules)

35 W

Maximum Power capacity with AC power supply

110 W

Maximum Power capacity with PoE power supply (platform only)

110 W

Maximum PoE device power capacity with PoE power supply

80 W

Physical Specifications

Dimensions (H x W x D)

3.5 in x 13.5 in x 11.5 in

Rack Height

2 RU

Rack-mount 19in. (48.3 cm) EIA

Included

Wall-mount (refer to installation guide for approved orientation)

Yes

Weight - with AC power supply (no modules)

12 lbs

Weight - with POE power supply (no modules)

12.8 lbs

Maximum Weight - Fully Configured

14 lbs

Airflow

Front to Side

Environmental Specifications

Operating Condition

Temperature - 5906 feet (1800 m) max. altitude

0-40°C (32-104°F)

Temperature - 9843 feet (3000 m) max. altitude

0-25°C (32-77°F)

Altitude

3000 m (10000 ft)

Humidity

10 to 85% RH

Acoustic: Sound Pressure (Typ/Max)

26/46 dBA

Acoustic: Sound Power (Typ/Max)

36/55 dBA

Telecom

TIA/EIA/IS-968

CS-03

ANSI T1.101

ITU-T G.823, G.824

IEEE 802.3

RTTE Directive
