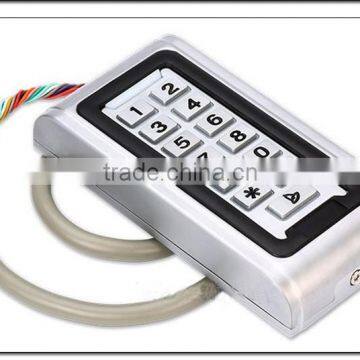

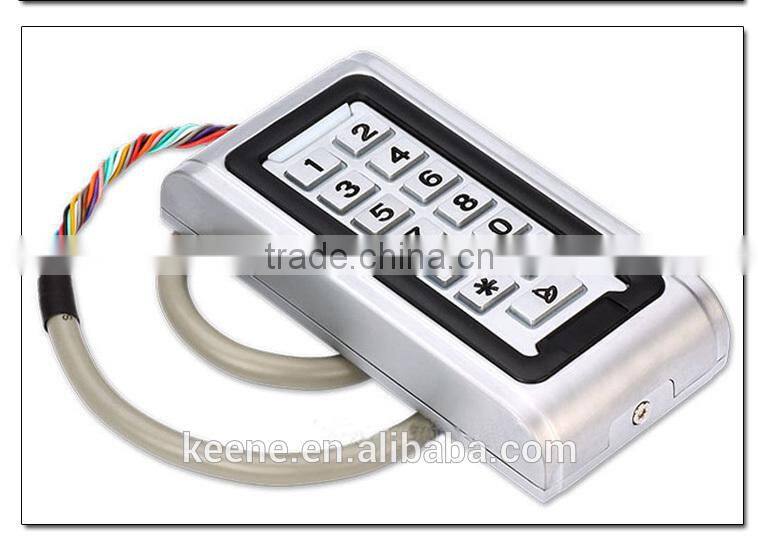

Metal CASE Card Reader Keypad Standalone Rfid Access Controller

Features:

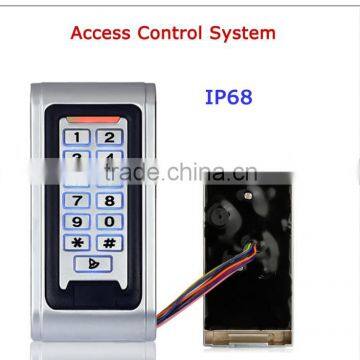

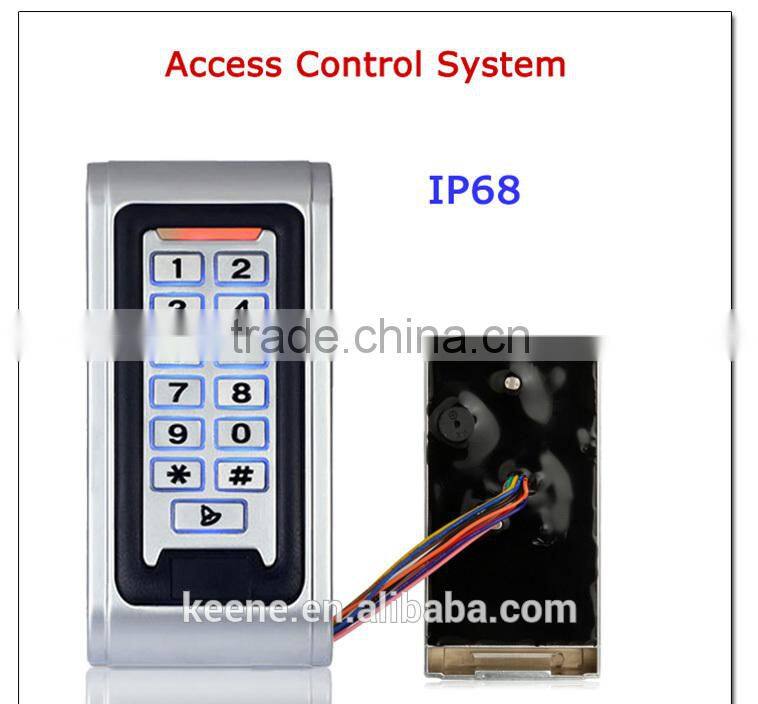

Waterproof, conforms to IP68

Classical appearance with useful function

High quality and high security

Strong Zinc Alloy Electroplated anti-vandal case

Designed for home and office

Sensitively and response quickly

Full programming from the keypad

Easy to install and program

Support 2000 standard users

Fast operating speed, <20ms with 2000 users

Built-in proximity card reader

Built-in keypad for PIN code entry

Backlight keys

Supports Card, PIN, Card + PIN

Wiegand 26 output for connection to a controller

Lock output current short circuit protection

Very low power consumption (30mA)

Can add card number and delete card number as your requirement

Alarm function

With lock relay output, secure / normal Mode, NO / NC output

Internal buzzer

Built-in bell button can connect a external bell

Important Notice:

Please note that "exit button", "electric lock" and "DC 12V power supply" are not included in this package, please kindly refer to our store for all available accessories for Access Control.

Specifications:

Environment :Conforms to IP68

User Capacity : 2000

Card Reading Distance :     3 ~ 6 cm

Compatible Cards :EM4100 standard cards

Wiegand Interface : Wiegand 26 bit

Lock Output Load < 3 A

Alarm Output Load < 20 A

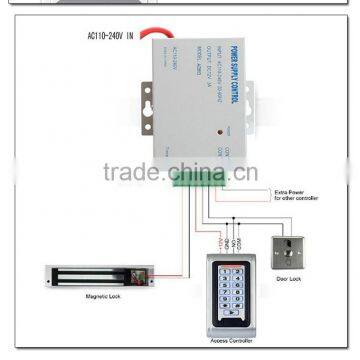

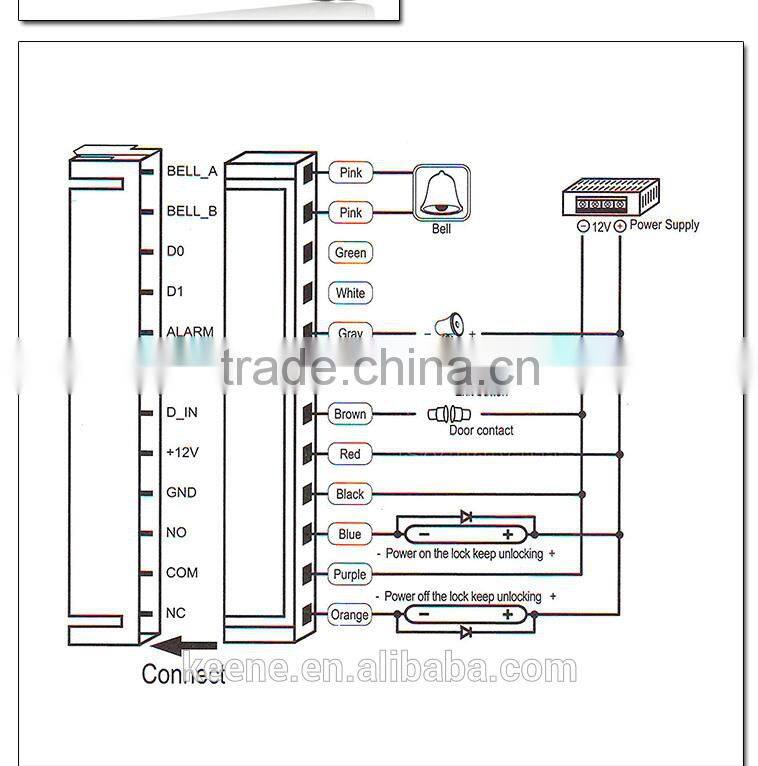

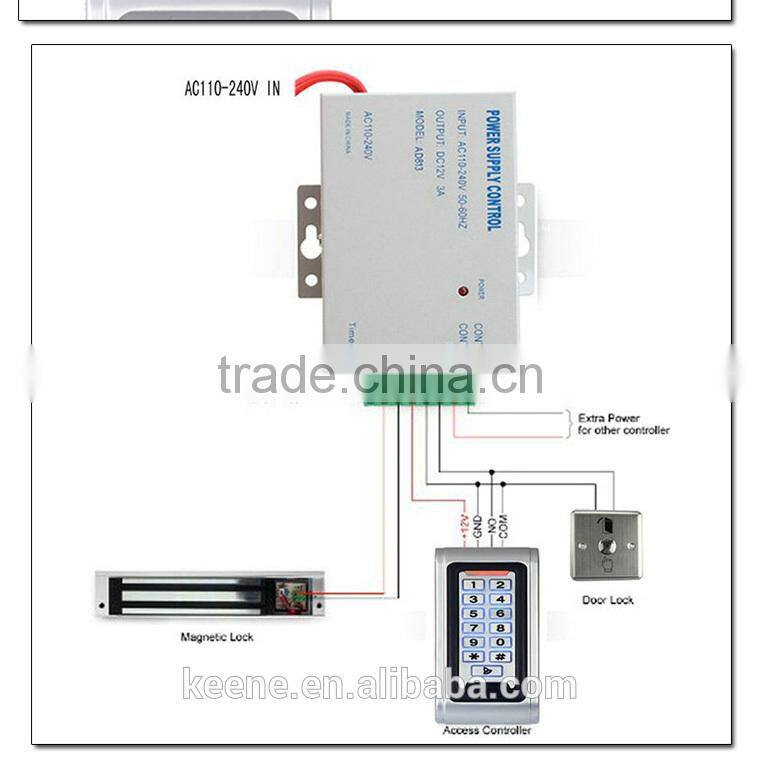

Wiring Connections : Electric Lock, Exit Button, External Alarm

Adjustable Door Relay time : 0 ~ 99 seconds

Adjustable Alarm Time : 0 ~ 3 minutes

Operation Temperature : -45°C ~ 60°C

Input Voltage :DC 12V

Input Current :- Standby : < 30mA (not including attached devices)

- Active Current : < 60mA (not including attached devices)

Operating Humidity :10% ~ 90% RH

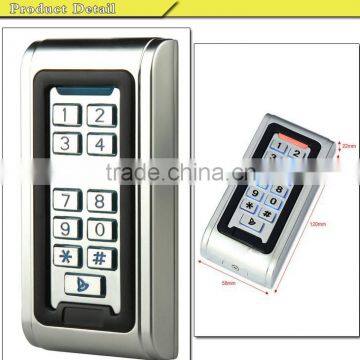

Dimension :

Approx. 120 (W) x 58 (H) x 22 (D) mm

Approx. 4-3/4” (W) x 2-1/4” (H) x 7/8” (D) inch

Package includes:

1 x Waterproof Door Access Control RFID Reader with Keypad Metal Case

1 x Installation Kit

1 x Installation Fixed Label

1 x User Manual
