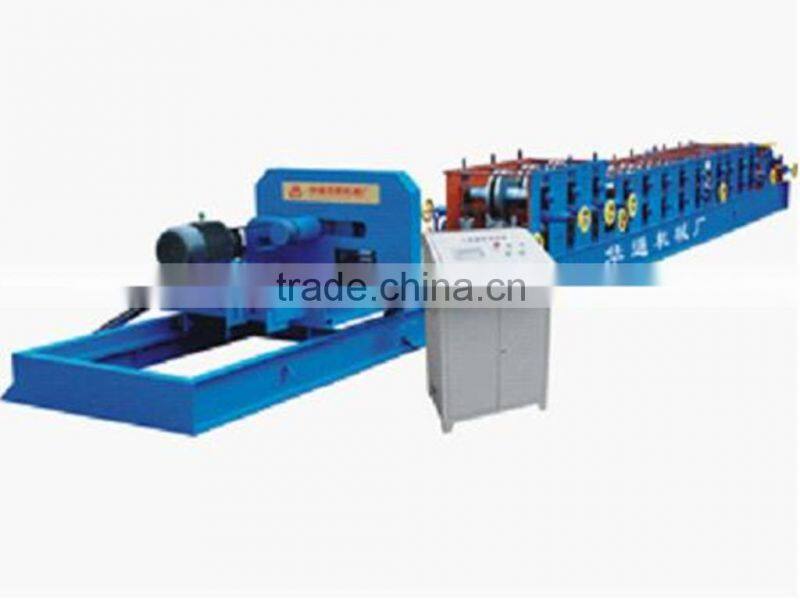

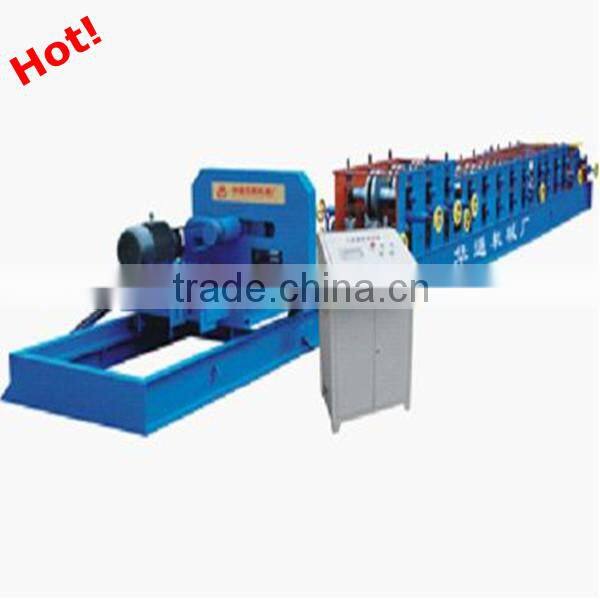

NEWHT- U purline machine line

Specifications

1.Newest design;
2.Hydraulic making Machine Price;
3.Hua Tong Roll Forming Machine;
4.ISO certificate passed .

HuaTong- U purline machine line





1. Machine components



(1) Manualun-coiler                                  1 set



(2) Feeding device and leveling device                   1 set



(3) Roll-forming M/C                                  1 set



(4) Hydraulic fly saw cutter (no punching system)           1 set



(5) PLC control system                                1 set



(6) Hydraulic station                                   1 set



(7) Product rack (un-powered)                         1 set



2. Spare parts



1).Easy damaged parts:



Fuse-link                                           2 pcs

2).Rubber mat                                       2 pcs





(1) Material of frame : (high grade) 300mm H shape steel welding

(2) Thickness of middle plate : 20mm

(3) Step of forming roller : 12steps

(4) Diameter of shaft (solid shaft): 80mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment

(6) Material of roller: GCr15

(7) Treatment of roller : hard chromize coated

(8) Drive type of roll forming machine : drive by chain

(9) Chain : 38.1 mm (high grade)

(10) Bearing : 6310 (high grade)

(11) Reducer : 8# cycloid reducer (high grade)

(12) Power of main motor : 7.5KW

(13) Voltage : 380V/50Hz/3phase

(14) Line speed : about 4-9 m/min

(15) Oil pump of hydraulic station : gear oil pump (high grade)

(16) Hydraulic cutting: cutting controlled by PLC

(17) Accuracy of cutting : +/- 2mm

(18) Razor blades material : Cr12, quenching 58-62 °.

(19) Appearance size of main forming machine : 8.0m (length)*1.2m (width) *1.3m (height)

(20) Electrically controlled system : entire machine controlled by PLC

(21) PLC : DELTA(TAIWAN)

(22) Frequency converter : DELTA(TAIWAN)

(23) Encoder : RUI PU(high grade)

(24) Controlling desktop : text panel screen(high grade)

(25) Electrical parts : DELIXI or CHINT

Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
