HT Automatic Lever Arch File Machine

Botou Huatong Corrugated Machinery Manufacturing Co., Ltd.
HT Automatic Lever Arch File Machine thumbnail-1
HT Automatic Lever Arch File Machine photo-1
US$ 15,897 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, the automatic lever arch file machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, the automatic lever arch file machine
Tile Type Colored Steel
Use Roof
Place of Origin Hebei, China
Brand Name huatong
Model Number 25-190-760 type horizontal type
Power(W) 4kw
Voltage 380V/50Hz/3phase
Dimension(L*W*H) 2.1m (length)*1.3m (width) *1.2m (height)
Certification ISO
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.horizontal type automatic lever arch file machine
2.quality and quantity assured
3.Hua Tong curving Machine;
4.ISO

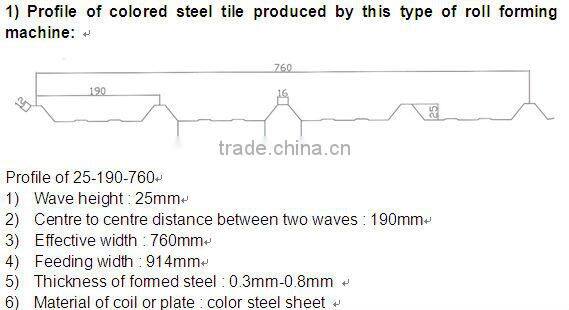

HT 25-190-760 type horizontal type automatic lever arch file machine

HT automatic lever arch file machine









Product Description

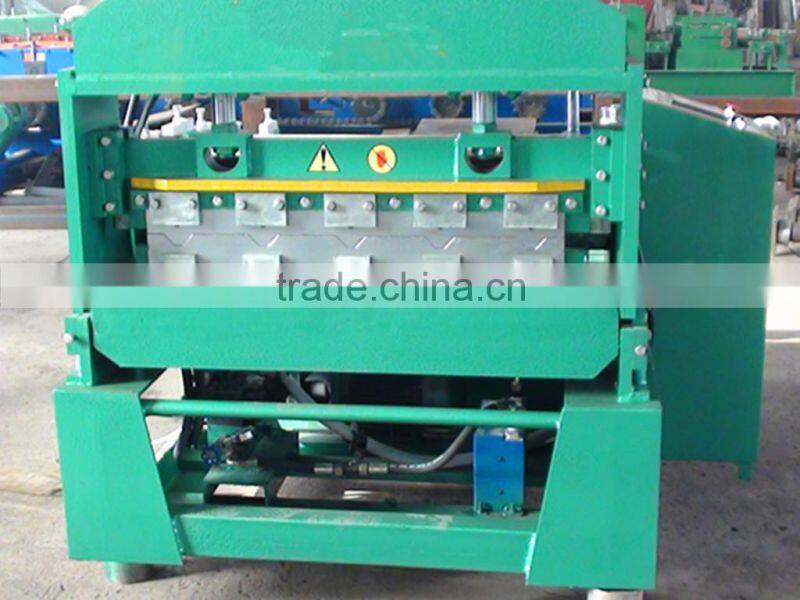

HT automatic lever arch file machine





parameters of roll forming machine



(1). Material of frame : (high grade) 300mm H shape steel welding

(2).Thickness of middle plate : 20mm

(3). Step of curving roller : 7 steps

(4). Diameter of shaft (solid shaft): 70mm

(5). Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment

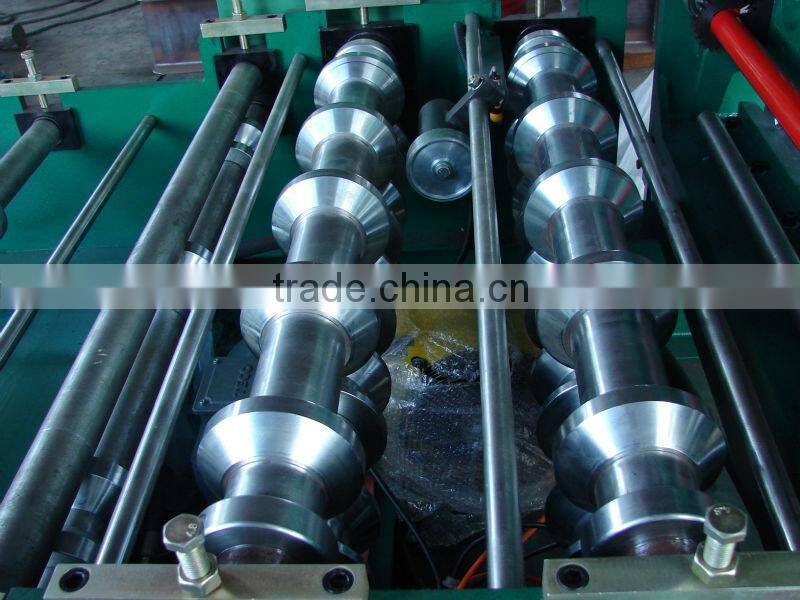

(6). Material of roller: 45# SteelHT automatic lever arch file machine

(7).Treatment of roller : hard chromize coated

(8). Drive type of roll forming machine : drive by hydraulic motor

(9). Bearing : 6210 (high grade)

(10). Power of main motor : 4KWHT automatic lever arch file machine

(11). Voltage : 380V/50Hz/3phase

(12). Motor power of hydraulic station : 3kw

(13). Oil pump of hydraulic station : gear oil pump (high grade)

(14). Accuracy of curving : +/- 2mm

(15). Electrically controlled system : entire machine controlled by PLC



(16). Controlling desktop : Touch screen (high grade)

HT automatic lever arch file machine





Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.

HT automatic lever arch file machine
