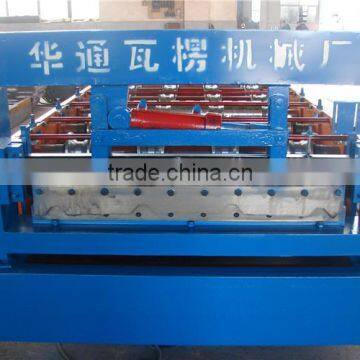

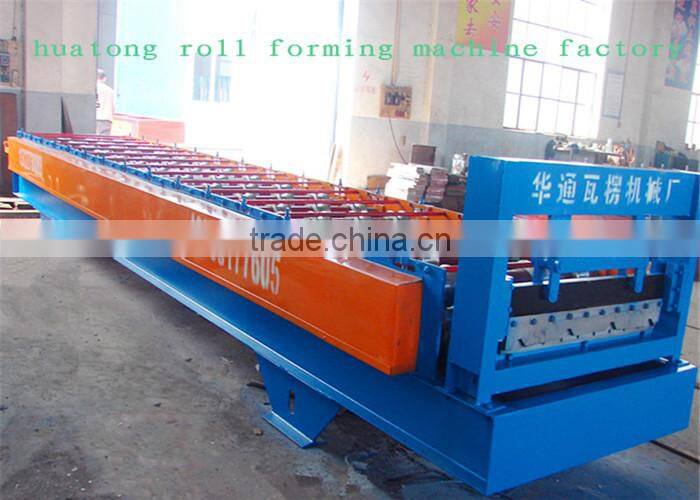

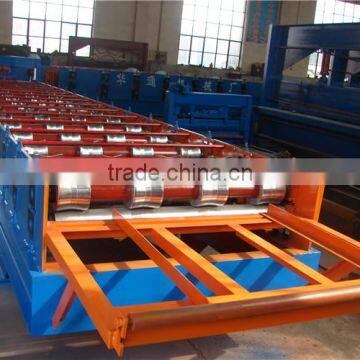

HT-820 color steel roll forming machine

Specifications

1 applies to roof/wall
2 fully automatic
3 we have passed ISO
4 we take the quality to the first

       HT -820 ROLL FORMING MACHINE

ht-820 roll forming machine

spicification

suitable coil width: about 1000mm

 suitable coil thickness:0.3-08 mm

 roller group: 13

 material of frame: 25# I beam steel

 the thickness of middle plate:12mm

 the diameter of shaft:70mm

 chain:19.05mm

 motor:3 kw

 roller material :45#steel

Treatment of rollers : hard chromize coated 0.05-0.07mm

 Drive type of roll forming machine : drive by chain

 Bearing : 6210 (high grade)

 Reducer : 5# cycloid reducer (high grade)

 Power of main motor : 3KW

Voltage : 380V/50Hz/3phase

Line speed : about 9 m/min

Motor power of hydraulic station : 3kw

 Oil pump of hydraulic station : gear oil pump (high grade)

 Hydraulic cutting: cutting controlled by PLC

 Accuracy of cutting : +/- 2mm

 Razor blades material : Cr12, quenching 58-62 °.

 Electrically controlled system : entire machine controlled by PLC

 PLC : DELTA(TAIWAN)

 Frequency converter : DELTA(TAIWAN)

 Frequency converter power : 3.7KW

Encoder : RUI PU(high grade)

 Controlling desktop : text panel screen(high grade)

 Electrical parts : DELIXI or CHINT



We know there are many companies you can choose, and maybe you think our price is higher than others, so I will introduce the different between our products and others. And how to choose the good machine. And why ours is higher.

 First ,our shaft is solid, low price is hollow ,the use steel pipe instead of shaft. The shaft is one of the most important about the machine, we know it main press the plate, if the shaft is low quality, it can’t bear the pressure ,so it’s easy to broke. So this is one about our high price, we ensure the quality.

Our shaft is 45# steel, quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment, and our roller is bigger than low price machine, and the treatment of roller surface is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated

Our main frame is 25# I beam, others often small than us or use the H . This frame is the main frame, it nearly bear the whole weight, so it must be strong. And we use the I beam so that running is steady and reliable.

Our middle plate is 14, low price is 10-12. The middle plate bear the shaft. If it too thin ,it can’t bear the shaft for long time. The result is broken.



our chain is 25.4mm



  our  company



our purpose :take the quality to the first,must let you satisfy ,to reach the common benefit,built long fridenly relationship for us.

so if you are interested in our products,please don't hesitate to contract me.
