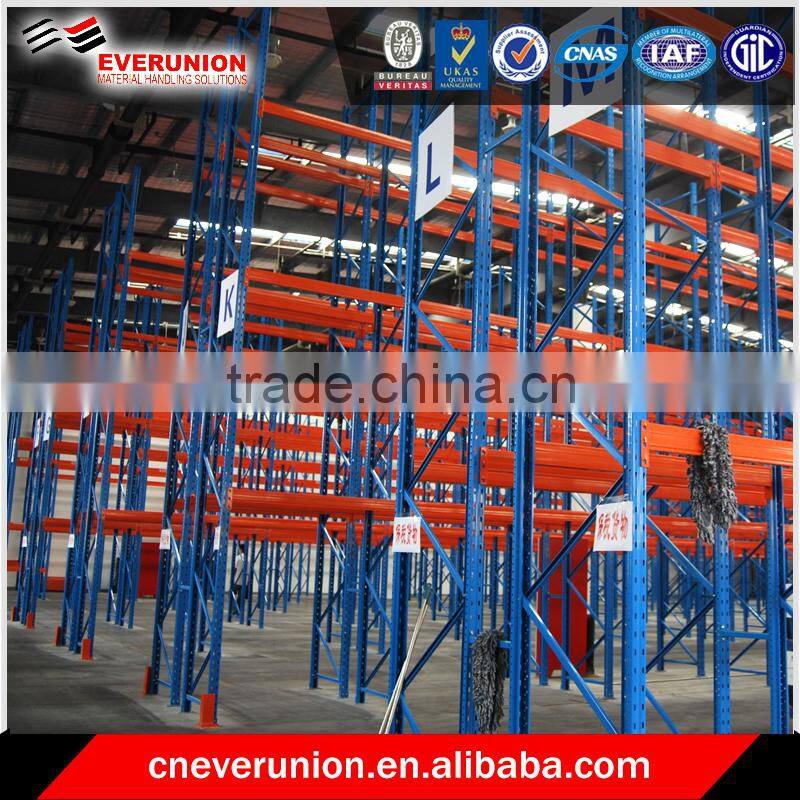

steel vinar storage system
Features of warehouse racking system:
1.The simplest and most widely used racking system.
2.Simply consist of frame and beam and some accessories.
3.Forklift can access pallets free at each pallet position.
4.Suitable for storage of heavy items with pallets and forklift .
Specification of warehouse racking system
1.Considering the size ,weight and levels of pallets, the specifications of uprights and beams are different.
2.For improving the storage space ,we could narrow the distance between racking and use special forklift ,named very narrow aisle racking system.

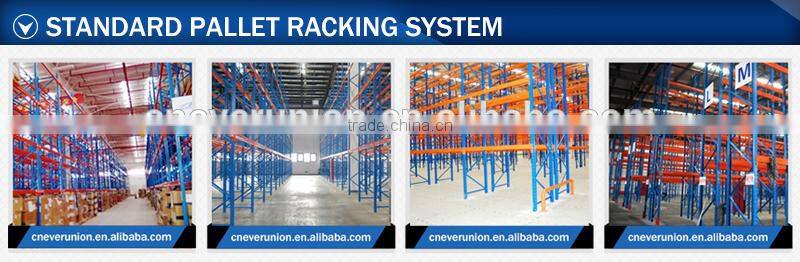

Warehouse racking system
Quick detail of warehouse racking system
Frame | Height (2-13m) | Depth (800-1200mm) |
Upright section: 90 x 70; 100 x 80; 120 x95mm | ||
Thickness: 1.8/2.0/2.3/2.5mm | ||
Beam | Length (1200-3700mm) | |
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50mm | ||
Thickness: 1.5mm | ||
Load capacity | 4Tons/Layer | |
Others | - MOQ. 3 tons - Pitch: 75 or 76mm - Delivery time: 7-20days - Payment term. T/T (30% down payment) or L/C at sight - Necessary accessories: for free. - Packing: stretch film & carton - Production capacity: 3000T/month - Main market: Australia, Europe, Asia, Central America, South America, North Africa and etc. - Available in various colors/specifications/sizes | |

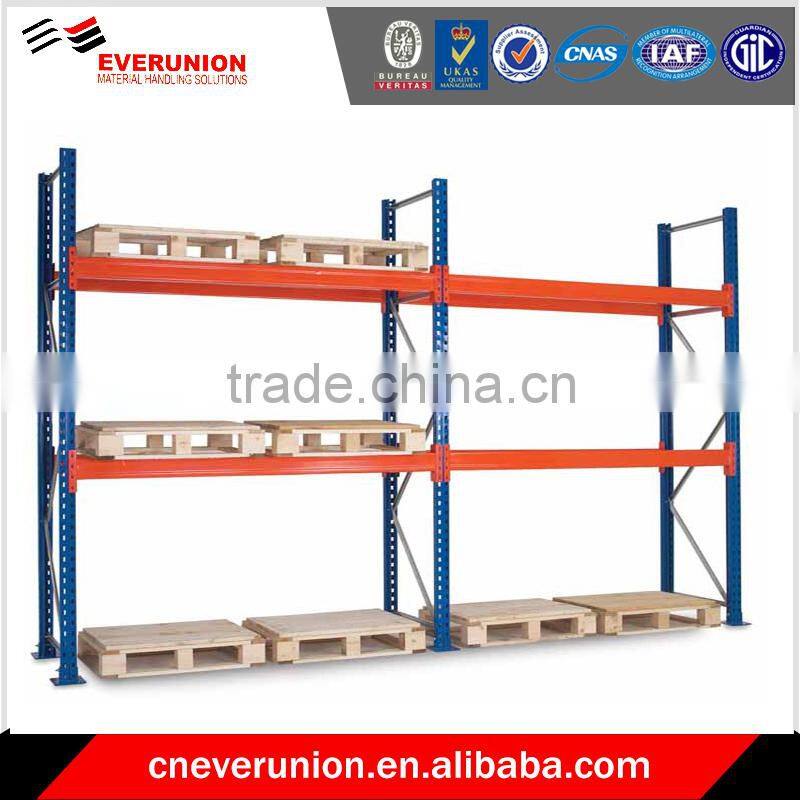

Starter unit(main rack)+ add-on unit(extension rack)

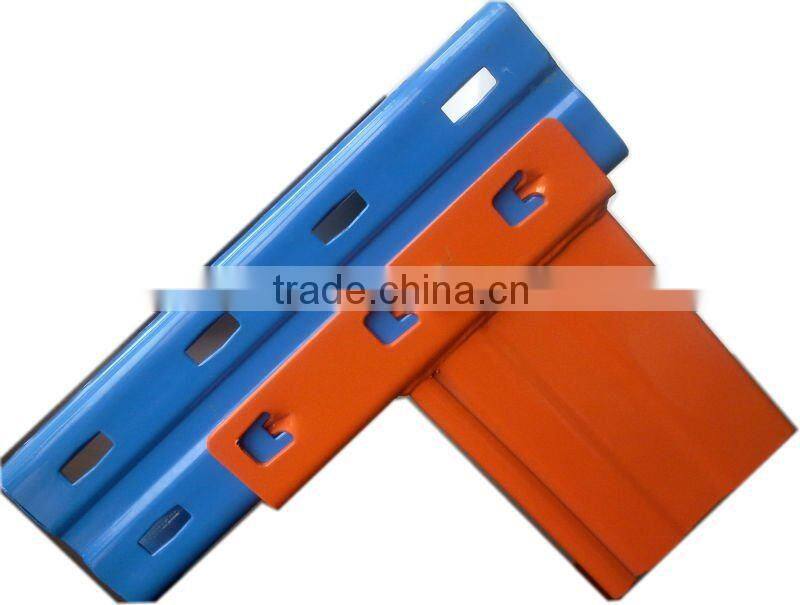

Upright and beam connector
Company Name | Shanghai Everunion Logistics Equipment Co.,Ltd |
Location | Factory is in Kunshan city,convenient transport |
Main products | Standard pallet racking and other type racks |
Main markets | Australasia,Europe,Asia,Central America,South America,North Africa ...(more than 60 Countries) |
Annual sales amount | 20 millions US dollar |
Quality | ISO9001:2008 |
Safety standard | AS4084 and FEM 10.202 |
Company Concept | Personality is Product,Standard is Quality |
What make us different from others?

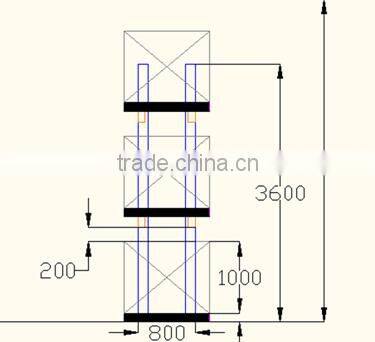

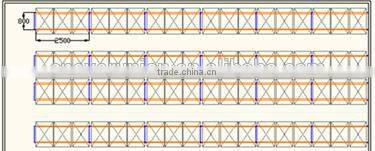

You can send us your CAD drawing, and we will give you a quick online quotation. or you just tell us the following information and we will provide the corresponding drawings for you within 48 hours.
1).Size of your warehouse (Length x Width x Clear height)
2).Size(W*D*H) & weight of pallet (after loading)
3).How many pallets in one deep you would like
4).How many levels you would like
If you have any new racking needs,pls do not hesitate to send email to us for pricing!
