LM-HD402 Smart 4x2 HDMI Matrix Support 4K MHL ARC

LM-HD402 Smart 4x2 HDMI Matrix Support 4K MHL ARC

Model:LM-HD402

Color:Black

Size: 250x27x75mm

Keyword:HDMI Matrix 4x2

LM-HD402 HDMI Matrix 4x2

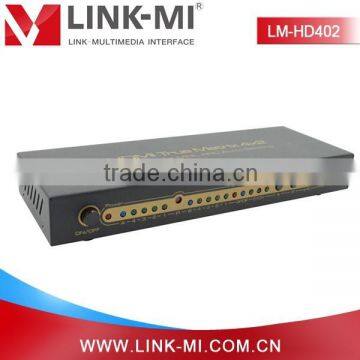

LM-HD402 HDMI Matrix 4x2 can connect four HD Source with two HD Display, which can also do extra audio output by the SPDIF port or Headphone port. It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function, which can upstream the TV audio to the amplifier.

[Specifications]

[Commodity Description]

Features:

1. One HDMI Input support MHL/HDMI double mode input, the other three HDMI input support only HDMI single mode input.

2. The output A support extra audio output by SPDIF port and 3.5mm Headphone Port.

3. HDMI to achieve the synchronization of audio signal separation. There are ADV/2.0CH /

5.1CH three kinds of audio mode options

4. Support  Full HD 1080P, Full 3D

5. Support 4K*2K resolution

6. Support deep color 30bit, 36bit, 48bit

7. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

8. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

9. Support signal reforming

10. Support input up to 15metres AWG24 HDMI standard cable length, output up to 25metres AWG24 cable length

11. Inputs can be switched with the IR remote control,also can be controlled by two switch buttons.

12. MHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.

13. MHL/HDMI working in dual mode, can reduce the number of ports

14. The SPDIF audio output format can be chose by pressing the switch key or the remote.

15. It can come back to the default the input 1 status when restarted or reset.

16. Led Status Light allow the user to know the working status easily.

17. No loss of quality

18. Installs in minutes

19. Need DC5V/2A power supply

Panel Description:

[Product Demonstration]

[Installation]

Connection and Operation:

1) To use the HDMI cable to connect the HDMI output port of the HD Source with the HDMI input port of the matrix or to use the MHL-HDMI cable to connect the smart phone MHL port with the HDMI input port of the matrix.

2)  Connect one cable from each HDMI source devices into HDMI Matrix inputs.

3)  Connect one cable from each display (monitor or projector) into the HDMI Matrix

outputs.

4) Connect audio output SPDIF or COAX with stereo Equipment.

5) Use the RMT-IR remote control port to remotely switch between sources.

6) Connect 5V power supply to the HDMI 4x2HIFI Matrix.

7) After In the TV menu settings with the MHL DEVICE synchronization, you can through the TV remote controller to control mobile device and switch signal source channel selection. But it requests the TV that can support the CEC function and mobile device can support RCP function. For details, please with TV or mobile device manufacturers to confirm. For example, the following mobile phone has passed the factory test, can support high-definition output and RCP function.

Connection Diagram:

[Packing Contents]

1) HIFI HDMI Matrix 4x2     1pcs

2) 5V power adapter             1pcs

3) Remote                               1pcs

4) User manual                      1pcs

5) MHL-MHL cable              1pcs
