Product Description

UPS Battery Management System 13s (BN13S15AT-H35)

1. Overview

This management system can achieve ATJ-BMS intelligent management (13cells). It can assure lithium battery stable status and maximize battery life.

2. Application

Li-ion and lithium polymer battery, etc rechargeable battery packs.

3. Feature:

Work voltage: +7~+56V
Operating temperature: -40℃~85℃

4. Electric Characteristic

Details					Min.	Typ.	Max	Error	Unit
Battery Gas					3.7V Li-ion battery
Battery Link					13S
Input Charging Voltage						56	60(46)	±1%	V
Input Charging Current						2			A
Output Discharging Voltage						48.1			V
Continuous Output Discharging Current						≤15			A
Ambient Condition		Operating Temperature			-20	25	60		℃
Ambient Condition		Humidity (No Water-Drop)			0%		90%		RH
Storage Condition		Temperature			-40		85		℃
Storage Condition		Humidity (No Water-Drop)			0%		90%		RH
Protection Parameters (for Individual Cell)
Over-Charge Voltage Protection (OVP)						4.25		±25mV	V
Over-Charge Voltage Protection Release (OVPR)						4.19		±25mV	V
Over-Discharge Voltage Protection (UVP)						2.70		±50mV	V
Over-Discharge Voltage Protection Release (UVPR)						3.00		±50mV	V
Over-Current Discharge Protection (OCDP)					27	30	33	200mS	A
Over-Current Charge Protection (OCCP)					5	7	8	400ms	A
Over-Current Discharge Protection Release					Release load
Short circuit current protection					Enable
Short circuit current protection delay time						100	450	±100	uS
Short circuit protection Release					Release load
Temperature protection	High temperature		65	±5℃	Low temperature	-20		±5℃	℃
Normal current consumption					≤1000				uA
Sleep model					≤100				uA
Main loop electrify resistance(MOS-R_DS)					≤30				mΩ
PCBA Size					70×50×8				mm

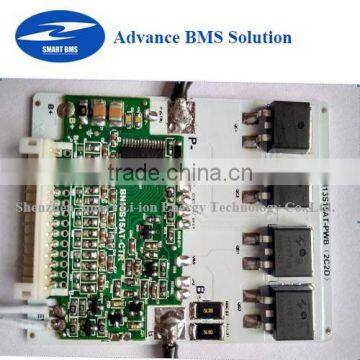

5. Product Image:

Packaging & Shipping

Air cushion film packing + Foam filling + Double carton

Marking mode : Marking on the outer packing box

Shipping: TNT,FedEx,UPS,by plane,by sea

Our Services

Fast reply your inquiry in 24 office working hours; OEM/ODM customized; design and produce the BMS and PCM as customer request

Our goal: to do first-class intelligent BSMS (lithium battery intelligent management system) solution provider
