STC Series STC Series 10kw alternator
- 4000 Piece / Pieces per Month
- fuzhou
- T/T
Product Details
| Place of Origin: | Fujian, China | Brand Name: | UDE;UDE STAR; | Model Number: | STC |
| Output Type: | AC Three Phase | Speed: | 1500 | Frequency: | 50 |
| Rated Power: | 3KW-75KW | Rated Voltage: | 400/230 | Rated Current: | 5.4A-135A |
Product Description
Specifications
STC Series STC Series 10kw alternatoretitive price
2.good performance
3.quick delivery time

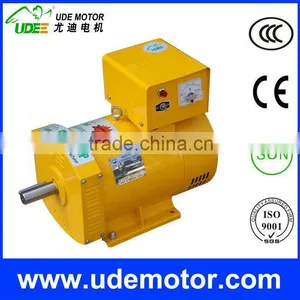

STC Series STC Series 10kw alternator
This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage s generator according to the customer s request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0-100%cos1.0-0.8,they still upply constantant voltage.After sudden change(increase or decease)pf load.The generators will soon return to their normal working state,without any tarting devices,the generator can start and unloaded squirrel cage Induction motor.
