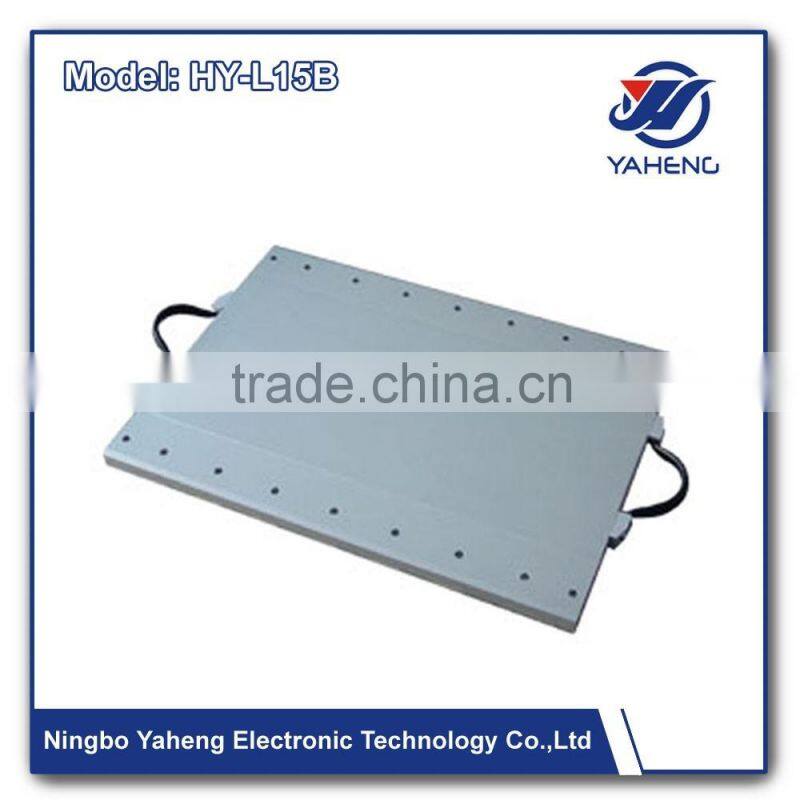

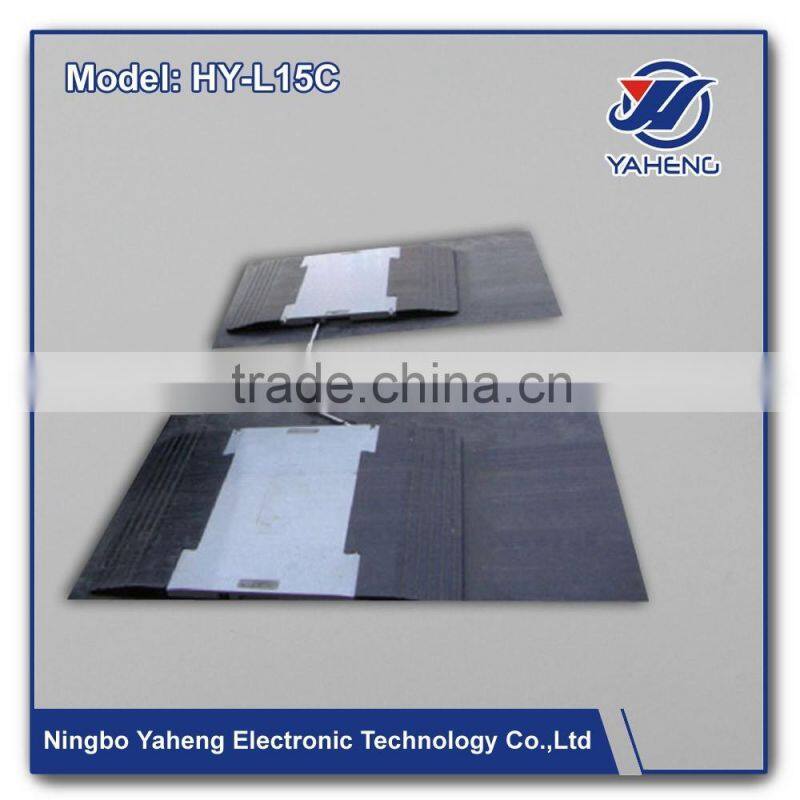

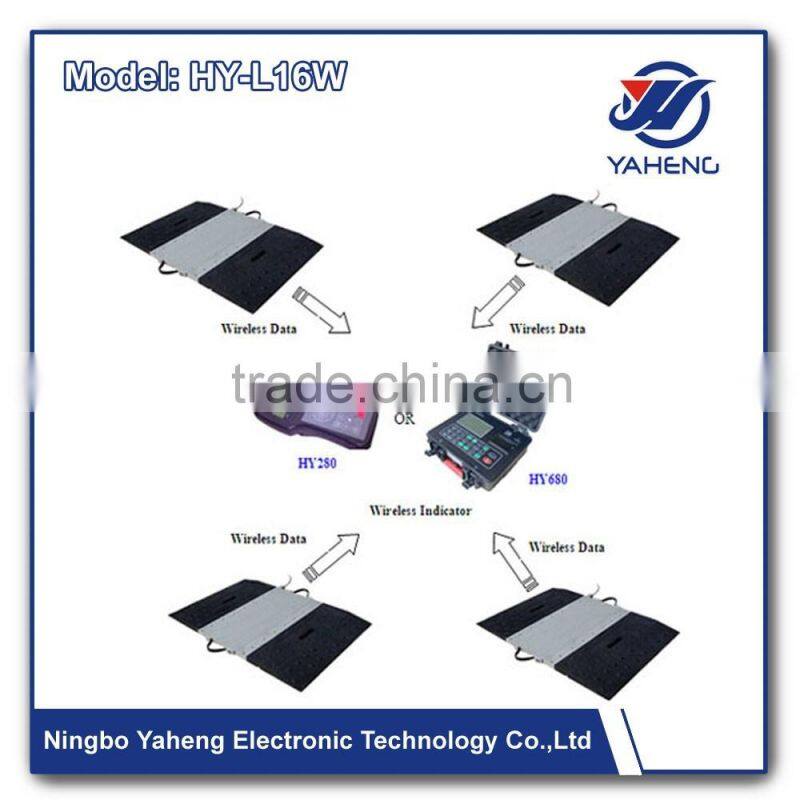

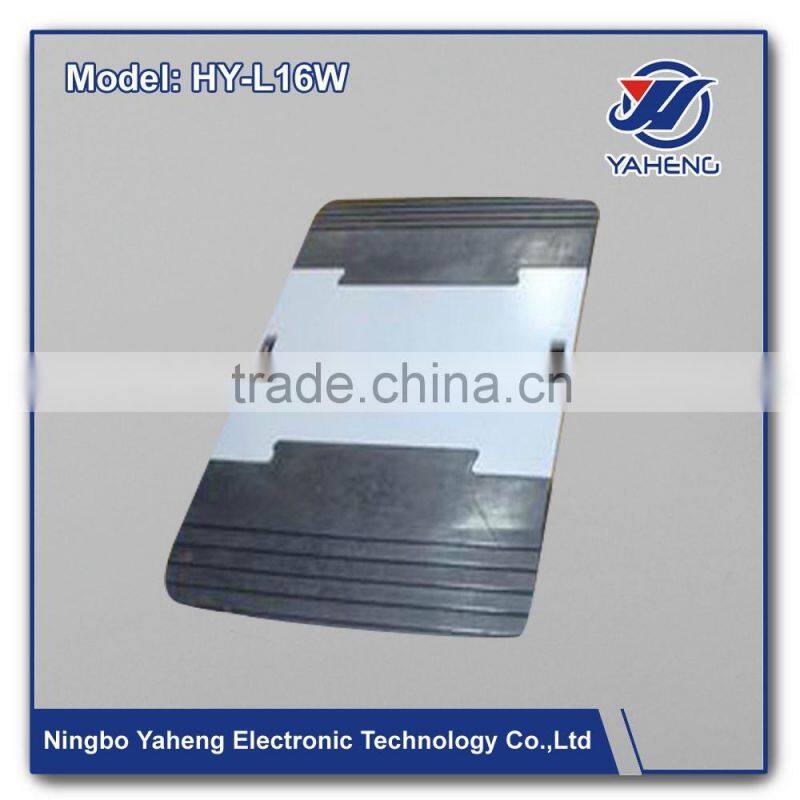

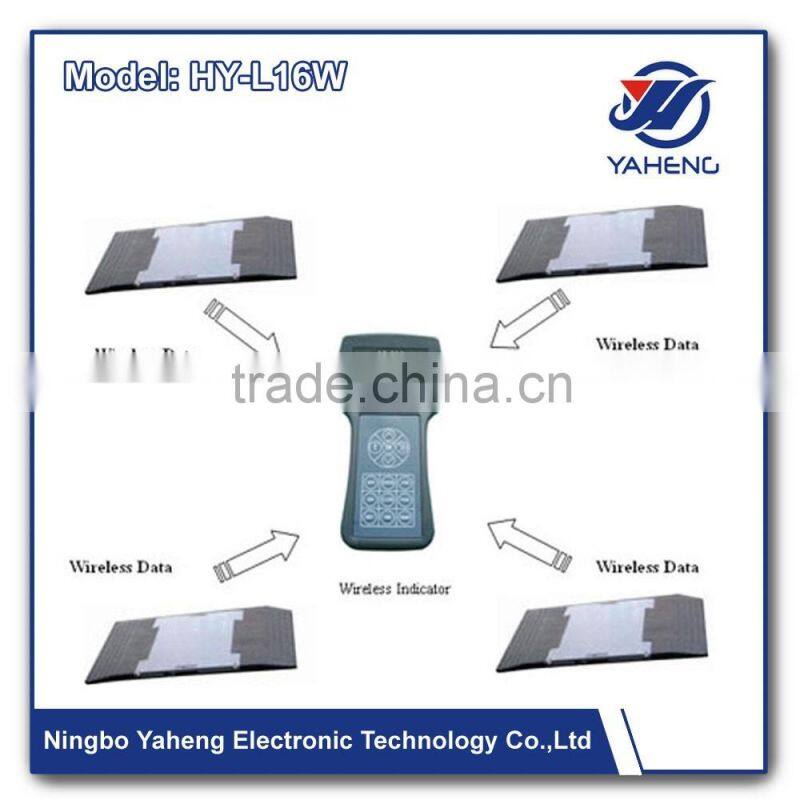

Help CenterStatic And Dynamic Portable Axle Weighing Truck Scale/Cheapest 10T/15T Pad Portable Truck Wireless Axle Vehicle Weighing Scales
Related Products
-
Portable Cars Axle Weighing Scale 10 Ton Portable Wireless Truck Axle Scale Good Quality Portable Axle Weighing ScalesUS$ 2,800 - 5,000MOQ: 1 Set -
Industry Axle Scale With Aluminum Pad 15t per Pad Portable Truck Axle Scale Portable Axle 30 Ton Weighing Scales for VehicleUS$ 2,500 - 4,800MOQ: 1 Set
-
HYL16 Portable Wheel Loader Weighing Pad Axle Scale or Car Axle Scale Hanging ScaleUS$ 3,500 - 8,900MOQ: 1 Set
-
HYL16 Weighing Pads Wireless Truck Scale Electronic Portable Axle Pad With Auto Weight Scale Scale With Computer InterfaceUS$ 1,800 - 7,500MOQ: 1 Set
-
Popular HYL15CW Wireless Portable Axle Vehicle Weighing Pads Hanging Scale Good Quality Hot SellingUS$ 1,500 - 5,000MOQ: 1 Set
Product Description
1.Light in weight, and convenient transportation.
2.Integral flat plate construction, high frequency in dynamic response,and high precision.
3.Applied special treatment, offering high protection class that are suitable for all kinds of environments.
4.Adopted special material in aero-industry, with good anti-over loading ability.
5.Assembled with rubber handles, avoided destroying of the handles
Output sensitivity (mV/V) | 1±0.2 | Temperature, compensated (°C) | -10~+50 |
Combined error (%ld) | 0.2 | Temperature, operating (°C) | -40~+80 |
Non-linearity (%ld) | 0.2 | Excitation, recommended (V) | 9~15DC |
Repeatability (%ld) | 0.1 | Excitation, max.(V) | 20DC |
Input resistance (Ω) | 3120±40 | Safe overload (%FS) | 120 |
Ouput Resistance (Ω) | 2800±10 | Ultimate overload (%FS) | 150 |
Insulation resistance(MΩ) | ≥5000(100VDC) | Protection class | IP66 |
Zero balance (%FS) | 4~10%FS | Cable Spec. | 4-wire shield cable |
Temperature effect on sensitivity (%FS/10°C ) | 0.1 | Max. load for single point (t) | 10 |
Temperature effect on zero (%FS/10°C) | 0.1 | Rated capacity (t) | 15 |
| Connections: Red Input(+) Black Input(-) Green Output(+) White Output(-) | |||
Product Description
--Pay by T/T, LC
-- Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse paypal fee when you choose it.
-- Loading Port: ShangHai or NingBo, China
-- Sample Delivery: 7-10days.
FREE SAMPLE / FREIGHT COLLECT
-- Mass Production Delivery: 20 -50days after sample confirmation
-- Samples are available within 15~20 working days.
FREE SAMPLE / FREIGHT COLLECT
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
