NDS Digital Display Material Torsion Testing Machine/Torsion Tester

FOB Price

USD $5,000 - $6,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Shandong, China	Brand Name:	HST	Model Number:	NDS
Power:	Electronic	Usage:	Torsion Tester

1. Torsion Testing Machine
2.Digital Display
3.CE Certificate
4.Max Dynamic Test Torque N/M:500

NDS-500 Digital Display Material Torsion Testing Machine

1.Application:

Digital display material torsion testing machine is designed for conducting torsion

and twist tests on various metal wires, tubes and steel materials.

Torque measurement is by torque transducer while angle of twist is measured by

photoelectrical coder.Torque range can be adjusted and torque is applied to

specimen by servo motor and cycloid speed reducer.

This tester is mainly applied in the research department, all kinds of institutions and

industrial and mining enterprises material experiment of various materials used for

measuring the mechanical properties by torsion.

2.Technical Parameter:

Model	NDS-500	NDS-1000	NDS-2000	NDS-3000	NDS-5000
Max Dynamic Test Torque	500 N/M	1000 N/M	2000 N/M	3000 N/M	5000 N/M
Test Level	1 Class
Test Range	2%-100%FS
Torque Force Value Relative Error	≤±1%
Torque Speed Relative Error	≤±1%
Force Resolution	1/50000
Torque Angle Measuring Relative Errors	≤±1%
Torque Angle Resolution(°)	0.05-999.9°/min
Two Chuck Maximum Distance	300mm	550mm		600mm	650mm
Dimension (mm)	12003901169	14203901169		14703901200	19246901512
Weight (KG)	340	580		860	2150
Power Supply	0.5kW/ AC220V±10%	1kW/ AC220V±10%		1.5kW/ AC220V±10%	5kW/ AC220V±10%

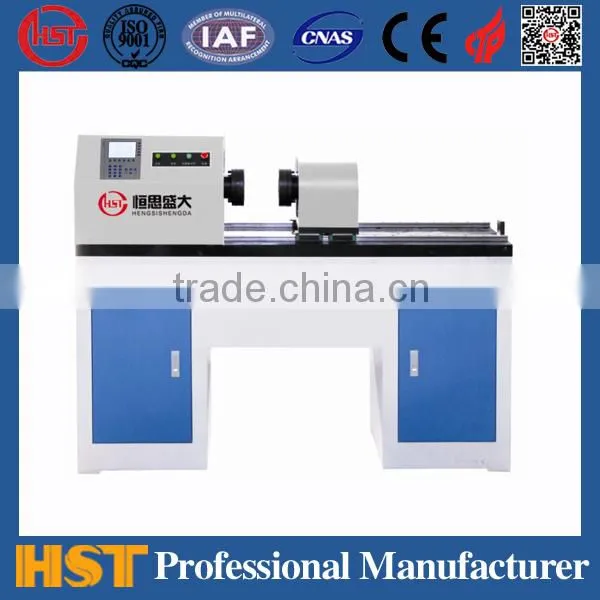

3.Torsion Testing Machine:

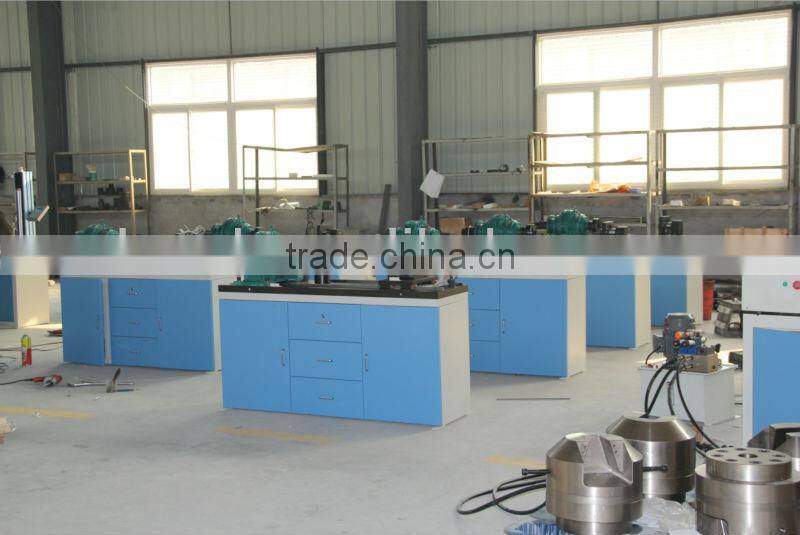

4.Our Factory Show:

5.CE Certificate:
