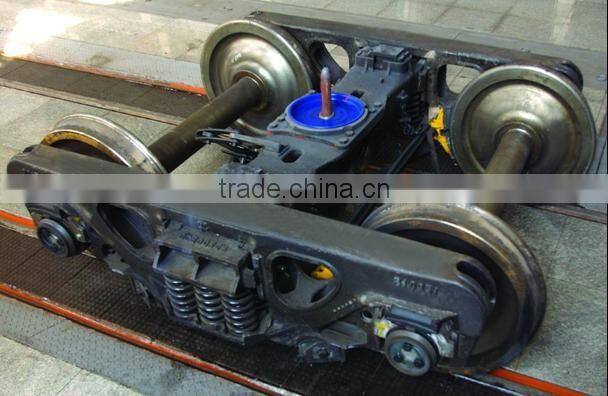

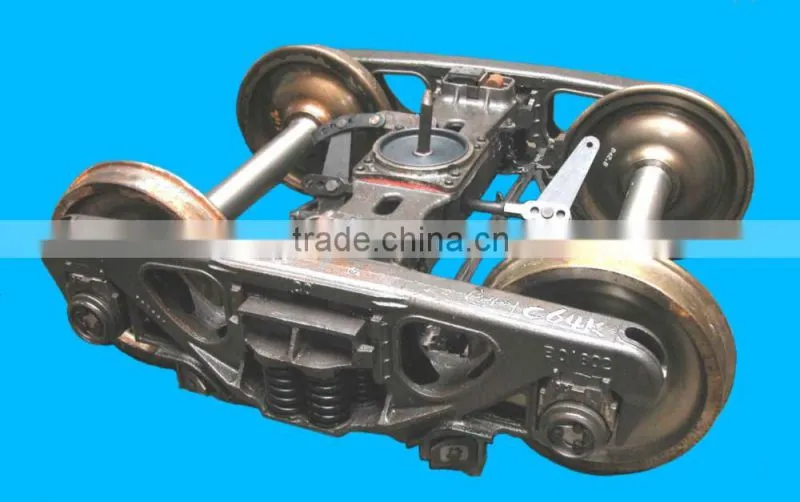

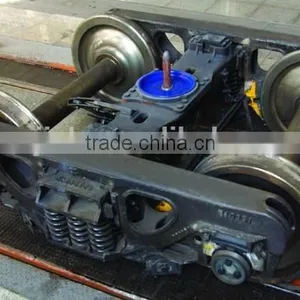

k6 railway train bogie, railway bogie for freight train supplier from china

k6 railway train bogie, railway bogie for freight train supplier from china

Specification

Type: G11                                            Gauge: 1435 standard

Bogie Type: K6 or K5                      Loading capacity: 70t

Tare weight: less than 23.8t        Tare-to-load ratio: 0.33

Speed: 120 km/h                             Volume size:  77m3

m3 per ton: 1.1                                Internal width of wagon body at steel jointing channel: 2792mm

Load per meter of track: 6.69t/m Braking ratio: empty 61.3% and loaded 34%

Size: length of wagon 13976mm, fixed distance of wagon 9210mm, Max width of wagon 3243mm,Max height of wagon 3095mm, Internal length/widen/height size 13000mm/2892mm/2050mm,height from rail top to floor top when empty 1082mm,height from top of rail to coupler center when empty 800mm,

Air brake type: 120 control valve and standard chain type hand brake, Z8A roller bearing bogie,

Min radius of curvature negotiated: 145m,

Clearance limit: in conformance with Chinese National Standard GB146.1-1983 《Moving Dimensions for Locomotives and Rolling Stocks on standard gauge》
