Wx118 1w single-turn wirewound 50k rotary potentiometer
USD $0.9 - $1.2
/ Piece
50 Pieces(Min.Order)
- 5000000 Piece / Pieces per Month
- Shenzheng Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
wxd3590 6.3mm round and flat shaft wirewound 10 turn potentiometer
-
Wxd3590 aluminum shaft and set 6mm multi turn trim potentiometers
-
Wx118 200V 1w carbon film potentiometer wirewound resistor factory
-
Sichuan Qixing Bonens 1k 5k 10k wxd3590 wirewound rotary rheostat
-
WX118 1w 1 turn wirewound wx118 5k potentiometer
-
Bonens wxd3590 wirewound 6mm multi turn trim potentiometers
Product Details
| Place of Origin: | Sichuan, China | Brand Name: | BONENS | Model Number: | WX118 |
| Type: | Rotary Potentiometer | Technology: | Wirewound | Resistance: | 100Ω~22KΩ |
| Resistance Tolerance: | ±10% | Rated Power: | 1W(40℃), 1W | Max. Operating Voltage: | 200V |
| Operating Temperature: | -55℃-+125℃ |
Product Description
Wx118 1w single-turn wirewound 50k rotary potentiometer

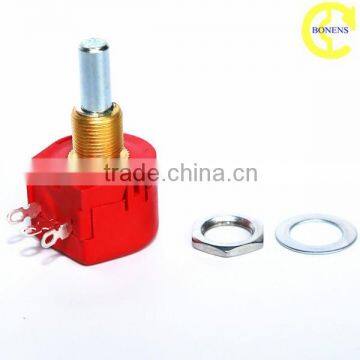

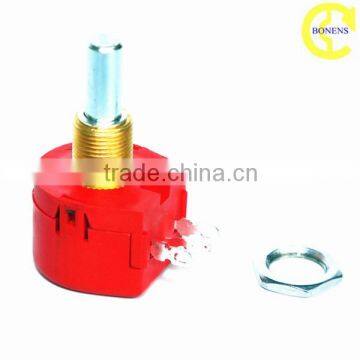

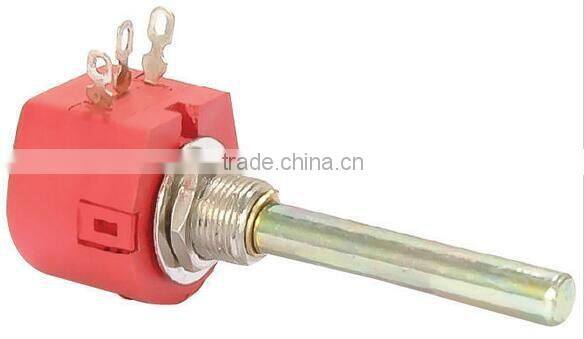

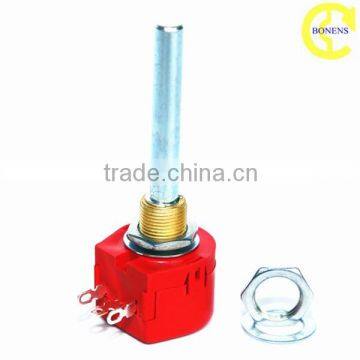

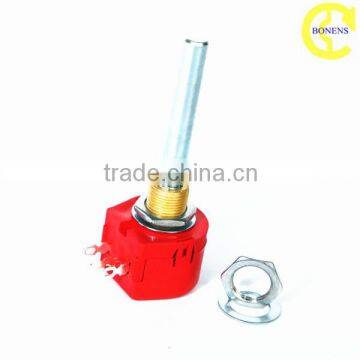

♦ Pictures:
| |

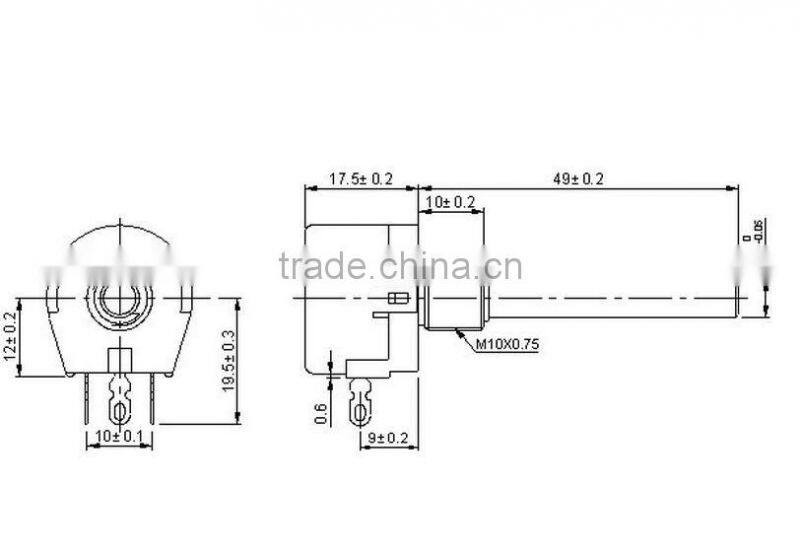

♦ Drawing:
| |
| ♦ Wx118 data sheet: | |
| Model | WX118 |
| Standard Resist. Range | 100Ω~22kΩ |
| Power Ratings | 1W(40°C) |
| Maximum Working Voltage | 200V |
| Maximum Wiper Current | 100mA |
| Operating Temp. Range | -55°C~+125°C |
| Resistance Tolerance | ±10% |
| Effective Electrical Travel | mech.285°±5° elektr.265°±5° |
| End Resistance | 2Ωmax |
| Dielectric Strength (Room Conditions) | 1000V AC |
| Insulation Resistance | 1000MΩmin.(at 500V DC) |
| Shaft Torque | 3.5~100mN.m |
| Rotational Life | 5000cycles without discontinuity |
| Temperature Coefficient | ±100ppm/°C |
♦ Package:
| |
♦ Other main products:
| |
| | |

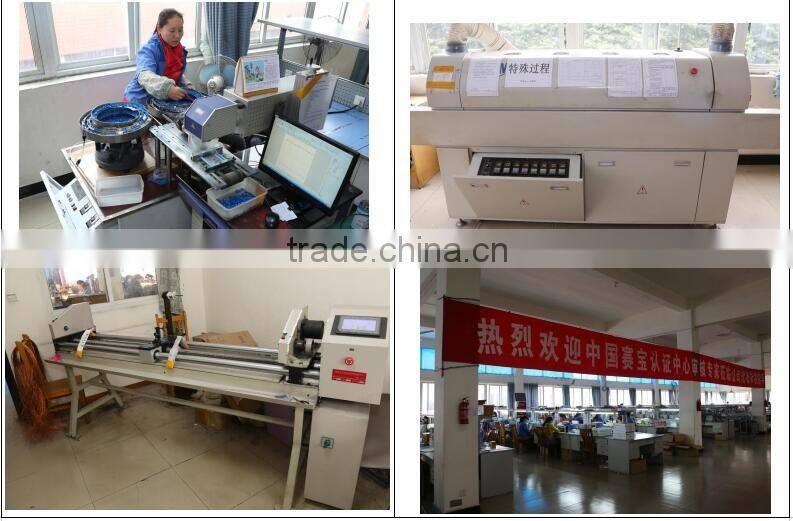

♦ Production line:
| |

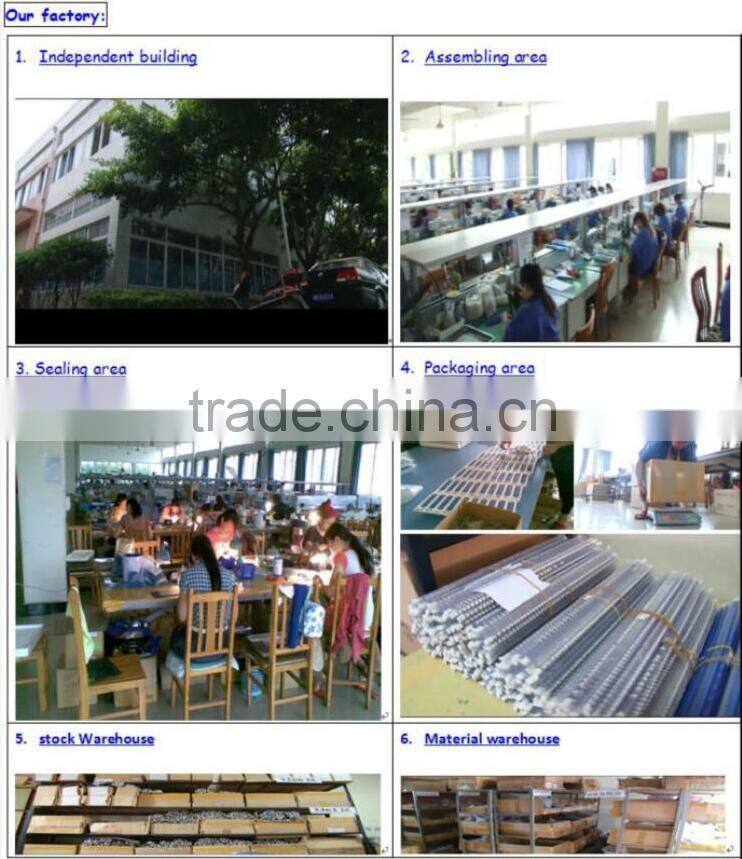

♦ Factory:
| |
♦ Certificates:
| |
♦ For more informations,pls contact: Atten:Gina.zhou Skype:Gina.zhou12 QQ:512351005 WhatsApp:+86-180160662198 11 years experienced factory, 8 years of Alibaba Gold Supplier
| |
Looking forward to your inquiry.......... | |
