Home > Products > BACKHOE LOADER > Excavator Loader Chinese Manufacturer Brand Mountain Raise NEW MR30-25 backhoe loader
Excavator Loader Chinese Manufacturer Brand Mountain Raise NEW MR30-25 backhoe loader
- 1 Unit / Units per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Brand Name: | MountainRaise | Model Number: | MR30-25 |
Place of Origin: | Shandong, China | Type: | Backhoe Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 6239x2268x3760 mm | Rated Load: | 2500kg/100kg | Certification: | ISO |
Warranty: | 1 Year | After-sales Service Provided: | Overseas service center available |
Product Description

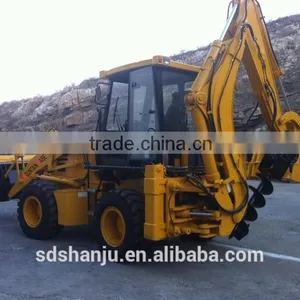

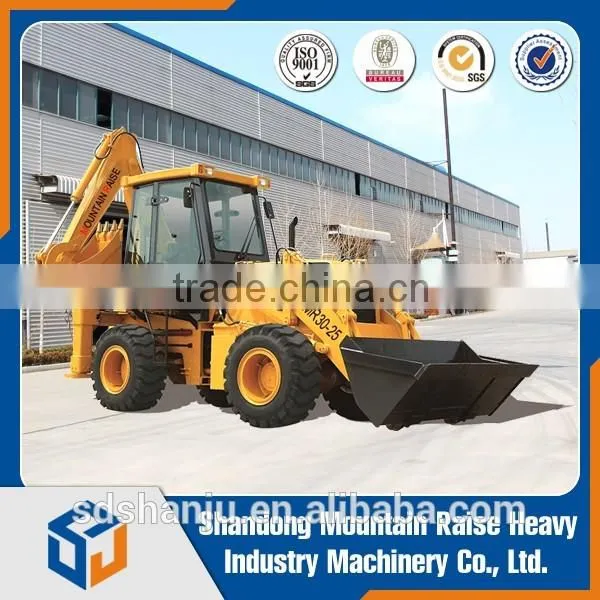

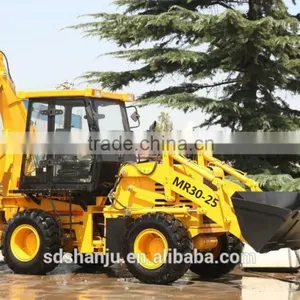

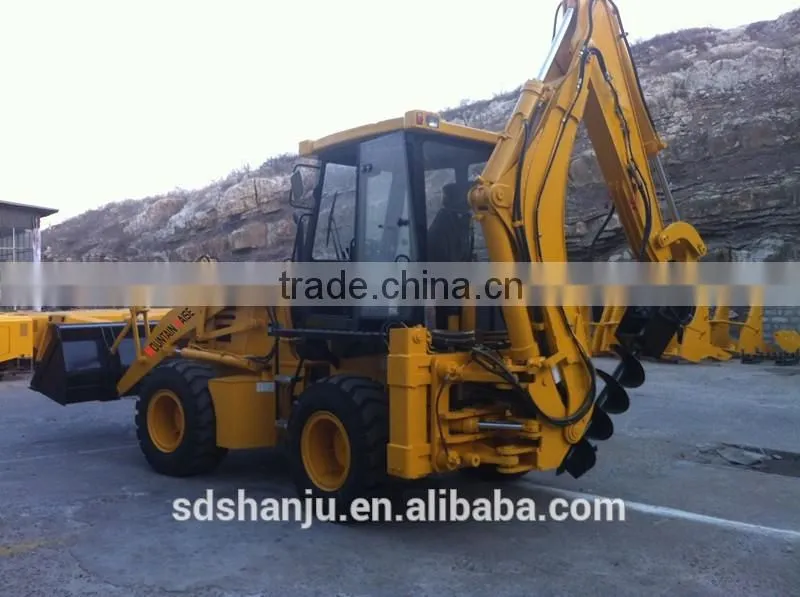

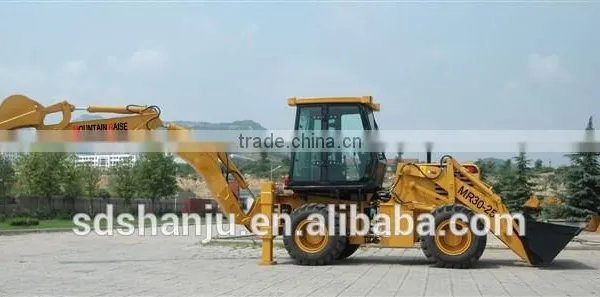

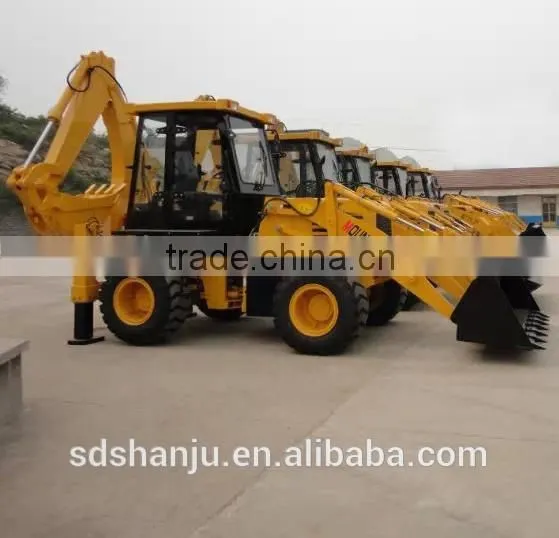

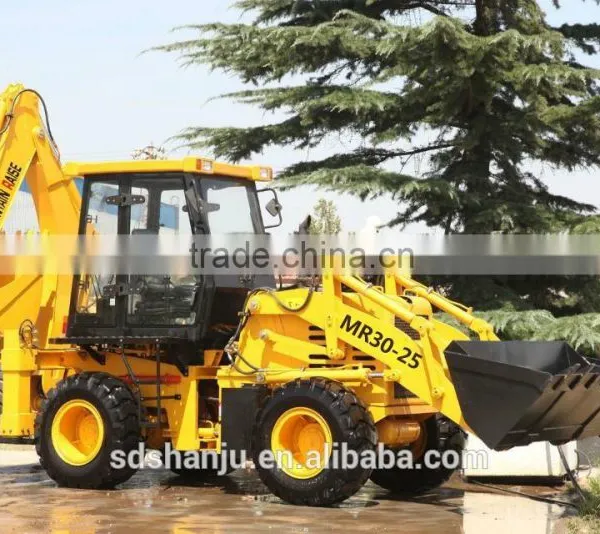

Chinese Manufacturer Brand Mountain Raise NEW MR30-25 backhoe loader
Backhoe loader MR30-25, Rated load 2500kg and 100kg, with YTR4108G60-1, 55kw engine, easy operating, higher quality and cheaper price.
Main specifications
Main Specifications |
|
Overall Dimension | 6239x2268x3760mm |
Operate weight | 7800kgs |
Wheelbase | 2250mm |
Dumping distance | 1050mm |
Max. Dumping Height | 2742mm |
Dumping Distance of Bucket | 1062mm |
Front Bucket Capacity | 1.0m³ |
Front Bucket Load | 2500kg |
Tread Width | 1640mm |
Mini Ground Clearance | 300mm |
Departure Angle | 19° |
Max. Digging Depth | 4503mm |
Back Bucket Capacity | 0.3m³ |
Back Bucket Load | 100kg |
Breakout Force | 38kN |
Max.Traction Force | 39KN |
Rotary Angel of Bucket | 190° |
Hub Reduction Type | One-stage Hub Reduction |
Engine |
|
Model | YTR4108G60-1 |
Rated Power | 55kw |
Pattern | Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chambe |
Cylinder Number-Inner Diameter-Stroke | 4-108×120 |
Rated Rotational Speed | 2400r/min |
Min. Fuel Consumption | ≤216g/km.h |
Max. Torque | ≥261.7N.M/1800r/min |
Displacement | 4.4L |
Transmisson System |
|
Type | Counter Shaft Power-shift |
Clutch Pilot Oil Pressure | 1373Kpa—1569 Kpa |
Gear Number | Two Advance Gears, Two Reverse Gears |
Max. Speed | 22Km/h |
Steering System |
|
Steering Gear Model | BZZ5-250 |
Steering Angle | ±36° |
Min. Turning Radius | 5018mm |
System Pressure | 12Mpa |
Torque Converter |
|
Model | YJ280 |
Type | Single-stage, Single-phase Three-element |
Peak Efficiency | 84.40% |
Inlet Pressure | 0.4Mpa—0.55 Mpa |
Outer Pressure | 1.2Mpa—1.5 Mpa |
Cooling Type | Oil Cold Pressure Circulation |
Drive Axle |
|
Manufacturer | Feicheng Axle Plant |
Main Drive Type | Double-stage Reduction Type |
Hub Reduction Type | One-stage Hub Reduction |
Rated Axle Load | 7.5t |
Braking System |
|
Parking Brake | Operating Force to Exert Brake,Manual Operating Force to Relieve Brake |
Service Brake | Air-over-oil Caliper Disc Brake, External, Self-regulation,Self-balancing |
Tyre Size |
|
Specification | 16/70-20 |
Air Pressure of Front Tyre | 0.22 Mpa |
Air Pressure of Rear Tyre | 0.22 Mpa |
Hydraulic System |
|
Breakout Force of Bucket | 46.5KN |
Breakout Force of Bucket Rod | 31KN |
Lifting Time of Bucket | 5.4S |
Fall Time of Bucket | 3.1S |
Dumping Time of Bucket | 2.0S |
Shandong Mountain Raise Heavy Industry Machinery Co.,LTD located in one of the nine states of
ancient China-Qingzhou City, Shandong Province, owning a professional maintenance team with
senior technicians, ready to provide support services to users and dealers. Select regular manufacturers
for supporting spare parts, bridge, transmissions and other main parts designed and produced by ourselves.
Currently the company has successfully developed MR912, MR916, MR918, MR920, MR922, MR926,
MR928, MR930, MR936, MR650B etc. more than ten series loaders, diesel forklift trucks, four-wheel
rough terrain lift trucks.
The company's sales and service network throughout the whole country 26 provinces, municipalities
and autonomous regions, and export to of Belgium, Germany, Britain, France, the Netherlands, Finland, Syria, Sweden, Kazakhstan, South Africa, Egypt, Mexico, Australia and other European and
international market.
Welcome new and old customers to visit our factory negotiate business!
1. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, etc.
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge, transmissions, and many parts designed and produced by ourselves, always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce production costs to ensure that our price is competitive.
3)Service Team: First, our sales managers are working 24 hours one day, ready to answer your questions at any time. Second, professional maintenance team with
senior technicians, ready to provide support services to users and dealers. Most problems can be solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with 10 working days in factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without “soft clauses” can be accepted.
4.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
5.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
6. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust our price based on two situations:
1)The rate of USD
2)The price of material
Other questions, please contact our sales managers.
