2014 new style cutting and engraving 3d cnc wood carving router 1325 DWIN from china

Specifications

2mm carbon steel CO2 laser cutting machine
1.fast speed high efficiency
2.easy to operate
3.mainly for cutting

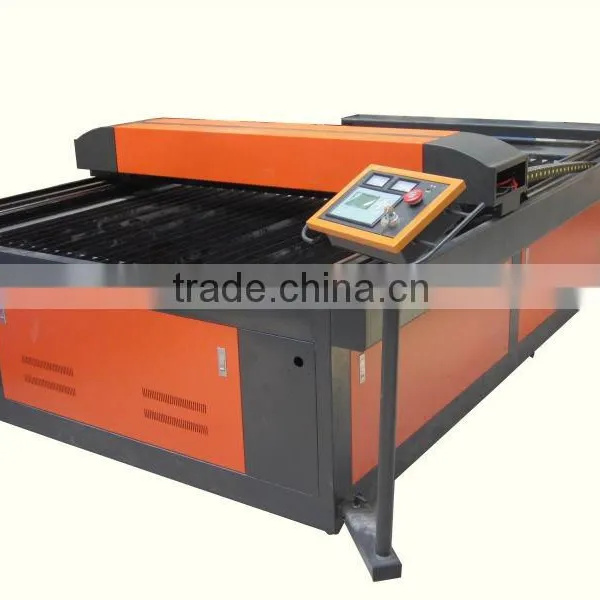

DW1325 2mm carbon steel CO2 laser cutting machine



Features:

This machine is the newest design with the GSI 300W CO2 laser tube,can cut the metal materials,such as the stainless steel,carbon steel, also used for cutting the non-metal materials, such as acrylic,wood,leather,etc.This machine with the specifical laser head can get the best cutting effect.

 Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision,  less waste, high efficiency ,Optional double laser heads cutting machine so that the exponential growth efficiency

 Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.

 Operational speed, laser energy real-time tunable, and very easy for customers to operate

Cutting energy automatic compensation function, cutting greatly improved results

Application materials:

Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.

Application industries:

steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries

Machine structure:

Operate Panel:

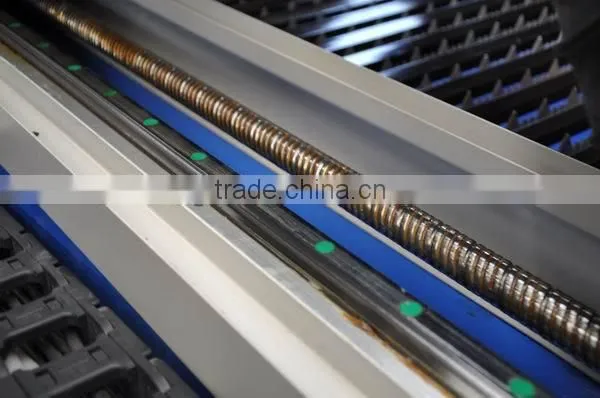

Lead Screw:

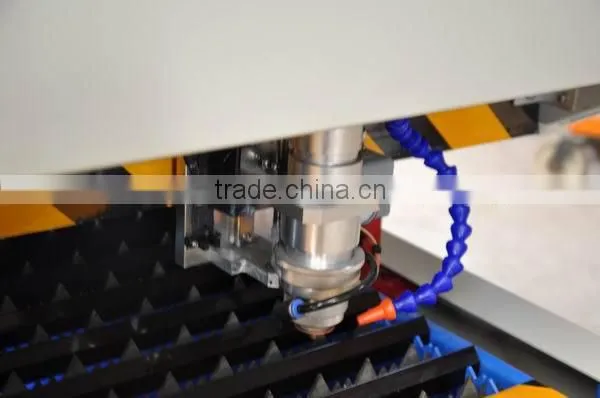

Laser Head

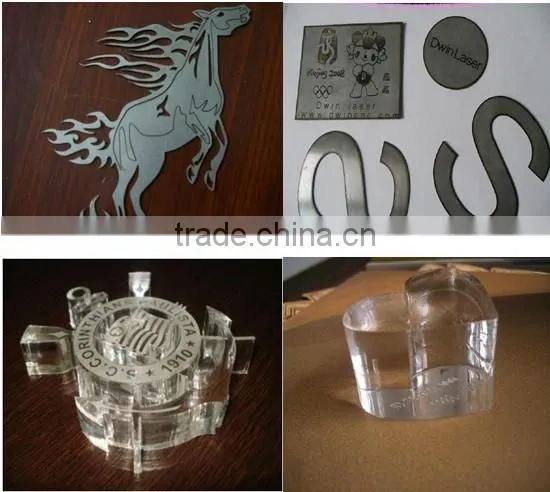

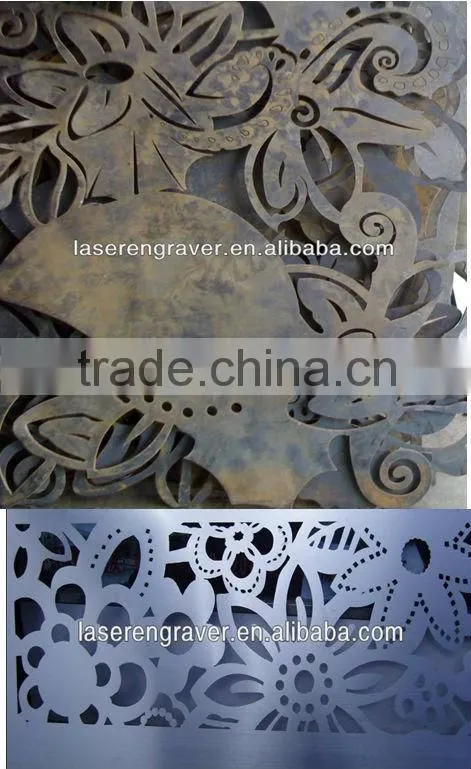

Samples:







Technical parameter:



Model	DW1325
Working area	130cm*250cm
Laser power	GSI300W import from England
Laser type	CO2 sealed laser tube,water-cooled
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Power supply	220V±10% /50HZ , 110V±10%//60HZ
Graphic format supported	BMP, PLT, DST, DXF, AI,CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Laser Output Control	1-100% software setting
Highest Scanning Precision	2500DPI
Resolution ratio	<0.01mm
Location precision	<0.01mm
Working temperature	5°C-40°C
Operating humidity	5%-95%(without condensed water)
Equipment Dimension	174cm*300cm*100cm/64in*94in*39in



Standard configurition:

1, USB port

2, GSI Tube

3, Chiller LW-16&air pump

4,Japan Panasonic Sanyo servo motor(high precison)

5,Taiwan lead screw&linear guide

6,Y axis DUAL ball screw

7, Auto-adjuster (Charge Sensing)

8, German copy laser head

9 ,Z axis automatic tracking

10, American Imported 26 mirrors &focus(water colled)

Cutting speed:

Thickness	Speed
1mm stainless	1800mm/min
1.5mm stainless	1000-1200mm/min
1mm carbon steel	1800mm/min
1.5mmcarbon steel	1000-1200mm/min
10mm acrylic	400mm/min
20mm acrylic	90-200mm/min
5mm MDF board	1000mm/min
10mm MDF Board	300-500mm/min
18mm MDF board	90-150mm/min

  what laser power should I choose?

 This depends on the material & the maxi cut thickness.

 The bigger the power is, the deeper it can cut, the cut speed is faster.

 Usually, 60W can cut acrylic 8mm

 80W cut acrylic 12-15mm

 100W cut acrylic 18mm

150W cut acrylic 30mm

What other materials can I work on?

A CO2-laser can be used for engraving or etching a wide range of other materials, such as wood, glass, rubber, acrylic and plexiglass, plastics, leather, paper, textiles or foams.

 How long is the delivery time?

 For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

What’s the guarantee, in case the machine breaks down?

 For the GSI 300W laser tube we give the warranty for 18 months, and the machine has 18 months guarantee too. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

      If you have any question , please kindly contact me!
