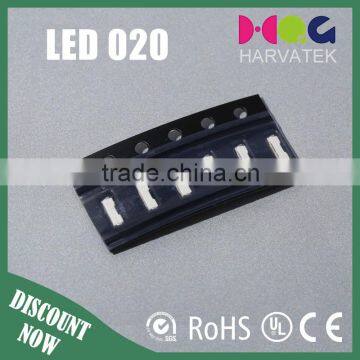

Ultra bright 3.8x0.6x1.2mm side view 020 blue flashing smd led
1. Features |
l Package ( L/W/H ) : 3.8*0.6*1.2mm l Color : Ultra High Bright Blue l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |
Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 90 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 70 | mA | |
DC Forward Current | IF | 30 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
ESD CLASS | ESD | 2000 | V | |
2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 020 smd led and free samples, click the "send" below to contact us!
