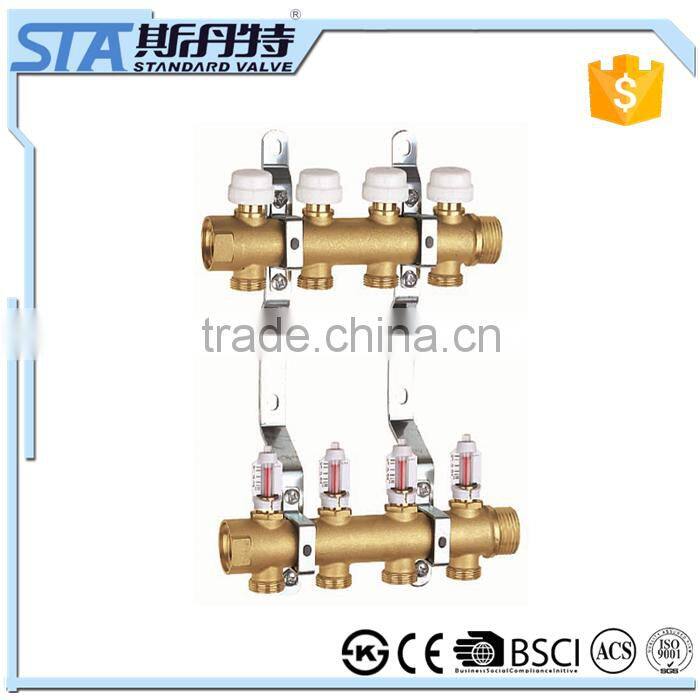

ART.5001 Manufacturer standard 4 ways oil water separator underfloor heating system 10bar brass intake manifold with flowmeter

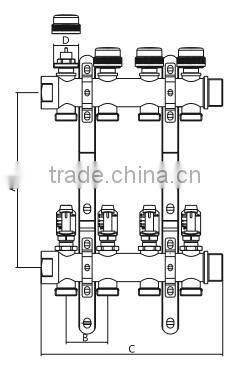

| Drawing No. | DN | A | B | C | D | Piece/carton |
6154250 | 1"x1"-2 | 210 | 50 | 118 | M30x1.5 | 1 |
| 6154350 | 1"x1"-3 | 210 | 50 | 168 | M30x1.5 | 1 |
| 6154450 | 1"x1"-4 | 210 | 50 | 218 | M30x1.5 | 1 |
| 6154550 | 1"x1"-5 | 210 | 50 | 268 | M30x1.5 | 1 |
| 6154650 | 1"x1"-6 | 210 | 50 | 318 | M30x1.5 | 1 |
| 6154750 | 1"x1"-7 | 210 | 50 | 368 | M30x1.5 | 1 |
| 6154850 | 1"x1"-8 | 210 | 50 | 418 | M30x1.5 | 1 |
You may like:
We can accept customer's packing requirement.
1. Q:Which brass material do you have?
A: Lead Free: CW509L CW511L. Common:DZR CW602N , CW617N, C3604 H59-1 H28-2A.
2. Q:How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 45-50 days if the goods won't be in stock, it is according to quantity.
3. Q: Can be customized?
A:It’s OK. After the drawing, sample and mould are sent to us from you, we can develop for you.
4. Q:How long is the warranty time?
A: 10 Years.
5. Q: What’s your payment term?
A:1. T/T.30% as deposit before production, the balance before shipment.
2. L/C at sight (for large quantity order) 3. 100% T/T in advance.
