Home > Products > Check Valve > Cast Iron Silent Check Valve provides no water hammer

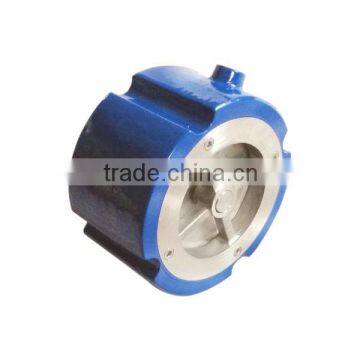

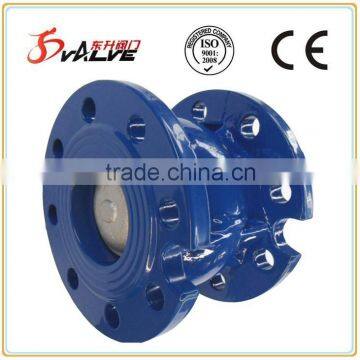

Cast Iron Silent Check Valve provides no water hammer
- 5000 Piece / Pieces per Month
- Qingdao
- T/T
-
hydraulic Noise Elimination Check Valve
-
Non-return Valves, swing check, cast iron, comply to DIN 2533
-
Single Plate Swing Check Valve, American Standard Class125/Class150,cast steel,stainless steel
-
Stainless Steel Disk Check Valve
-
Stainless Steel Single Door Check Valve PN40
-
Stainless Steel Disco Check Valve(Size 125-300)
Product Details
| Standard or Nonstandard: | Standard | Structure: | Other, Check, Check Disk valve | Pressure: | Low Pressure |
| Power: | Hydraulic | Material: | Casting | Temperature of Media: | Medium Temperature |
| Media: | Water | Port Size: | DN50~DN300 | Place of Origin: | Shandong, China |
| Model Number: | H41X-16 | Brand Name: | DS | Application: | General |
Product Description
1)Feature:
Silent lift check valve is suitable for water supply and drainage pipeline. It has small volume, light weight, small resistance, long service life etc.
2)MATERIAL LIST:
Pos | Part | Material |
1 | Guide | Ductile Iron GGG40 |
2 | Body | Cast lron GG25 |
3 | GUIDING STEM | Brass Cuzn40Pb2 |
4 | Spring | Stainless steel |
5 | Seal | NBR,EPDM,VITON |
6 | Disc | Ductile Iron GGG40 |
Application:
PN Nominal pressure | 1.6Mba |
Sealing test pressure | 1.76Mba |
Strength test pressure | 2.4Mba |
Suitable temperature | EPDM:-10—+120°C NBR:-10—+80°C VITON:-23—+150°C SILICON:-50—+200°C |
Medium | Fresh water ,sea water ,waste water,food stuff,steam,all kinds of oil,all kinds of acid and alkaline liquid etc |
The packing of products:
