Steel Profile CUZ Section Purlin Cold Roll Forming Machine

FOB Price

USD $78,000 - $92,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai/Ningbo
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Other, Purlin forming machine	Tile Type:	Steel
Use:	Other, frame	Production Capacity:	16-18m/min	Place of Origin:	Zhejiang, China
Brand Name:	WILLING	Model Number:	any size for CUZ from 80-300mm	Power(W):	30kw
Voltage:	380v or ar buyer's request	Dimension(LWH):	8800016001500mm	Weight:	8000kg
Certification:	CE,ISO9001:2008, GMC, Soncap	Warranty:	12 month

Product Description

Specifications

Roller driven type: Hydraulic motor driven
Controller: PLC
Operation: touch screen button
Hydraulic system pressure: 25Mpa

Steel Profile CUZ Section Purlin Cold Roll Forming Machine

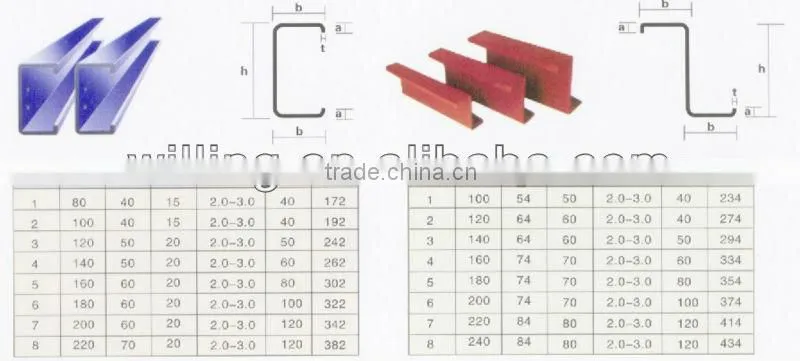

1. Profile drawing

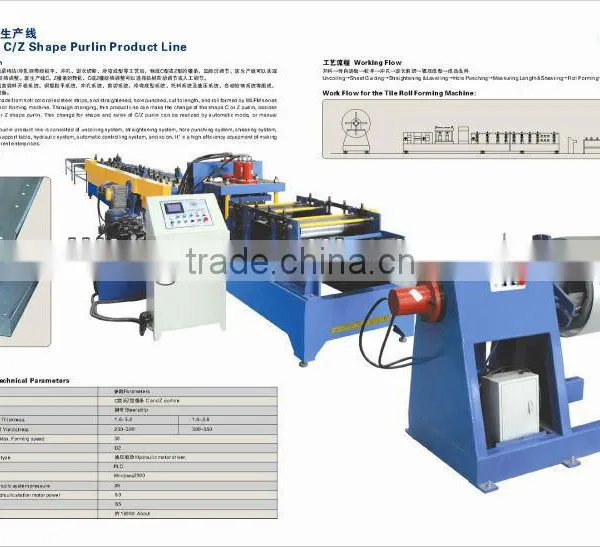

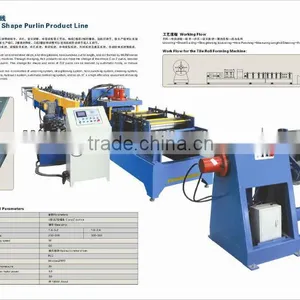

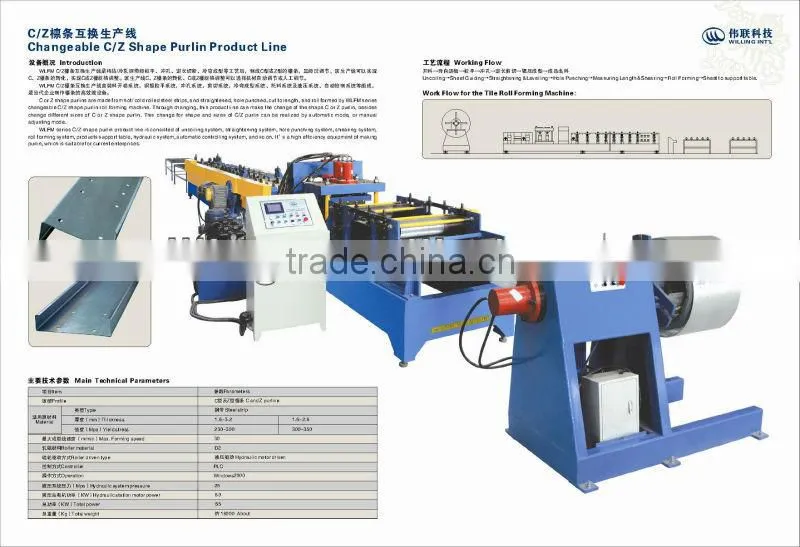

2. Machine layout

3. Main parameter

Material spec:	carbon strip or galvanized steel strip
Thickness:	1.0mm to 3.2 mm
Coil width:	depends
Working speed:	16-18m/min. (Nodal distance at 250mm)
Cutting tolerance:	±2mm
Main motor power:	22.5Kw
Hydraulic station power:	7.5Kw
Decoiler	manual decoiler, max capacity 5000kgs
Main roller qty:	about 18 stands but depends on last design
Type of cutting:	Roll-formed and length-set cutting
Main body dimension:	About 8800mm1600mm1500mm

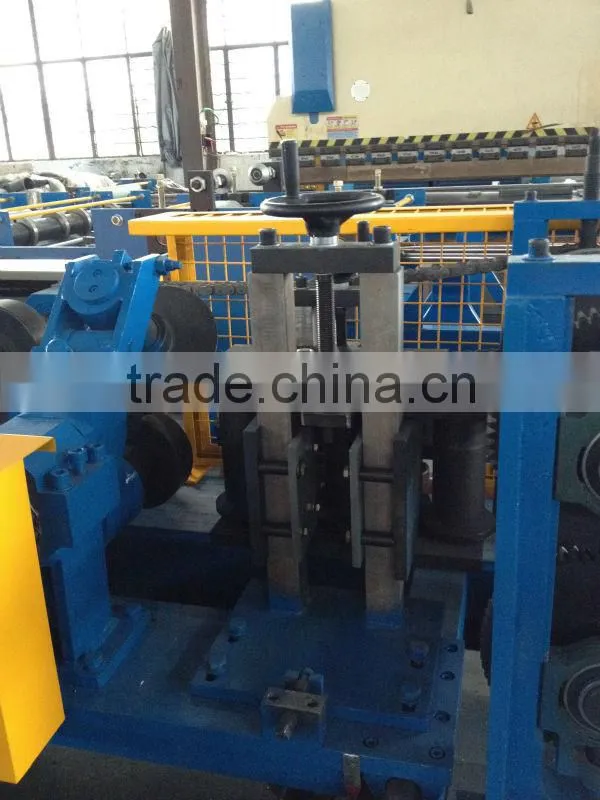

4. Machine picture

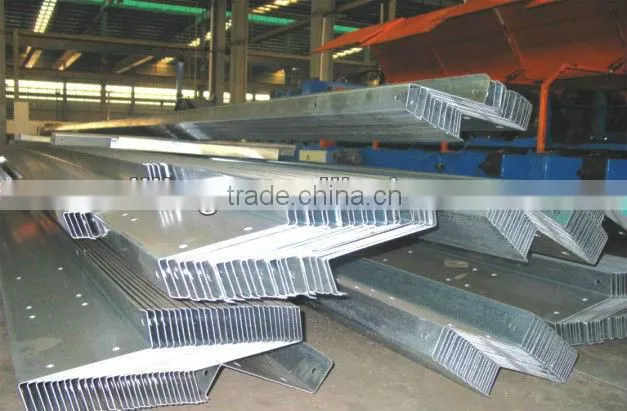

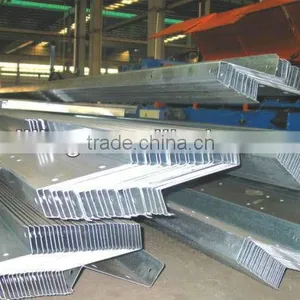

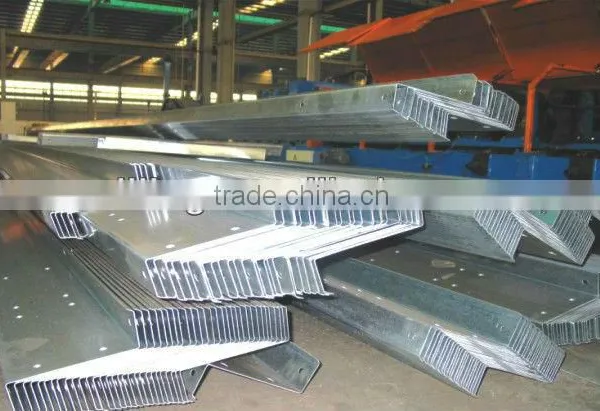

5. Finished products

6. Working flow

Decoiling the sheet------Sheet guiding------Punching------Pre-cutting------Roll forming------Measure length------Cutting the panel------Panels to the supporter

7. Standard equipment of machine

5tons passive uncoiler	1set
Pre-cutting equipment(Optional)	1set
Film covering device (Optional)	1set
Guiding Equipment	1set
Roll Forming Equipment	1set
Punching System	1set
Post Cut Equipment	1set
Hydraulic Station	1set
PLC Control Penal	1set
Supporter Table	2sets
