7" color display portable cnc flame/plasma cutting machine#$#$

FOB Price

USD $1 - $7,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Beijing, China	Brand Name:	start	Input Voltage:	220V, 220v
Usage:	Sheet metal cutting

c flame cutting machine
2.1500mmX3000mm,1500mmX2500mm,1200mmX2000mm
3. 7" color display
4.Libraray with shapes

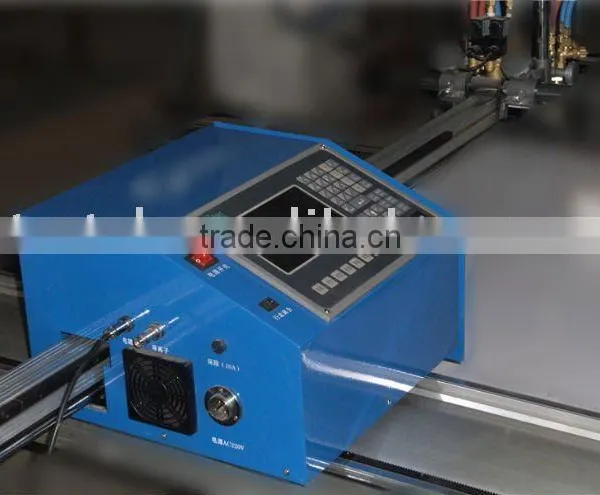

CNC Portable Plasma/Flame Metal Plate cutting machine

Specifications:

* The overall processing machine base: good stability, not deformed

* Using beeline and double-slide lead rails, high accuracy

* A detachable structural design for arm, convenient transportation and installation
* Beautiful structure, coordination, light weight;

* Machine base is made in steel.

* The CNC control system has the following character :

1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;

2) 32M users program storage capacity can update to 64M;

3) In both English and Chinese interface conversion;

4) During plasma processing, auto-complete the speed control of the corner

5) Rich software features and practical flame / plasma cutting process;

6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;

7) Dynamic graphics zoom in 1-8X the graphics, fixed point of automatic tracking;

8) Using USB Flash Drive reading procedure and timely upgrade software;

9) Built-in the rich graphics, makes programming easy to learn.

100% test before shipping

Major Parameters:

Input Voltage	220V
Rated Power	160W
Power Frequency	50HZ
CNC control system	SH-2012AH-QG
LCD Size	7’’ Color Display
Fuel Gas Source Pressure	Max. 0.1Mpa
Oxygen Source Pressure	Max. 1.5Mpa
Cutting Type	Flame or Plasma
Cutting Speed (mm/min)	50-1000
Cutting Thickness (Flame)	3 - 150 mm
Cutting Thickness (Plasma)	0.1 – 50 mm (according to plasma source)
Fuel	Propane, Acetylene, Methane
Precision	0.2 mm
Cutting Nesting Software	IBE or FastCAM optional
