forming mill, cold forming steel mill, and roll forming mill

FOB Price

USD $22,000 - $22,000 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Tile Forming Machine	Tile Type:	Other, aluminum
Use:	Roof	Production Capacity:	12m per minute	Place of Origin:	Zhejiang, China
Brand Name:	Willing	Model Number:	WLFM18-63.5-825	Power(W):	4
Voltage:	as per customer's request	Dimension(LWH):	8m1.5m1.5m	Weight:	6tons or so
Certification:	CE, ISO9001:2008	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

To design your specifications. We have built sophisticated to basic economical roll formers. We build a variety of roll formers.

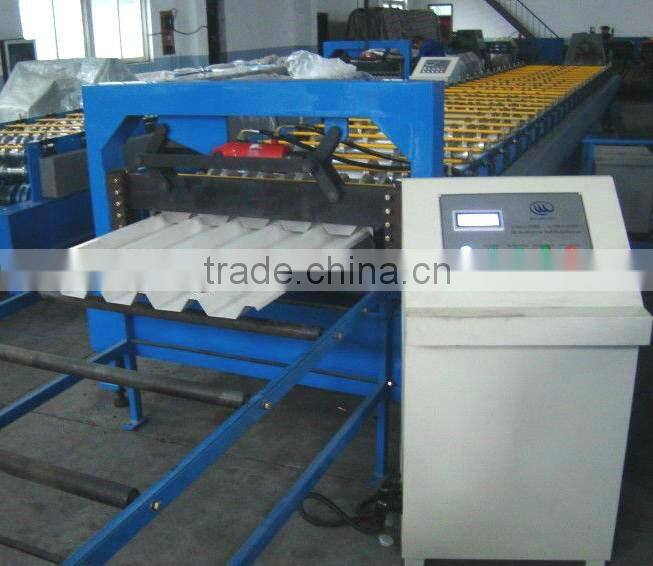

Forming mill, cold forming steel mill, and roll forming mill

1. Components of Machine

The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, control console, and manual unload product run out table.

2. Technical Parameters

Material specification	Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness	0.3 mm to 0.7mm.
Main motor power	5.5 kw.
Hydraulic station power	3 kw.
Feeding width	914/1000/1200mm.
Cover width	WLFM 18-76-760/836/988 is 760/836/988mm respectively.
Yield stress	235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	12 m/minute.
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).
Manual Uncoiler	Max. Capacity: 5000kgs.
Coil inner diameter	508mm.
Voltage	As per customer’s request.
Numbers of stands	13 stands/stations/pairs.
Type of cutting	Roll-formed and length-set profile cutting.

3. Material of Main Equipment

Roller Material	High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material	High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.
Electric Elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China.
Cutter blades	Cr12 mould steel with quenched treatment.

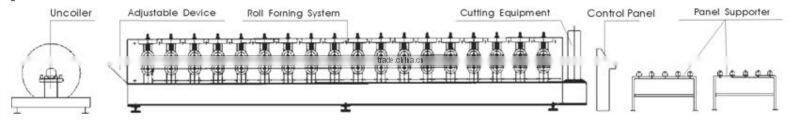

4. Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: automatic stacker).
