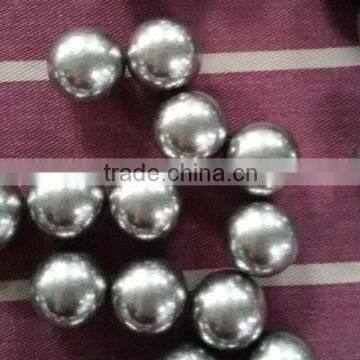

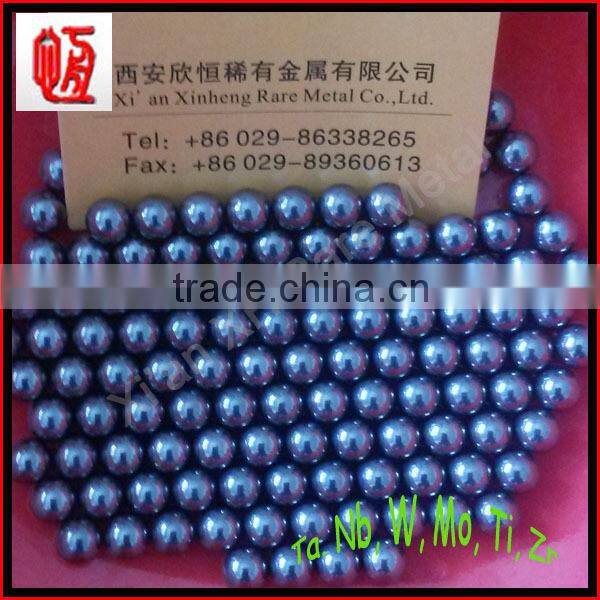

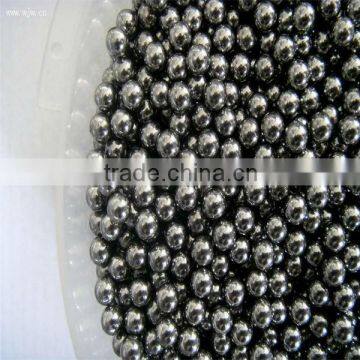

Tungsten Alloy Ball introduction
1.Diameter: 1.0mm-100.0mm
2. Density: 15.8-18.75 g/cm3
3.Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
4.Surface: Sintering surface, Forged surface, Ground surface
Tungsten alloy balls are widely used in Ball valve and Bearing. We can offer various grades and sizes .And the stringent requirements of each procedure to ensure that the products produced comply with your request. We adopts the advanced technical and depend on the imported material .The ball has the high endured causticity and high endure grind, which could improve the life of the bearing, while elevate the value of your products.
Tungsten Alloy Data Sheet
Type | Density (g/cm³) | Tensile strength (MPa) | Elongation | Hardness (HRC) |
85W-10.5Ni-4.5Fe | 15.8-16.0 | 700-1000 | 20-33 | 20-30 |
90W-7Ni-3Fe | 16.9-17.1 | 700-1000 | 20-33 | 24-32 |
90W-6Ni-4Fe | 16.7-17.0 | 700-1000 | 20-33 | 24-32 |
91W-6Ni-3Fe | 17.1-17.3 | 700-1000 | 15-28 | 25-30 |
92W-5Ni-3Fe | 17.3-17.5 | 700-1000 | 18-28 | 25-30 |
92.5W-5Ni-2.5Fe | 17.4-17.6 | 700-1000 | 25-30 | 25-30 |
93W-4Ni-3Fe | 17.5-17.6 | 700-1000 | 15-25 | 26-30 |
93W-4.9Ni-2.1Fe | 17.5-17.6 | 700-1000 | 15-25 | 26-30 |
93W-5Ni-2Fe | 17.5-17.6 | 700-1000 | 15-25 | 26-30 |
95W-3Ni-2Fe | 17.9-18.1 | 700-900 | 8-15 | 25-35 |
95W-3.5Ni-1.5Fe | 17.9-18.1 | 700-900 | 8-15 | 25-35 |
96W-3Ni-1Fe | 18.2-18.3 | 600-800 | 6-10 | 30-35 |
97W-2Ni-1Fe | 18.4-18.5 | 600-800 | 8-14 | 30-35 |
98W-1Ni-1Fe | 18.4-18.6 | 500-800 | 5-10 | 30-35 |
90W-6Ni-4Cu | 17.0-17.2 | 600-800 | 4-8 | 25-35 |
93W-5Ni-2Cu | 17.5-17.6 | 500-600 | 3-5 | 25-35 |
The specification and composition of tungsten alloy ball can be self-defined by customer.
Shaanxi Xinheng Rare Metal Co., Ltd was established in 2001, it has been in rare metal field for more than 10 years and we provide high quality with pretty completive price.Our main products are more than 80 varieties of rare metals such as the Wire, Plate, Crucible, Tube, Rod, Foil, Ball, Electrode, Sputtering Target, Fishing Weights, Ball Shots and other Alloys of Molybdenum, Tungsten, Niobium, Titanium, Tantalum and other rare metals.Our products rely on scientific and technological innovation and quality assurance win the international and domestic market.
Thanks for visit our website!
Feel free to contact me if you have any needs.
Tel: +86-29-62345866 Mobile:+86-18291868029
Email; sales04(at)
WeChat: linglongAmeng
Skype: kristen.91315
