Drainage Cell,PP/HDPE Drain Board

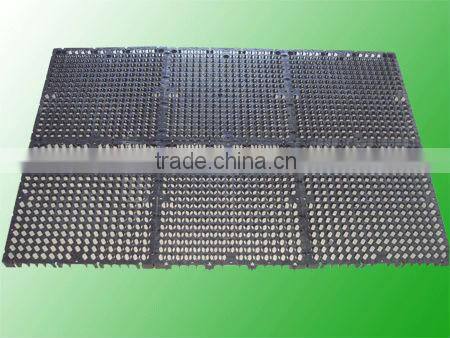

Drainage Cell,PP/HDPE Drain Board photo-1
US$ 4 - 10 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
jiahua
Model Number:
333x333x30mm,500x500x30mm,
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name jiahua
Model Number 333x333x30mm,500x500x30mm,

Specifications

Drainage Cell ,PP/HDPE Drain Board
1. Light weight
2. Easy to installation

Drainage Cell,PP/HDPE Drain Board



Drainage Cell,  PP/HDPE Drain Board



Sub-surface Modular Drainage Cell Description



Sub-surface Modular Drainage Cell is a lightweight three dimensional geo-composite used for subsurface water management. The drainage cell polypropylene core is moulded into a unique profile and then wrapped in a filtration geotextile which then provides a complete void space for the water to travel horizontally without any obstruction. It is lightweight, high compressive strength makes the product ideal for roof garden & podium landscaping, retaining walls., sports fields &golf courses, under drains for slabs and foundations and subsurface drainage for permeable driveways and car parks.



Sub-surface Modular Drainage Cell Features



Light weight and efficient to install

Low construction cost and simple maintenance

100% Recycling



Sub-surface Modular Drainage Cell Specification



Products Name:

Drainage Cell

Item No:

JH-30

Size:

500*500*30mm ,330X330X30mm,or size according to your need

Material:

 HDPE(high density polyethylene)  and Polypropylene

Thickness:

 30mm

Tensile loading:

 >1000kpa

Drain capacity:

 25----30cm³/s

Storing capacity

2.6----4.0l/m²

Surface Void Area :

 >67%

Internal Void Area

>95%

Biological/Chemical Resistance

Unaffected by moulds and algae and good resistance to oils ,acids ,alkalis and bitumen

Service Temperature

-20°C to 120°C



Size can be made according to your need,For further information,pls contact me directly.
