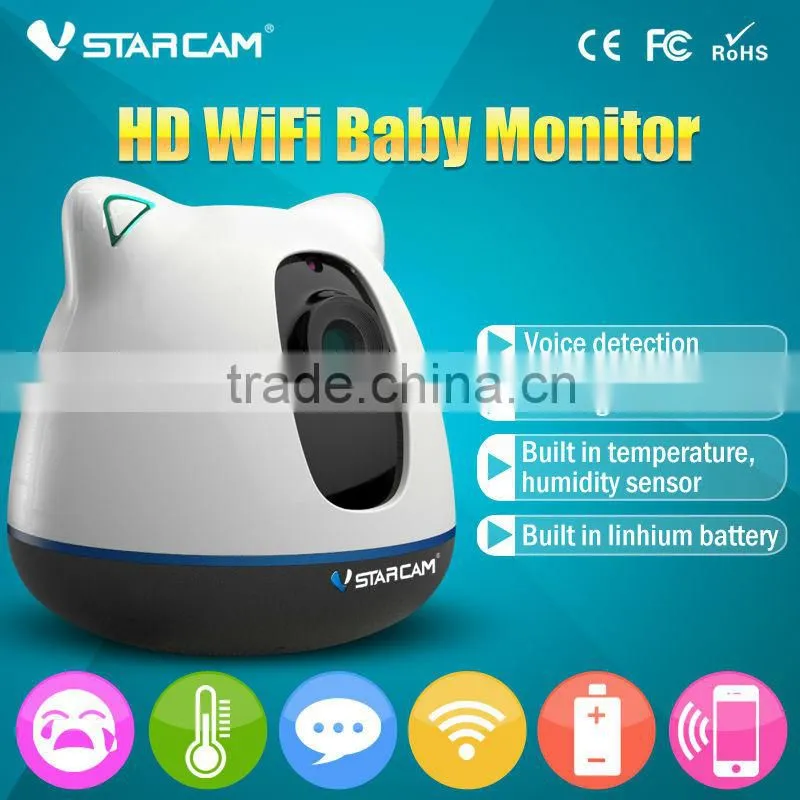

hd 720p wireless video baby monitor, baby phone electronic babysitter

Model :C7881WIP

Description

Product name

Baby Monitor

Application

remotely monitor and care the baby.

System

Operation System

embedded Linux,eye4 software

System security

Three level user authority management

Inline visitors

4 online users viewing simultaneously

DDNS

Free DDNS

Processor

Hisilicon processors,built-in ARM926 @Max.

440MHz and High speed video coprocessor

Collection

Image sensor

1/4 inch 720p Progressive CMOS sensor

Sensor performance

support AWB, AGC, BLC

Sensor size

3.84mm×2.16mm

SNR

≥39dB

Minimum illumination

0.8Lux/F1.4(colorful mode),0.3Lux/F1.(B&W mode)

Lens / visual angle

3.6mm*F1.4/56.14 °

Night vision

Dual IR-CUT Filter auto switch, 1pcs 850nmΦ42Mil super-power infrared light, 5m night vision.

IR control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
IR turned off: night vision disabled, infrared ray off, ICR stay in day

view mode.

Crying detection

According to the value of sound decibel to detect baby's crying.

Temperature

Built-in temperature sensor,detect range:-40°C—— +50°C, precision

up to ±1°C

Humidity

Built-in humidity sensor, detect range: 0—— 99.9%RH, precision up

to ±3%RH

Video

Compression standard

H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline

Video coding processing

Multi stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG

capture

Resolution

720p/VGA/QVGA

Bit rate

CBR/VBR, output bit rate range: 128 ~ 4096kbps

Maximum frame rate

30fps/25fps(720p)

Image adjustment

Contrast, Brightness, Saturation,color are adjustable

Audio

Input

Built in-48dB microphone

Output

built in speaker(8Ω3W)

The sampling frequency / width

8KHz/16bit

Compression standard / rate

ADPCM/32kbps

Voice message

One key to leave message and playback.

Network

Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,

RTSP,P2P,ect.

Wireless network

802.11b/g/n

Wireless network security

WPS encryption

Wireless connection

AP hotspot

Recording

Recording mode

Motion detection recording, TF card recording, local recording

Storage

Micro SD card storage,up to 64GB storage

Physical indicators

Rated voltage

DC5V±0.3V/2A

Power supply

 5V/2A Mciro USB

The built-in 2500mA battery, 2 hours continuous work, with a PMU

power supply

management module, support capacity detection, low electric tips

Power comsumption

Rated power: 3.2W (IR LED on)

Working environment

Working temperature: -10 to 50 DEG C, working humidity <95%

Installation method

Baby crib, wall mounting, desktop installatoin, window curtain

Housing Material

ABS plastic

Weight

Gross weight: (Note:only for reference)

Packing size

Note: Only for reference.
