Product Details
Place of Origin: | Hebei, China | Brand Name: | Huagong | Model Number: | ZLP500/630/800 |
Product Description

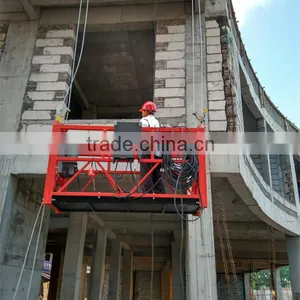

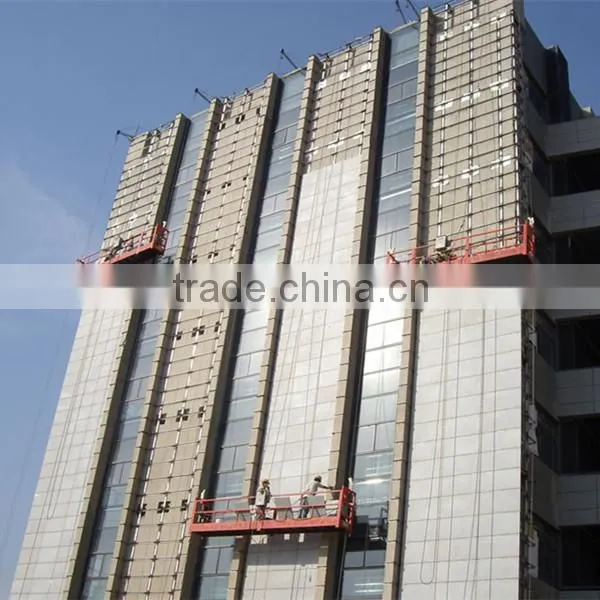

ZLP 500 630 800 suspended working / fitting platform
Product Introductions of ZLP 500 630 800 suspended working / fitting platform:

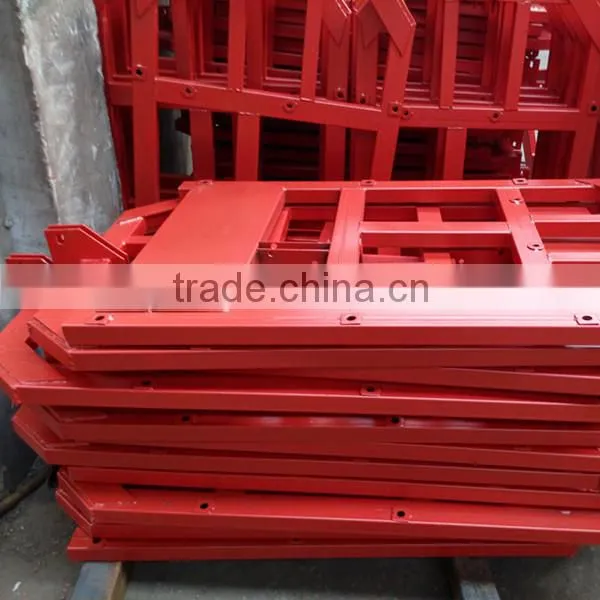

(1) Platform
Platform is the working place, consist of high balustrade, low balustrade, bottom plate,
hoist mounting deck connected with bolt.
(2) Hoist mechanism
Hoist is the motor of suspended platform, adopted electric climbing principle.
Hoist is driven by electric regenerative braking and threephase asynchronous motor,
starting through turbine & worm and gear reducer, with steel rope climbing, hoist works
up and down following the rope, so keep the platform up and down.
(3) Safety lock
Safety lock is the protection equipment. When the platform goes acclivitous, or ropes
are broken off and falling, the safety locks will lock the wire ropes automatically and
quickly to ensure the safety of the operator from falling and inclining. The safefy lock is
of swinging type.
Main Parameters of ZLP 500 630 800 suspended working / fitting platform:
Item | Model and Parameters | ||||
ZLP800N | ZLP630 | ZLP500 | |||
Rated load | 800kg | 630kg | 500kg | ||
Ascend speed | 9-11m/min | ||||
Suspended platform size (LxW) | (2.5mx3) x0.76 | (2mx3) x0.76 | (2.5mx2) x0.76 | ||
Wire rope | 4×31SW+FC-9.1 minimum breaking force: 63kN | 4×31SW+NF-8.3 minimum breaking force: 53kN | |||
Hoist | Hoist model | LTD80 | LTD63 | LTD50 | |
Rated lifting force | 8kN | 6.3kN | 5kN | ||
Electric motor | Type | YEJ90L1-4 | YEJ90L-4 | YEJ90S-4 | |
Power | 1.8kW | 1.5kW | 1.1kW | ||
Voltage | AC380V, 3-phases(AC415V, 3-phases) | ||||
Braking torque | 15N.m | ||||
Safety lock type | Tilt-proof safety lock | ||||
Suspension mechanism | Height adjustment | 1.15m-1.75m | |||
Front beam extent | 1.1m-1.7m(should reduce the load on the suspended platform when extent is 1.5m or more.) | ||||
Machine weight | Suspended platform (including hoist, safety lock, electric control box) | 535kg(steel) 380kg(aluminium) | 480kg(steel) 340kg(aluminium) | 410kg(steel) 290kg(aluminium) | |
Suspension mechanism | 2x175kg | ||||
Balance weight | 1000kg | 900kg | 750kg | ||
Whole machine weight (no-including wire rope and cable) | 1925kg(steel) 1750kg(aluminium) | 1790kg(steel) 1650kg(aluminium) | 1570kg(steel) 1450kg(aluminium) | ||
The voltage and frequency of the motor can be manufactured to meet the needs of buyer's requirement. |
1. 100% QC inspection Before Shippment
2. Your professional questions will be answered by our Technical Team
3. Sample order is acceptable
4. Best after-service
5. OEM Provide
1.Are you Trading or Factory?
We are factory, with more than 15 year production history in hoisting line.
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the samples, you need pay the express fee, but it will be refundable after order confirmation when your products amount is more than USD10,000.
4.What information should I let you know if I want to get a quotation?
1. Lifting capacity.
2. Lifting height(hook center to ground).
3. Power supply: Voltage.
4. Span(rail center to rail center).
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Honestly, it depends on the order quantity and specification and the season you place the order.
About 10-20days will be finished. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
6.What is your terms of delivery?
We accept EXW,FOB,CFR,CIF, etc. you can choose the one which is the most convenient or cost effective for you.
7.Which payment terms will you receive?
T/T, L/C, Western Union, etc.
8.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.
All products will be well packed before shipping .
9.How long is the warranty?
The whole machine of all our products have 12 months warranty, and we sure the product will be free from maintenance within warranty period.
Low charge for continue maintenance when warranty is expired.
