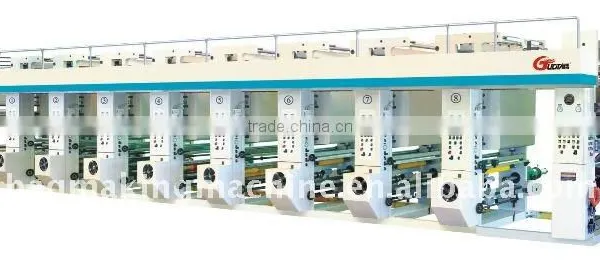

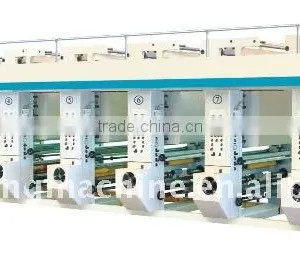

DFASY-Series High-speed computer Gravure press

Specifications

DFASY-Series High-speed computer Gravure press
ROTOGRAVURE PRINTING MACHINE
high speed rotogravure printing machine

 DFASY-Series High-speed computer Gravure press
ROTOGRAVURE PRINTING MACHINE
high speed rotogravure printing machine

PRINTING MACHINE ;ROTOGRAVURE PRINTING MACHINE



Description
Machines in this series are applicable for continuous multi-color printing on rolling materials in good printing performance such as cellophane,BOPP,PET,PVC,PE,aluminum foil,and paper,broadly applied for all types of super-quality printed matters.
FEATURE:
1.The whole set is in permutation and combination style,possible to add reduce color class and add on reverse printing mechanism as required by customers.
2.Frequency conversing synchronic timing is adopted for both main machine drawing and reeling.
3.Pneumatic backpressure moving erasing knife,non-shaft pneumatic conic node printing plate loading,prompt and convenient printing plate changing.
4.Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5.Adopting pneumatic elements for control of all printing pressure roller,drawing pressure roller and open & close of oven.
6.Sealed type lengthened oven,fast drying with less energy consuming,and auto constant temperature control system.
7.Printing ink circulating system,inflatable type shaft draw in and draw out.
8.High-accuracy gear transmission box,adopting patented technique.
Reeling and unreeling reel by tumbling dual-stationg mechanism,realizing auto material change without machine halt.
10.Adopting superhard aluminum alloy guide roll after anode oxidationg processing and in static balance.
11.Full automatic computer registering devices and computer stilll examining graphics.
12.Diesel oil air-stove system is available for stove heating.

DFASY-Series High-speed computer Gravure press

MAIN TECHNICAL PARAMETERS:

Model	DFASY-600/6 colors	DFASY-800/6 colors	DFASY-100/6 colors
Length of printing	380-1100mm	380-1100mm	380-1100mm
Width of printing	600mm	800mm	1000mm
Speed of printing	10-120m/min	10-120m/min	10-120m/min
Precision of overprint	-0.12~0.12mm	-0.12~0.12mm	-0.12~0.12mm
Total power	18kw	21kw	24kw
Overall dimension(L x W x H)	8800mmX1400mmX2000	8800mmX1600mmX2000	8800mmX1800mmX2000
