Stainless Steel Walk-in Chamber with RS-232 / RS-485

Stainless Steel Walk-in Chamber with RS-232 / RS-485 Programmable Walk in constant Temperature Humidity Environmental Test Chamber suppliers China

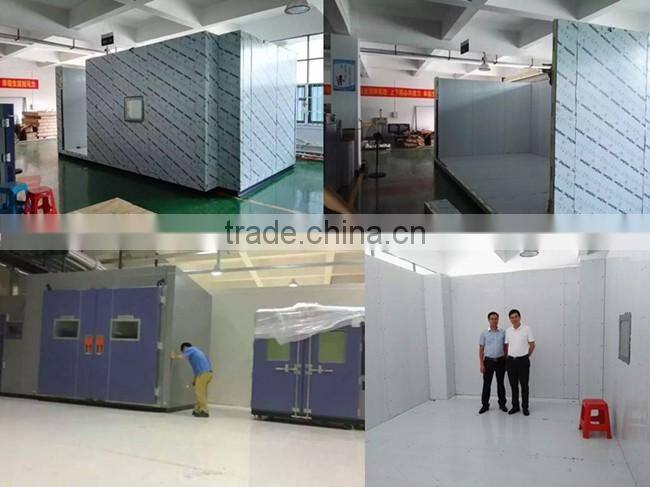

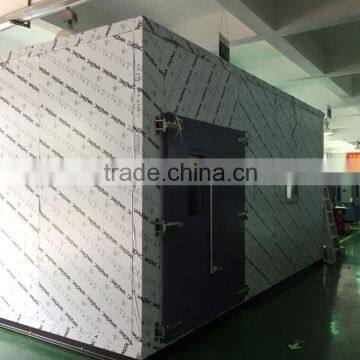

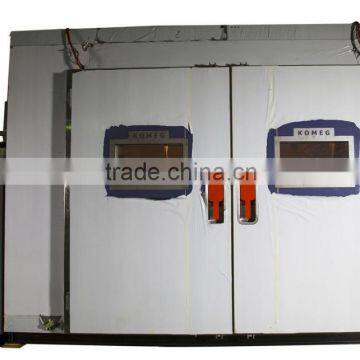

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished products. KOMEG manufactures both Panel Walk-In Chambers and Solid Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.

A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment,etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.

Solid Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Solid Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.

1. Safety Assurance:

Standard is a redundant control circuit with its own controller and failsafe contactor. To prevent thermal runaway, the safety control shuts off power to the heater circuit and the circulation blowers continue to distriibute heat within the room. This feature is particularly important if there are heat-generating items in the walk-in room. When the temperature goes down, the safety control closes and power is restored to the heaters.

1.1 Other available safety options are:

High Temperature Safety with Complete Shut Down of Room with Manual Reset and Visual Indication,

Low Temperature Safety with Complete Shut Down of Room with Manual Reset and Visual Indication,

Both High and Low Temperature Safety with Manual Reset on Both and Visual Indication, Audible Alarm, and Remote Station Alarms.

2. Instrumentation

Instrumentation consists of either single or two-channel microprocessor programmers with an accuracy of ±.25°C or better at the sensor. The sensors are fast acting 100 Ohm. platinum type.

Other options include: RS-232, RS-485 interface.

3. Explore Walk-In Rooms by KOMEG:

Standard Met and Implemented:

GB/Bb T2423.2-89 high temperature test method

GB2423.1-89 test A: low temperature test method 6

GJB150.4-1986 test at low temperature

IEC60068-2-1 low temperature test method

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature

1.Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.

2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.

3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.

4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.

5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
