Wireline core barrel BWL NWL HWL PWL Head Assembly
- 0 per Month
- T/T
- Wireline Double Core Barrel BWL NWL HWL PWL Series Head Assembly And Overshot Assembly
- Sinocoredrill Core Drill Bits HW Diamond Casing Shoes , High Penetration Rate
- Diamond Core Drill Bits NMLC / HMLC core bit For Mineral Exploration
- Small Core Bore Diamond Cutting Core Drill Bits For Rock , Impregnated Bit
- Diamond Cutting Drill Bits Turbo Type , High Speed Core Drilling Bits
- Impregnated diamond Core Drill Bits BWL NWL HWL PWL Longlife for mining
Product Details
Place of Origin: | China | Brand Name: | SINOCOREDRILL | Model Number: | BWL NWL HWL PWL |
Type: | Core Barrel | Machine Type: | Drilling Tool | Certification: | Other, CE , ISO9001:2008 |
Processing Type: | Forging | Use: | Ore Mining |
Product Description

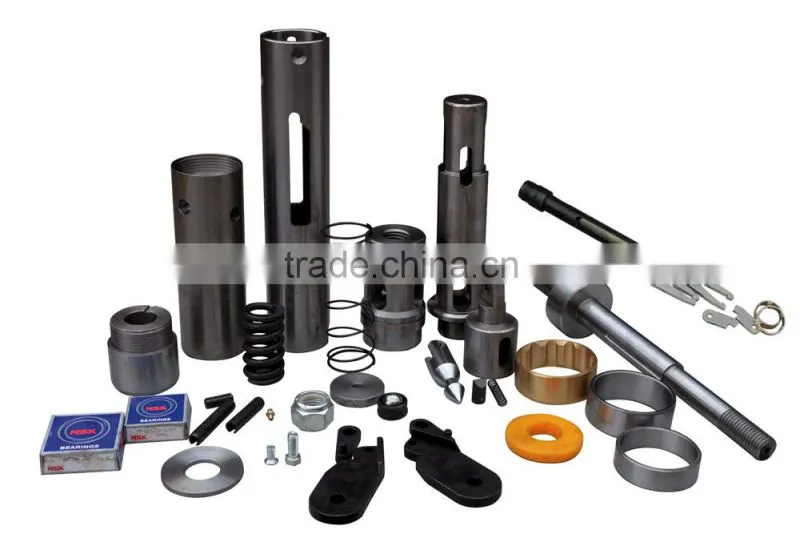

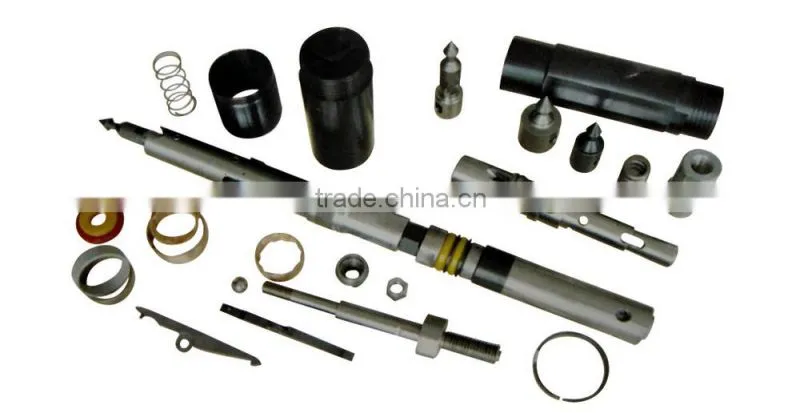

Wireline core barrel BWL NWL HWL PWL Head Assembly
The head assembly provides: latching and pivoting spearpoint mechanisms to allow insertion and retrieval of the inner tube assembly, a bearing assembly to allow the inner tube to remain stationary and avoid sample damage while drilling, fluid pressure operating indications and fluid control valves.
All head assemblies incorporate a shut off valve assembly which provides a fluid pressure signal to the drill operator when the valve members are compressed, indicating a full or blocked inner tube.
Sinocoredrill head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.
All With ISO certificate & quality control.
Specifications
1.N H P head assembly manufacture
2.N H P head assembly high quality
3.API&ISO N head assembly
4.on time delive
Core barrel introdution:
Used in loose, broken stratigraphic or coal extraction and protect rock (mine) heart of drilling tools.
Double core tube and tube has outer pipe, rinses through joint between the internal and external tube water flow to the bottom of the hole, protecting cores from rinses washouts. Double core tube has double motion and single movement two kinds. Double motion and core tube is internal and external core tube following bit and drill stem rotation, it in no serious loose or broken strata.
Single movement double core tube internal and external tube has bearing isolation, pipe outer pipe driven only pick up bit rotation, and broken rock tube does not rotate, avoid to core friction, vibration, etc., with mechanical damage, so it in serious loose fractured formations.these, can be well protected cores.
Use double deck core tube take core, bits need to use wall thickness of the alloy drill or diamond bits.
Due to the rock drill contact surface area increased and the lip use double deck core tube than ordinary core tube drilling efficiency to reduce. In the ledge, coal, in order to guarantee rock (mineral) heart take rate, rules must be use double deck core tube coring. More complex double core tube, except to finish single movement, in addition, aluminum, steel tube placed plastic or qualitative buckled half close tube, have a better protection of the core role.
Double core tube card broken cores and seal block within the next port, the core tube by the drill is placed in the core card fault device (fern, card spring, claw reed, etc.) to finish.
