Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | SINOCOREDRILL | Machine Type: | Drilling Tool |
| Material: | Stainless Steel | Use: | Other, Geological Exploration |
Product Description
Hydraulic Drill Rig Parts Drillig Tower 18m 320KN For Geological Exploration

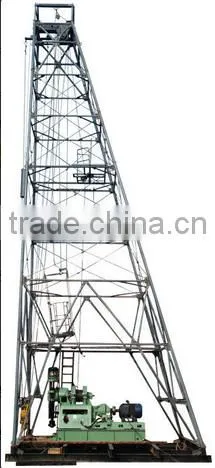

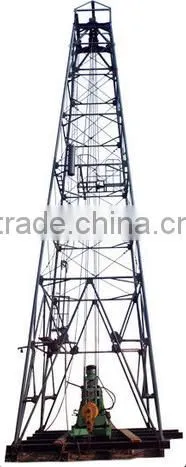

Drill Rig Parts Drillig Tower
Drill tower is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating
drilling, and is used for engineering geological exploration in road,railway,bridge foundation,dam
site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
The height of tower is 18m, the max load is 320KN.
1. BQ, NQ, HQ,PQ drill rod;
2. drilling depth: 440,290,195,135m,
3. Drilling angle:0~360
4 .longlife span
Core drill tower details:
Parameter | HCX-13 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES | HCX-18 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES | SGZ-23 DERRICK FOR STRIGHT HOLE DRILLING |
Main Features | 1. In reasonable structure; height of each section 1.3m; With light weight of single piece, it is easy and quick for installation. | 1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation. | 1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation. |
2. With large Capacity lifting, it could meet 800m vertical hole and 600m inclined holes drilling. | 2. With large Capacity lifting, it could meet 1500m vertical hole and 1200m inclined holes drilling. | 2. With large Capacity lifting, it could meet 1800m vertical hole and 1200m inclined holes drilling. | |
3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 300m to 800m. | 3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1000m to 1500m. | 3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1500m to 2400m. | |
4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application. | 4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application. | 4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application. | |
Nominal Height | 13M | 18M | 23M |
Max Dead Load of Crown Block Beam | 320KN | 320KN | 320KN |
Lifting Length of Drilling Rod | 2×4.5 or 3×3 | 3×4.5 or 4×3 | 4×4.5 or 6×3 |
Adapt to Angle of hole inclination | 75°-90° | 75°-90° | 90° |
Nominal Area of Base | 3.8M×4.7M | 4.5M×5.8M | 5.5Mx5.5M |
Number of Crowned Pulleys | 3pcs | 3pcs | 4pcs |
Max Load of Cage | 0.8KN | 0.8KN | 0.8KN |
Weight | 4450KG | 5480KG | 7500KG |
Drill Mast parts
Derrick is a metal with a certain height and span truss, is an important part of drilling equipment, divided into the crown, the tower body, bedplate, hanging cage, chassis, guide wheel, front, side factory, telescopic coring nine main parts (which can be based on the actual need to increase or decrease the structural part), derrick in drilling process, used to put and suspension hoisting system, drilling tool under weight, for drill pipe or drill collar, etc., must have enough bearing capacity, strength, stiffness, overall stability, and the necessary operation space.
Vertical shaft core drill outstanding characteristic is easy to collapse and handling and can realize arbitrary 0 ~ 90 ° angle of inclined hole drilling. Particularly suitable for the traffic inconvenience, venue is not abundant mountain work.
3. Drill Mast
X-13, X-13 heavy-duty, X-13, X-17 heavy-duty standard four straight diagonal amphibious rig and supporting tower of garment, the security index decomposition to all links, select material is rigorous, the craft is advanced, every welding seam through strict inspection, the assembly simple.
