gyratory vibrator screen machine for graphite powder

 General introduction -- gyratory screen

    The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface. Whole sealing structure, no dust polusion. Without vertical vibration, the mesh could gain a longer service life.

Structure details -- gyratory screen

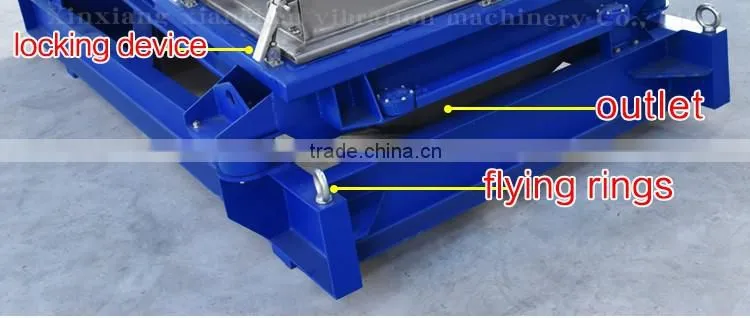

1. Fast Locking Device: Adopts fast locking device, easy to open the cover to inspect and maintain machine.
2. Belt Actuating Device: Adopts belt driving, move smoothly, lose noise.

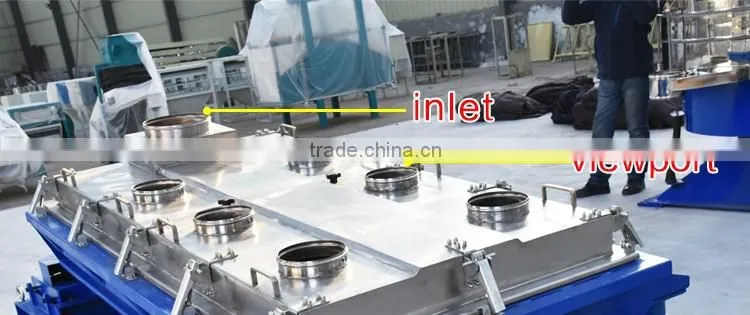

3. Viewport Design: On the cover, there are some viewports for observing sieving process.
4. Bouncing Ball Cleaning System: On every layer, there are some bouncing balls and PU rings for cleaning screen clothes.

Distinctive Features -- gyratory screen

1) No vertical vibration, longer life span of mesh (6 – 12 months).
2) Less conveying equipment is required for elevating material to the feed point.
3) All components are easily accessible and removable for ease of disassembly and cleaning.
4) Every layer is installed with an anti-blocking and cleaning facility, which is able to clean mesh while sieving.
5) Lower headroom permits operation in confined areas, reducing cost of building and maintenance.
6) Exterior is designed for easy cleaning. Exterior permanent joints are either welded continuously, or strip welded and filled with epoxy.
7) ISO9001:2008 certificated.

Application Industries -- gyratory screen

1. Mainly used for screening, filtering, grading and removing impurity for all kinds of powder, particle, and liquid.
2. Mainly suitable materials: chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce, slurry, quicklime, fireproofing powder, metallurgy powder, starch,flour, rice flour, carbon powder, graphite powder, manganese powder, sewage, waste oil, dung, etc.

Technical parameter -- gyratory screen

   Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.

Why Choose Xianchen
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of “Customer Supreme”
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.

Maching process

Exhibition & Customers

Certification & Honor

1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service

How to choose the vibrating screen?
1. what is the material to be processed?
2. Using purposes: to grade or to remove dusts?
3.What is the granule size of the materials? (or mesh size)
4. What is the moisture content if any?
5. What is the granule size proportion if possible to get?
6. Capacity (tons or kg or litter per hour or day)
7. Local power supply (voltage and frequency)
Provide these information in details, design as you wish, we make it for you.

Where do you want to apply for? Just an inquiry.

Welcome your inquiry ! ! !
