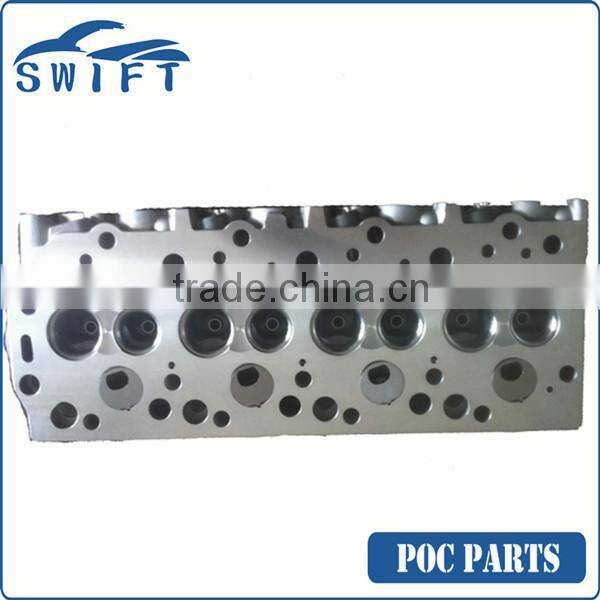

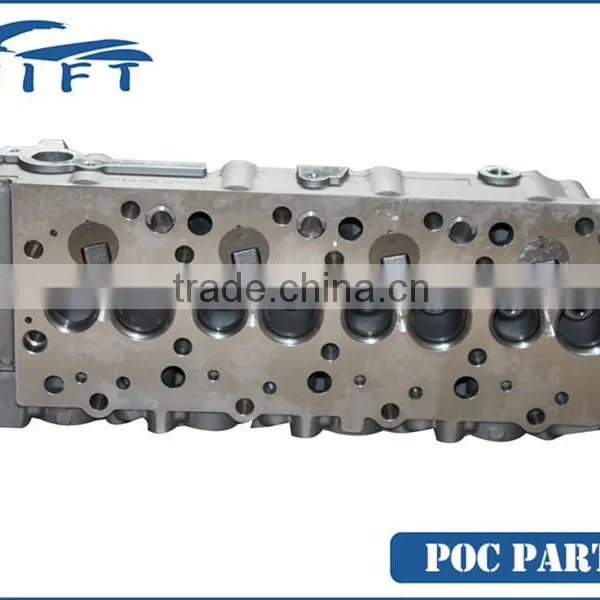

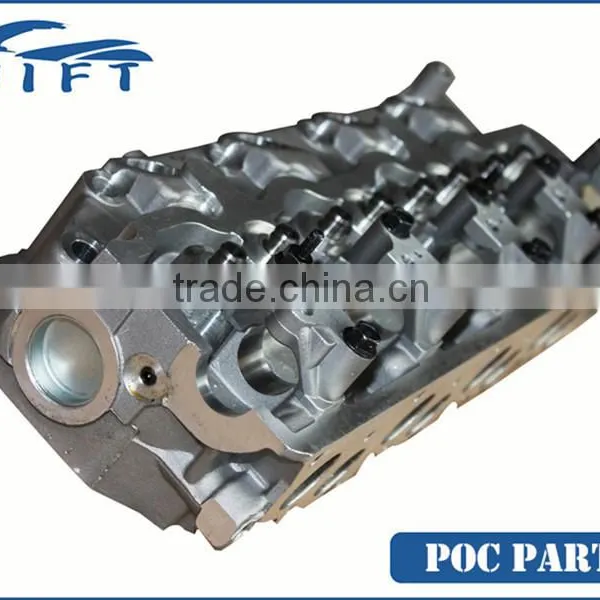

4D56 Cylinder Head For Mitsubishi

FOB Price

USD $1 - $500 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port DALIAN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Type:	Other, Cylinder Head, Piston Cylinder SOHC 8V	Car Make:	Mitsubishi/Hyundai/ Kia	OE NO.:	22100-42700/AMC 908770/22100-42700
Place of Origin:	Liaoning, China	Brand Name:	POC	Model Number:	4D56, 4D56
Warranty:	12 Months

Product Description

4D56

Displacement - 2.5 L (2,476 cc)

Bore - 91.1 mm

Stroke - 95.0 mm

Fuel type - Diesel

This engine is also built by Hyundai in South Korea, meaning it also sees use in some products made by their Kia subsidiary.

Non-Turbo

Power - 55 kW (74 hp) at 4,200 rpm

Torque - 142 N·m (105 lb·ft) at 2,500 rpm

Engine type - Inline 4-cylinder SOHC

Fuel system - Distribution type jet pump

Compression ratio - 21:1

Non-intercooled Turbo

Power - 84 PS (62 kW) at 4,200 rpm

Torque - 201 N·m (148 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder SOHC

Non-intercooled Turbo (TD04 Turbo)

Power - 90 hp (67 kW) at 4,200 rpm

Torque - 197 N·m (145 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder SOHC

Fuel system - Distribution type jet pump

Compression ratio - 21:1

Intercooled Turbo (TD04 water-cooled Turbo)

Power - 78 kW (104 hp) at 4,300 rpm

Torque - 240 N·m (177 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder SOHC

Rocker arm - Roller Follower type

Fuel system - Distribution type jet pump (indirect injection)

Combustion chamber - Swirl type

Bore x Stroke - 91.1 x 95mm

Compression ratio - 21:1

Lubrication System - Pressure feed, full flow filtration

Intercooler Type - Aluminium Air-to-Air, Top-mounted

Turbocharger - Mitsubishi TD04-09B

Also known as Hyundai D4BH

Intercooled Turbo (1st Generation DI-D)

Power - 85 kW (114 hp) at 4,000 rpm

Torque - 247 N·m (182 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder

Fuel system - 1st Generation Common Rail Direct Injection (CRDi)

Compression ratio - 17:1

Intercooled Turbo (2nd Generation DI-D)

Power - 100 kW (134 hp) at 4,000 rpm

Torque - 320 N·m (236 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder

Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

Compression ratio - 17:1

Intercooled Turbo (3rd Generation DI-D with variable geometry turbo)

With manual transmission

Power - 131 kW (178 PS) at 4,000 rpm

Torque - 400 N·m (295 lb·ft) at 2,000 rpm

Engine type - Inline 4-cylinder

Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

Compression ratio - 16.5:1

With automatic transmission

Power - 131 kW (178 PS) at 4,000 rpm

Torque - 350 N·m (258 lb·ft) at 1,800 rpm

Engine type - Inline 4-cylinder

Fuel system - 2nd Generation Common Rail Direct Injection (CRDi)

Compression ratio - 16.5:1
