ZS Stationary Type Paver Making Machine _3

Specifications

China shanghai paver making machine
1.easy operation and maintenance
lor paver mahine
3.high profit and Competitive Pric



Main Technical Parameter of ZS-QT10-15 Cement Hollow Block Making Machine
Overall Size(mm)		3600*3100*3300mm
Moulding Cycle		15-18s
Power(KM)		54KW
Area of molding		1000*800mm
Height of molding		40-230mm
Pallet size		1060*860*25mm
Host weight		14T
Master Frequency		4500R/Min
Rated pressure		36Mpa
Exciting force		80-100KN
List of Theoretical Production Capacity
Proudcts	Specifications		Pc/Mould	Pc/Day	Pc/Year
Standard Brik	240*115*53mm		52	99,840	29,952,000
Hollow Block	390*190*190mm		10	19,200	5,760,000
Multi-hole Brick	240*115*90mm		24	46,080	13,824,000
Pathway Brick	200*100*60mm		36	47,232	14,169,600

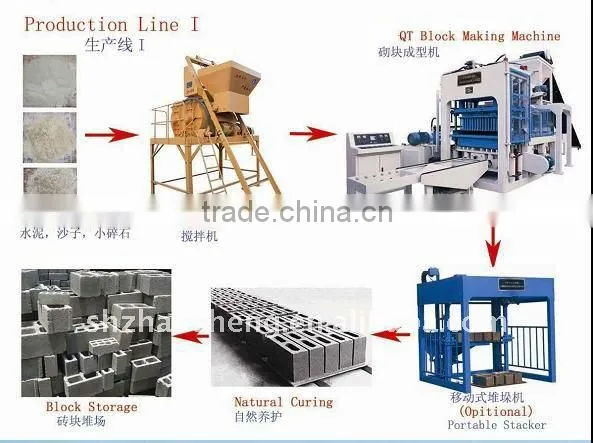

     Multi-usage. Can produce concrete masonry blocks, bricks, pavers, slabs stones, curbstones, retaining walls, plant able blocks, interlocking types etc. By just changing the various designs of moulds.

     Adopt international standard mode, long life, excellent weather endurance, low wastage. Import a great deal of apparatus is another guarantee for our quality.

Molding cycle is 10-15 seconds. The average output of one hour is about 85m2 for pavers or 25m3 for blocks.

    Divide the excess oil of pressure into vibration force, reduce energy wastage. The oscillating is drove by hydraulic pressure, controlled by computer, which bring resonance and finally gain the aim of adding material with low frequency and molding with high frequency, causes the concretes full liquefaction, exhaust, achieves the high density and the high strength of the blocks. More safety and long life than vibration by electric motor.

Imported PLC control system and hydraulic components make that the control and hydraulic systems achieve the trouble-free operation basically. Actualize the man-machine dialog, easy to use, safe and reliable.

    The whole machine adopts durable design, applies special jointing to make it become more strong and durable.

Storing and dividing material device is computerized material supplying, avoided outside effects to material, ensured material supply with well-proportioned, to cut down the finished products tolerance.

    Combination type system of second fabric is combined in accordance with production needs.

Transmission system is adopted computer control and frequency conversion technology, which is stable, exact, efficient and reliable.

    Stacking system is adopted simulative computer control, it stacks fast and credibly.
