compressed concrete and precast building brick block molding machine

Specifications

Brick Making Machine:
1.Power saving 30%
2.Mitsubishi PLC control
ncrete molding machine
4.High output.

        Compressed concrete and precast building brick

                              block molding machine

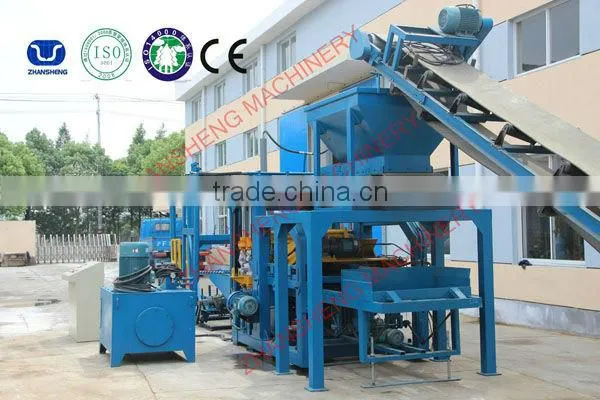

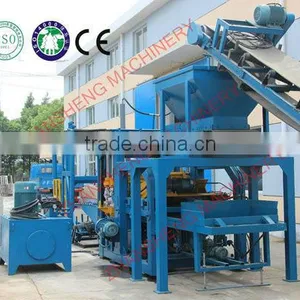

Main Technical Specifications Of QT 9-15 Block Machine
Production per Mould:	9pcs/mould (Standard Block: 400x200x200mm)
	50pcs/mould (Solid Block: 240x115x53mm)
	25pcs/mould (Porous: 240x115x90mm)
	25pcs/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:	15-17 seconds
Production per Shift             (8 Working Hours):	Hollow Block (400x200x200mm):   15192-17280pcs
	Solid Block (240x115x53mm):       84400-96000pcs
	Porous (240x115x90mm):            42200-48000pcs
	Holland Brick (200x100x60-80mm):  32600-36000pcs
Max. Vibrating Frequency:	3000-4500rolls/minute
Vibrating Force:	80-120 KN
Motors Power:	49.2 KW
Machine Dimensions:	6550X2500x2680mm (excluding electrical control box)
Pallet Size:	1340X680X23mm
Gross Weight:	About12.5T
Raw Materials:	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.



 Main Features of Brick Making Machine

1) Uses Japan Mitsubishi PLC control system and Delta Touch Screen. A. Visualization screen with easy operation; B. Is able to set up, update and amend the production perimeters, to maximize the production output; C. Dynamic display of the system’s status, automatic trouble shooting and warning notice; D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;

2)Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated highpressure and soft oil pipes, with easy installation;

3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;

4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;

5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;

6)Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.



Brick Making Machine Process



The Service about Brick Making Machine

Sale-in Service

1. Supervise the construction of foundation which includes electricity, water and other related amenities; 2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc; 3. On-Site Service Engineers for machines installation On-Site training service for production personnel. After-sales Service

After-sales Service

1. Set up individual client's archives with all their needs and detailed to be attended; 2. 24 hours technical advices; 3. Frequent and scheduled engineers visiting; 4. Prompt spare parts support from our major cities distribution network.

Extended Service

1. Free Control System Upgrade. 2. Constant equipment and moulds improvement. 3. Newsletter:onalert to the latest industry trends and application. 4. Always advise new technology and craftsmanship application.





Professional term introduce:



1.Table vibration:

Brick Making Machine Energy from the vibration table through the pallet to the mixture, make the mixture density.



2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete, at the same time vibration start. The Brick Making Machine work with pressure and vibrating.



3.Feed vibrating:

The Brick Making Machine operates with small vibrating when the material feeding car at the top of the mould frame, let the concrete easy to fall down to the mould frame.



4.Green block:

Block just forming by the Brick Making Machine, without curing.



5.Demoulding:

Separate the finished block produced by Brick Making Machine from the mould.



Five advantages of Automatic Brick Making Machine:

Our Brick Making Machine, with harmonic cooperation between electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.



1. The Brick Making Machine use Japan Mitsubishi PLC control system and Delta Touch

A. Screen, use Schneider and Omron relays and contactors:

Mitsubishi PLC, with great adaptability, guarantees the stability and reliability of the Brick Making Machine;

B. Deltan touch screen, with easy operation;

C. High-quality electrical components from Schneider and Omron;



2. The Brick Making Machine use Frequency Conversional Control Technology, which controls the Brick Making Machine:

A. Frequency Conversion Control: Our Brick Making Machine guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

B. Frequency controlled vibration: controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

C. Our Brick Making Machine Power saving: 30%;



3. The Brick Making Machine use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

B. Guarantee production stability;



4. The Brick Making Machine 360° Multi-Shaft Rotating and Compulsory Feeding:

A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;

B. This uniform feeding is applicable for different kinds of raw materials and moulds;



5. The Brick Making Machine use heat treatment on moulds and main parts of the Brick Making Machine:

A. Heavy duty machine structure and wear resistant moulds;

B. The hardness reaches up to HRC 52;

C. Greatly improves the using lifetime of the Brick Making Machine by 50%.





Block Making Machine



 Block Making Machine Production Line



 Actual Block Making Machine Line



  Workshop



 Our Block Making Machine Customers



 The Production and raw materials of Block Making Machine







   Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
