Product Details
Place of Origin | Zhejiang, China | Brand Name | HRYA | |
Model Number | HLZ-1/4.2 | Type | Insulation Sleeving | |
Material | PE | Application | High Voltage | |
Rated Voltage | 1-35KV |
Product Description

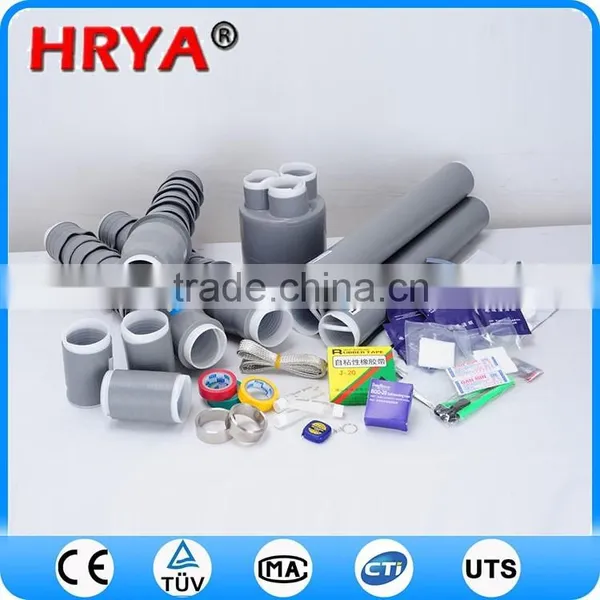

cable termination kits 11kv cable intermediate joints
Cold shrinkable power cable accessories:
MV cable cold shrinkable termination kit of low voltage 0.6/1KV, middle voltage 8.7/15KV, 12/20KV and high voltage 17/36KV cable
0.6/1.0KV Cold Shrink Tubing :
It mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced thchnology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installaion, and the elastomer will rapidly shrink and appress to the installation position.
Used widely, high prominent anti-fouling, anti-aging, hydrophobicity and heat-resisting, cold-resisting performance. Especially suitable for areas of high altitudes, cold, wet, umidity, salt spray and heavy pollution. Popular for oil field, chemical industry, diggings, tunnel and others various inflammable and explosive locations. Manufacturing equipment advanced, automaticity high dependable performance.
Type and Specification:
Name | Item No. | Cable sectional area (mm2) | Name | Item No. | Cable sectional area (mm2) |
0.6/1KV 3-core Cold Shrinkable Termination Kits | VLZ-1/3.0 | 10~16 | 0.6/1KV 3-core Cold Shrinkable Joint | VLJ-1/3.0 | 10~16 |
VLZ-1/3.1 | 25~50 | VLJ-1/3.1 | 25~50 | ||
VLZ-1/3.2 | 70~120 | VLJ-1/3.2 | 70~120 | ||
VLZ-1/3.3 | 150~240 | VLJ-1/3.3 | 150~240 | ||
VLZ-1/3.4 | 300~400 | VLJ-1/3.4 | 300~400 | ||
0.6/1KV 4-core Cold Shrinkable Termination Kits | VLZ-1/4.0 | 10~16 | 0.6/1KV 4-core Cold Shrinkable Joint | VLJ-1/4.0 | 10~16 |
VLZ-1/4.1 | 25~50 | VLJ-1/4.1 | 25~50 | ||
VLZ-1/4.2 | 70~120 | VLJ-1/4.2 | 70~120 | ||
VLZ-1/4.3 | 150~240 | VLJ-1/4.3 | 150~240 | ||
VLZ-1/4.4 | 300~400 | VLJ-1/4.4 | 300~400 | ||
0.6/1KV 5-core Cold Shrinkable Termination Kits | VLZ-1/5.0 | 10~16 | 0.6/1KV 5-core Cold Shrinkable Joint | VLJ-1/5.0 | 10~16 |
VLZ-1/5.1 | 25~50 | VLJ-1/5.1 | 25~50 | ||
VLZ-1/5.2 | 70~120 | VLJ-1/5.2 | 70~120 | ||
VLZ-1/5.3 | 150~240 | VLJ-1/5.3 | 150~240 | ||
VLZ-1/5.4 | 300~400 | VLJ-1/5.4 | 300~400 |
Tech Data:
No. | Test Project | Standard Requirements | Conclusion |
1 | Power Frequency Voltage | 39KV 5min No Flashover and No Breakdown | pass |
2 | Partial Discharge | Under 15KV, Discharge volume≤10pc | pass |
3 | Impulse Voltage Test | Under 95KV, ±10times | No flashover and No Breakdown |
4 | Constant Voltage load Cycle(in air) | The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 3cycles. | Not flashover and assessed by the following test result |
5 | Constant load Cycle test | The conductor applied voltage 23KV, and heated to (95-100°C). In which the temperature stability 2h,cooling 3h, a total of 6cycles. | Not flashover and assessed by the following test result |
6 | Thermal Stability Test | Under 23KA, Short circuit 2 times, No visible damage. | pass |
7 | Dynamic Stability Test | Under 81KA, Short circuit 1 time, No visible damage | pass |
8 | AC Withstand Voltage | 23KV, 15min | No flashover and No Breakdown |
9 | Tide Temperature Test | 11KV, 300h | pass |
10 | Salt Spray Test | 11KV, 1000h | pass |
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: CHINAHRYA
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
