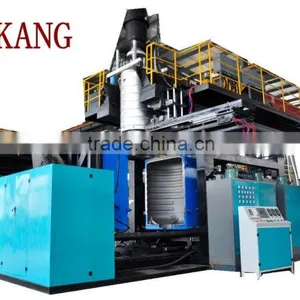

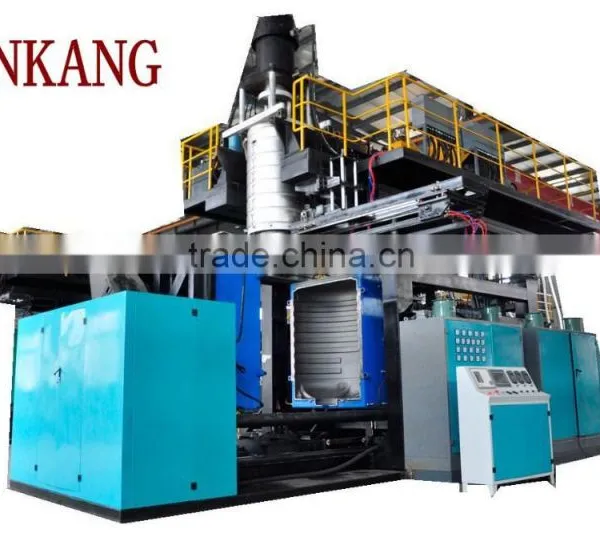

YK5000L series blow molding machine
- 30 Set / Sets per Month
- Qingdao China
- T/T
- 5000L Series Blow Molding Machine For Plastic Tank
- YK5000L double layers blow molding machine for water tank
- Professional Supplier Of 1000L-5000L Plastic Water Tank Making Machine
- Big Capacity Plastic Products Blow Molding Machine
- Larege Capacity Water Tank Blow Molding Machinery
- Extrusion Blow Molding Machine For Plastic Storage Tank
Product Details
Condition: | New | Application: | Other, water tank | Plastic Processed: | PE |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Shandong, China |
Brand Name: | YANKANG | Model Number: | YK5000L-2 | Power(W): | 580KW |
Dimension(L*W*H): | 15m*13m*8.5m | Weight: | 92 Ton | Certification: | ISO9001 |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
HYDRAULIC MOTOR & SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
No |
| Specifications | 5000 Liter |
|
| Model No. | 2 layers |
|
| Processing material | HDPE/HMHDPE |
1 | Extruders | Screw Diameter (Internal) | 120mmgrooved barrel |
Screw Diameter (Middle Layer1) |
| ||
Screw Diameter (Middle Layer2) |
| ||
Screw Diameter (Outer Layer) | 120mmgrooved barrel | ||
Plasticizing Capacity | 700kg/h | ||
L/D | L/D32:1 | ||
Gear Box Type | Hard surface | ||
Extruder Drive Motor (Inner) | 132KW | ||
Extruder Drive Motor (Middle) |
| ||
Extruder Drive Motor (Middle) |
| ||
Extruder Drive Motor (Outer ) | 132KW | ||
Heating Load | 145KW | ||
Max Screw Speed | 50RPM | ||
2 | Accumulator Die Head | Accumulator capacity | 180L |
Pusher Cylinder | 650x600mm | ||
Heating Load | 100kw | ||
Parison Control Cylinder | 650X40mm | ||
Die-Core size [ Min / Max] | 800MM | ||
Inverter | Siemens | ||
Max. parison weight | 150KG | ||
3 | Moulding Clamping Unit | Max opening between Clamping Plate | 3000mm |
Min opening between Clamping plate | 1200mm | ||
CLAMPING PLATEN Size | 2500X2700mm | ||
MAX MOLD SIZE | 2350X 2800mm | ||
Mould Clamping Force | 3500KN | ||
Mould Thickness | 1500-2000 | ||
Clamping Pull Bar | 180mm | ||
4 | Stretching and Blowing Unit | Spreading stroke | 400-1200mm |
Vertical stroke max. | 300mm | ||
5 | Electrical Control Panel | Thickness controller | 100 points Moog |
Main Operation Panel | Siemens | ||
Die Head Control Temperature Control | Siemens | ||
6 | Hydraulic System | Hydraulic Drive motor (Main) | 55KW |
Hydraulic Drive Motor (Parison Control) | 11kw | ||
Oil Tank Capacity | 1500L*2 | ||
7 | Gripper | Gripped stroke | 550mm |
Discharge Stroke | 2400mm | ||
8 | Hopper Loader | Loader | 800kg /h4pcs |
Hopper | 50kg 2pcs | ||
9 | Production rate | Productivity | 5pcs/h |
of 1000 ltr. | Product Weight | 85-95KG | |
10 | Delivery period |
| 5months |
11 | Weight of Machine |
| 92Ton |
| Size of Machine | [L x W x H ] (M) | 15mx13mx8.5m |
12 | Total power |
| 580KW |
13 | Average power Consumption |
| 320KW |
Product Range

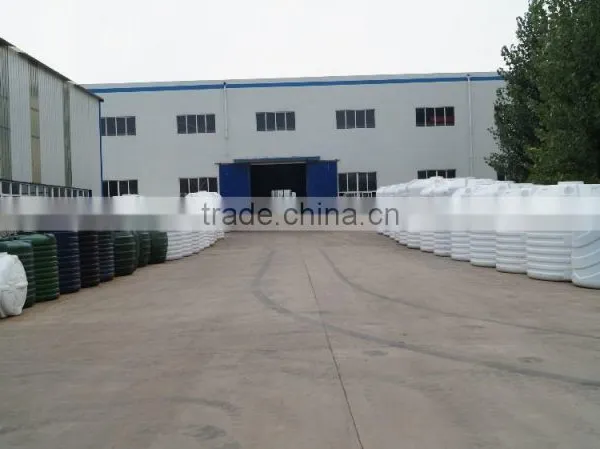

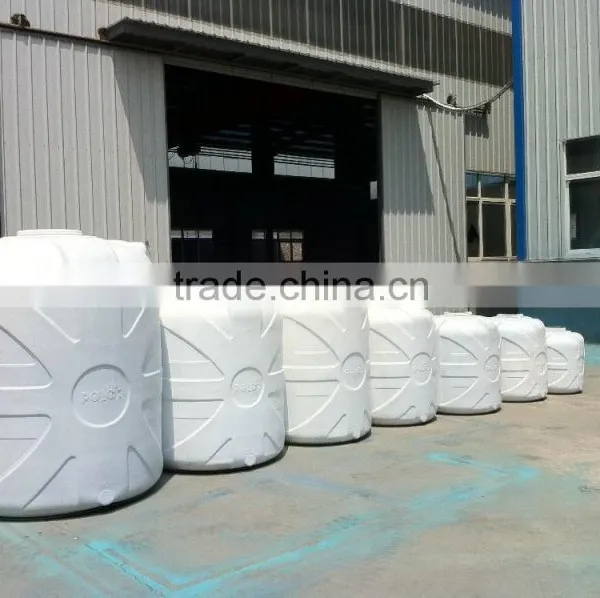

5000L blow moulding machine, mainly used for produce water storage tanks, capacity range 200~1000L. Otherwise can be designed for producing non-standard products according to customer’s request.
( Note: we can produce 200L -10000L ,1-5 layers water tank bow molding machine, and other products making machines, such as machines for pallet, IBC tank, double L-ring barrel,road barrier)
Our Advantage
a. Machine equipped with Siemens control system, Electrical components such as PLC,HMI,motor, energy saving inverter, contactor and low voltage electrical parts are all Siemens.
b. Special designed mold clamping
c.Advanced IKV screw are using
d. Most adavnced Die head design
e. Excellent pre-sale and after sales serivces.
DELIVERY TIME
4months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.
GUARANTEE
The guarantee time is one and half year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
