Home > Products > Parking Sensor > EFR-40/48/58RS16B2, High sensitivity Ultrasonic Sensor

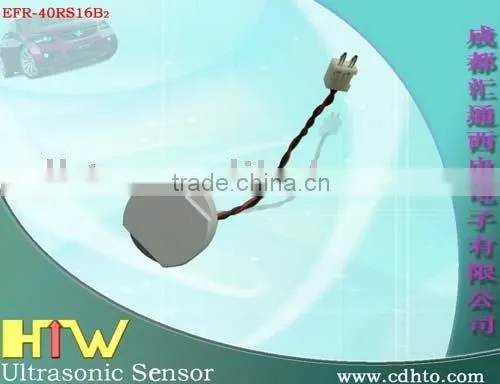

EFR-40/48/58RS16B2, High sensitivity Ultrasonic Sensor
USD $1 - $10
/ Piece
1 Piece(Min.Order)
- 1 Piece / Pieces per Month
- Chengdu
You May Like
Product Details
| Type: | Parking Sensor | Place of Origin: | Sichuan, China | Brand Name: | HTW, HTW |
| Model Number: | EFR-40/48/58RS14B1-GR, EFR-40/48/58RS14B1-GR |
Product Description
Specifications
ultrasonic sensor used for installation in parking system to detect the obstacles.Certifications: ISO9001:2000/TS16949/RoHS.
I. Features of waterproof type ultrasonic sensor EFR-40RS16B2:
(1). High sensitivity;
(2). High reliability;
(3). Less power consumption;
(4). Waterproof;
(5). Easy to installation;
II. Specifications of the ultrasonic sensor EFR-40RS16B2:
- Nominal Frequency (kHz) 4/48/580±1
- Capacity (pf) 2000±15%
- Ring Time (ms) ≤1.2
- Sound Pressure Level (db) 105±5
- Sensitivity (db) -73±5
- Resistance (Ω ) 500
- Directivity (°) 100×70
- Max.Input Voltage (Vp-p) 150
- Operating Temp.Range (oC) -30~+80
- Storage Temp. Range (oC) -40~+85
- Weight (g) 3.1
