Excelair Industrial energay-saving air conditioning

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Guangzhou/Huangpu Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Electric Current Type:	AC	Blade Material:	Plastic	Mounting:	Other, Wall or Roof Mount
Place of Origin:	Guangdong, China	Brand Name:	Excelair	Model Number:	EX767
Power:	0.3~1.2kw	Voltage:	220V 50Hz	Air Volume:	16000 m3/h
Speed:	10m/s	Certification:	Other, CQC

Product Description

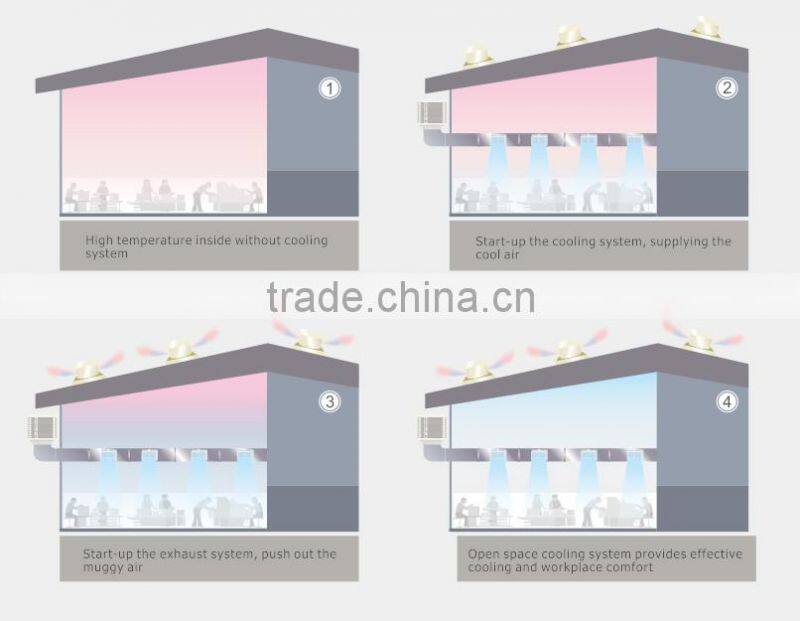

Principles of Industial Sites Cooling System

Evaporative cooler cool the outside air temperature withthe directly evaporative cooling, supply the cool and fresh air intothe workshop, and then exhaust the hot air outside. The temperature ofthe workshop will be cooled down by exchanging the air inside.

# Applications:
Suit for the industrial workshop such as :
Plastic injection, die-casting, spray coating, rubber processing, silkscreen, toys assembly electronics, household appliances, shoes, printing, cladding, hardware, food processing, textiles, garments and dyeing, laundries, greenhouse

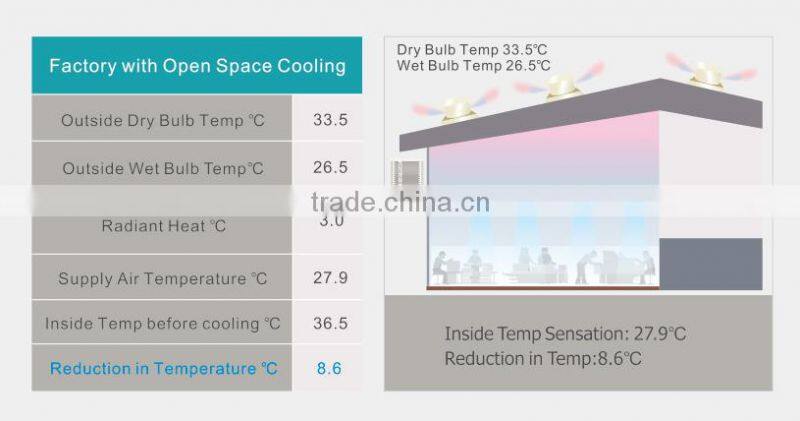

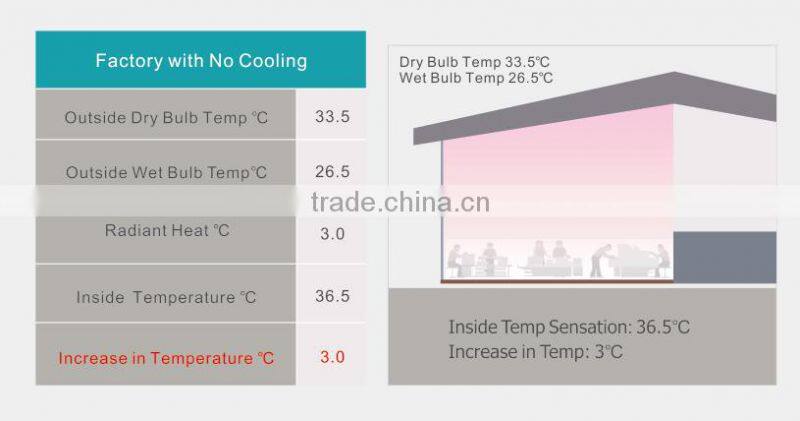

Cooling Effect

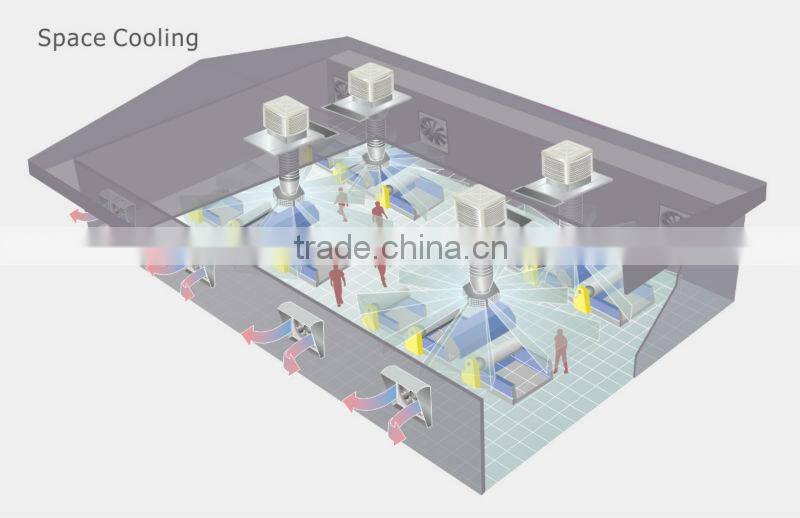

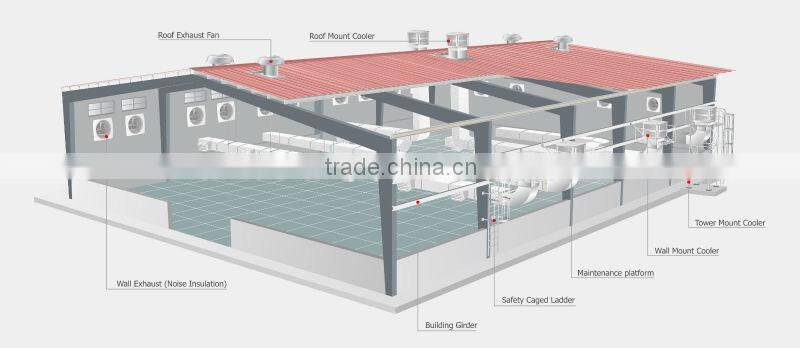

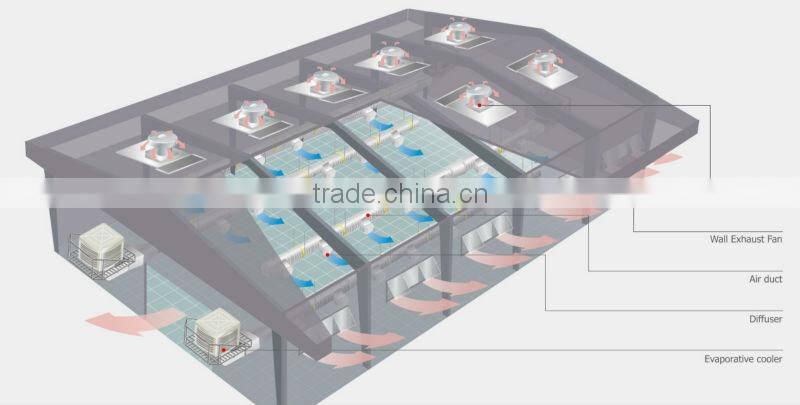

Illustration of Installation

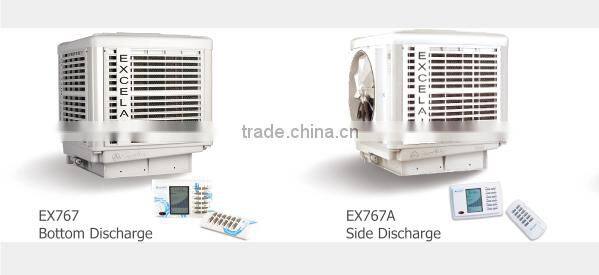

# Specification & Model

Model	EX767	EX767A
Airflow	16000 m³/h	15200m³/h
Cover Area	100~130m²	100~130 m²
Max. Air pressure	120 pa	120 pa
Designed Air Speed	10 m/s	9.4 m/s
Evap. Efficiency	~ 92%	~ 92%
Water Capacity	15 Liters	15 Liters
Power Supply	220V, 50Hz	220V, 50Hz
Power Consumption	0.3 ~ 1.2 kW	0.3 ~ 1.2 kW
Airflow Adjust	6 segments	6 segments
Programmed on /Off	6 stages	6 stages
Filter Washing	Auto/Manual	Auto/Manual
UV Water Sterillizing System	Auto	Auto
Auto Drain	Auto Drain	Auto Drain
Size of Dropper Duct	668x668 mm	668x668 mm
Make-up Water Inlet	1/2"	1/2"
Installed Dimension	1040x1040x1105 mm	1040x1040x1105 mm
Shipping Dimension	1040x1040x1230 mm	1040x1040x1230 mm
Operation Weight	95 kg	89 kg
Shipping Weight	88 kg	81 kg
20-feet container	18 units	18 units
40-feet container	38 units	38 units

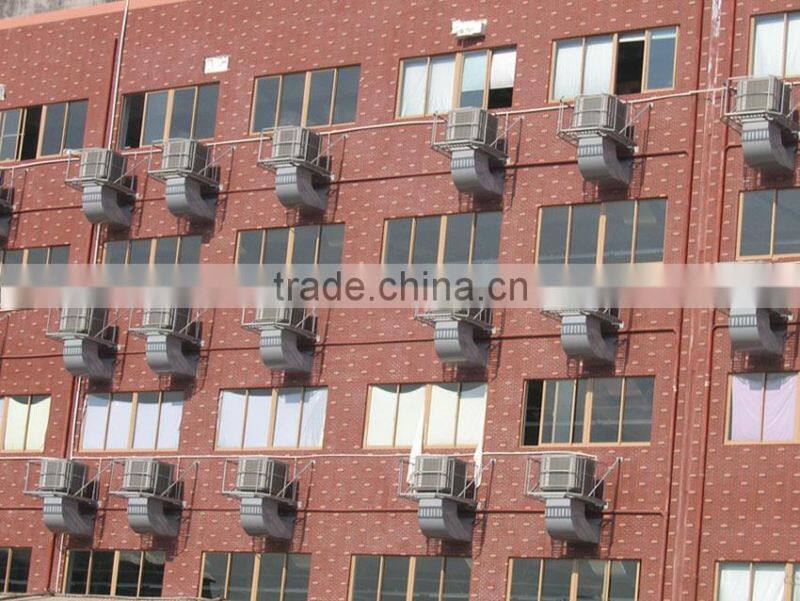

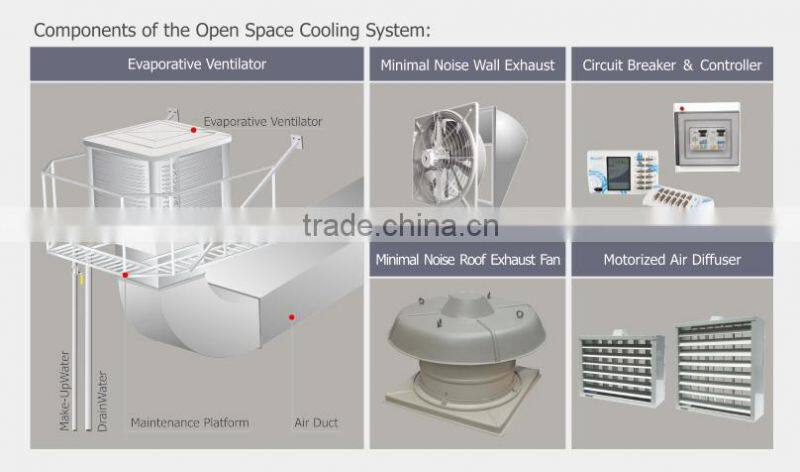

Outside installation

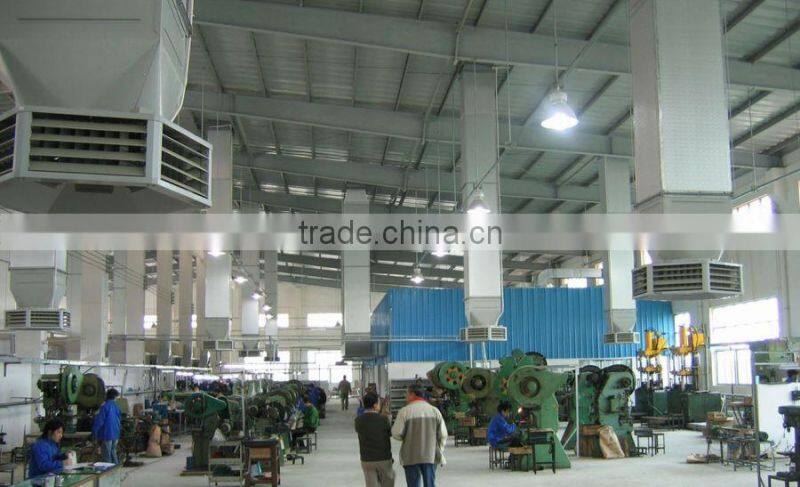

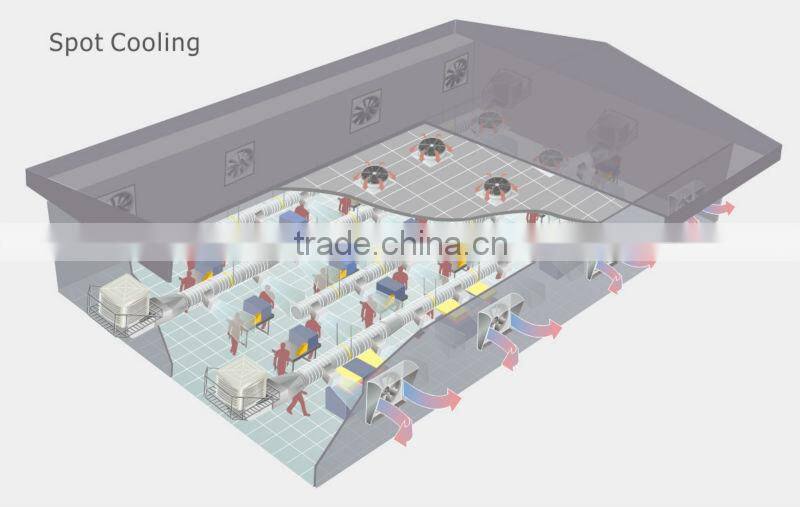

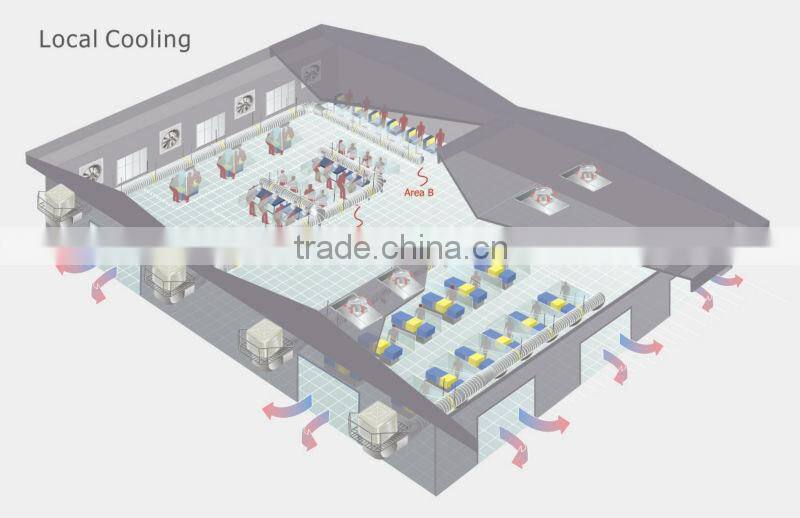

Application case
