G80 EYE / CLEVIS SLNG HOOK WITH CAST LATCH

Specifications

1.MATERIAL: ALLOY
2.USE: G80 CHAINS3.ISO9001 CE GS
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.SLING HOOK









 G80 EYE / CLEVIS SLNG HOOK WITH CAST LATCH

1.MATERIAL: ALLOY

2.USE: FOR G80 CHAINS
3.CERTIFICATE:ISO9001  CE  GS
4.SURFACE:PLASTIFIED
5.PROCESS:  FORGED

6.KEY WORDS:  G80 CHIAN CONNERTOR

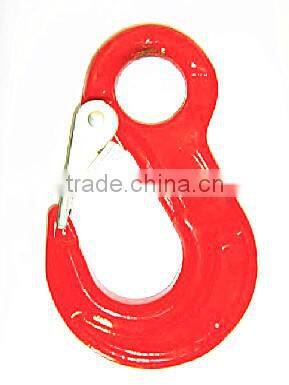

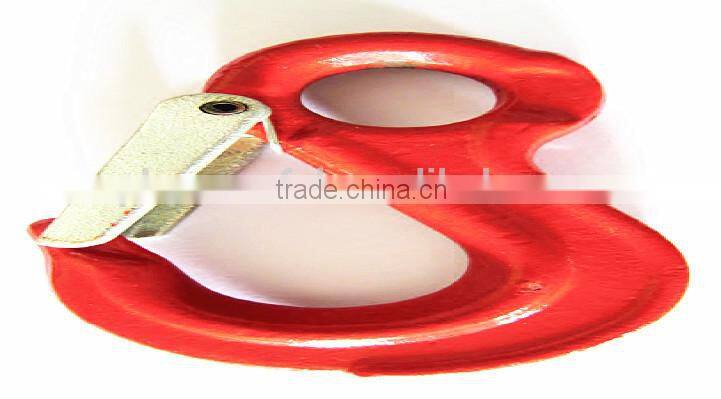

 G80 EYE SLING HOOK WITH CAST LATCH :





 Ultimate load is 4 times the Working Load Limit











 G80 EYE SLING HOOK WITH CAST LATCH :









G80 EYE SLING HOOK CAST LATCH
ITEM NO.	WEIGHT	WLL	BL	M±1	D±1	E±1	H±1	B±2	L±2
	KG	T	T
6	0.3	1.12	4.48	20.5	9	18.5	20	68	109
7/8	0.55	2	8	25	11	22	27	84	133.5
10	1.05	3.15	12.6	34	14	28	33	102.5	167.5
13	1.75	5.3	21.2	42.5	17.5	35	40	128.5	207.5
16	3.2	8	32	52	22	43	48	156.5	253
20	5.3	12.5	50	62	26	51.5	56	187	300

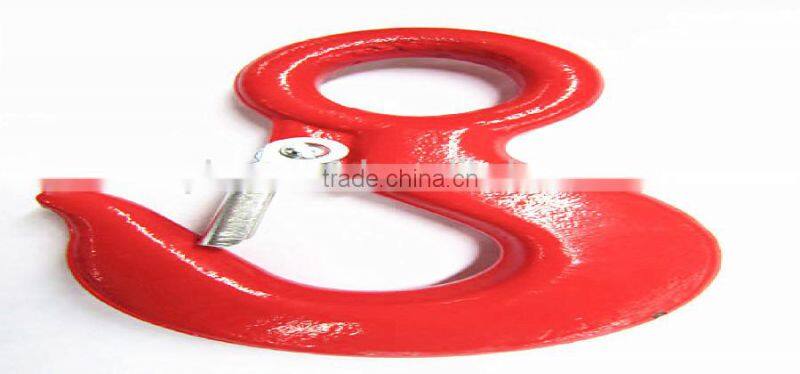

G80 EYE SLING HOOK WITH LATCH:











G80 EYE SLING HOOK WITH LATCH
ITEM NO.	WEIGHT	WLL	BL	D±1	E±1.5	H±1	K±2	L±2
	KG	T	T
6	0.28	1.12	4.48	19	22	19	80	110
7/8	0.65	2	8	28	25	25	103	140.5
10	0.94	3.15	12.6	31	27.5	28	118	162
13	1.95	5.3	21.2	39	33	35	145	201
16	3.77	8	32	51	40	45	180	256
20	6.8	12.5	50	62	51	57	230	317
22	9.8	15	60	73	57	70	260	360
26	16.25	21.2	84.8	89	75	76	318	434
32	27.2	31.5	126	90	98	91	360	495.5









G80 CLEVIS SLING HOOK WITH CAST LATCH :











G80 CLEVIS SLING HOOK WITH CAST LATCH
ITEM NO.	WEIGHT	WLL	BL	A±0.5	B±1.5	D±1	H±1	L±2	E±2
	KG	T	T
6	0.32	1.12	4.48	8	32	35	23	76	26
7/8	0.48	2	8	9.5	37	37	32.5	85.5	29
10	0.95	3.15	12.6	13	49	46	35	104	39
13	1.8	5.3	21.2	16.5	56.5	56	42.5	128	47
16	3.4	8	32	21.5	70.5	60	54	150	55
20	6	12.5	50	24	77	79	58	180	61
22	10.4	15	60	27	91	101	62	213	72
26	14.5	21.2	84.8	30	117	115	75	250	85
32	27	31.5	126	35	150	140	88	317	106

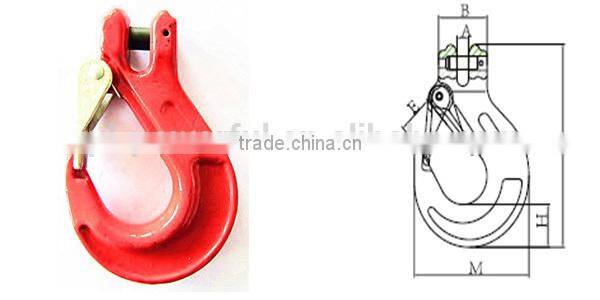

G80 CLEVIS SLING HOOK WITH CAST LATCH :















G80 CLEVIS SLING HOOK WITH CAST LATCH
ITEM NO.	WEIGHT	WLL	BL	A±0.5	B±1.2	E±1	H±1	M±2	L±2
	KG	T	T
06	0.3	1.12	4.48	7.5	32	19.5	20	68	108
7/8	0.55	2	8	9.5	38.5	24	25	85.5	131
10	0.96	3.15	12.6	13	48	28	36	106	163.5
13	1.52	5.3	21.2	16.5	55	34.5	41.6	130	196
16	3.43	8	32	18.5	65.5	43	46.2	155.5	236
20	6.73	12.5	50	24	92	51.5	51	180	281











Never exceed Working load Limit



SUPER ALLOY STEEL: QUENCHED AND TEMPERED







 INDIVIDUALLY PROOF TESTED AT 2.5TIMES WORKING LOAD LIMIT.







BREAKAGE TEST AND FATIGUE TEST AT 1.5 TIMES WORKING LIMIT FOR 20000 CYCLES







100% MAGNAFLUX CRACK DETECTION.







SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4







SURFACE FINISH : POWDER PLASTIFIED









 Packing: packed in cartons then on pallets or packed in wooden case

 Port: Any China main port.

 Shipping : within 30days.
