Waterproof RGB addressable boxlight led module light for arcylic sign

Specifications

1,Direct from factory DMX&matrix pixel light
2, RGB pixel lpd6803/ws16716/ws2801
2,Epistar chip with 50.000 hours
3,CE/RoHS

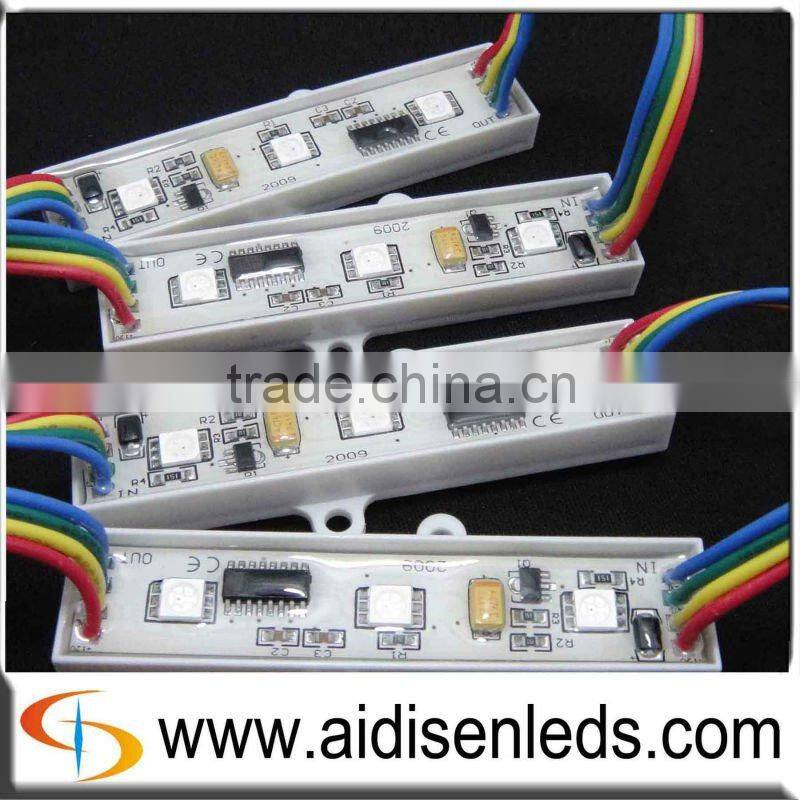

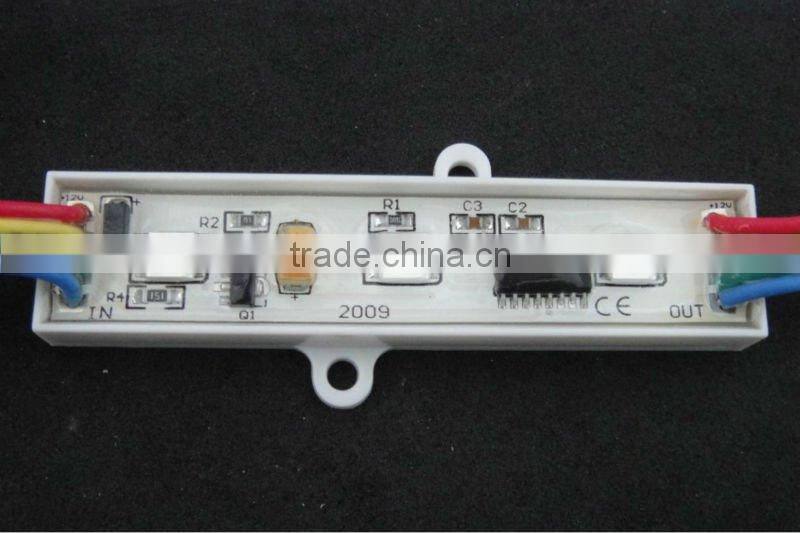

5050 smd waterproof  RGB programmable led module light



DC12V,  0.72W, 50000hours



Advantages



1,Direct from factory DMX&matrix pixel light

2, RGB  lpd6803 LED 5050 module

2,Epistar chip with 50.000 hours
3,CE/RoHS

4, from factory with 3-5days delivery

5, OEM/ODM accept

6, Pixel light with DMX 512



ADS-IT753

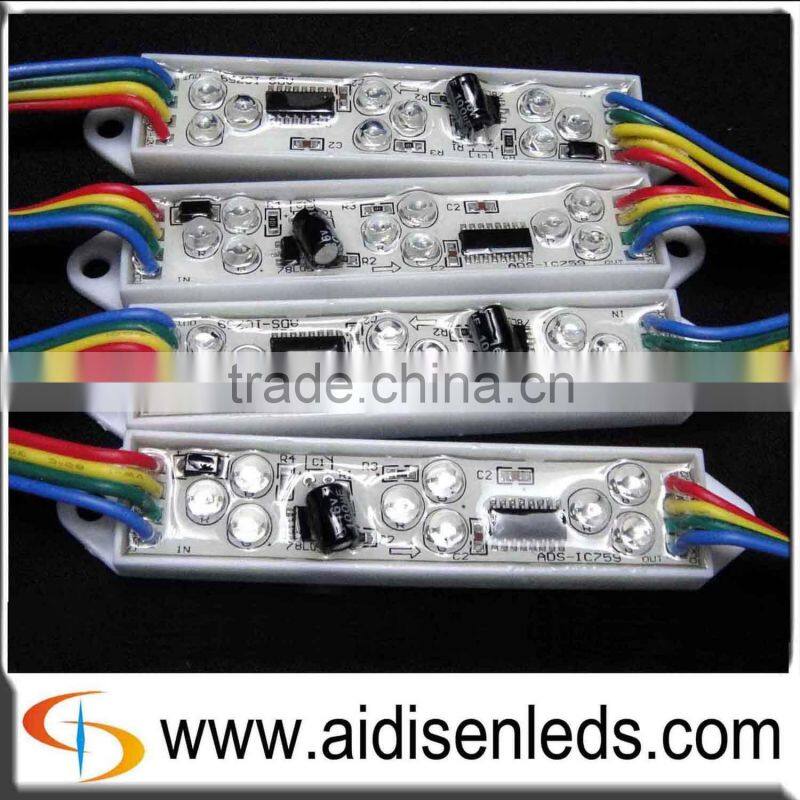

1,  ADS-IT753 is a combination of a plastic (thermostability,cold-resistant,resistant to UV) shell and PCB board,
also 4 spell line with blue,green,yellow,red ntain 3PCS 5050 SMD LED

2, This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation
methods may compose different dynamic effect of different color's character and design.

3, Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.Widely used in
LOGO, advertising billboard,exposed luminous characters, painted screen, can replace the traditional neon signs. The
distance between the lights can be choosed as customer's request.

4, This product could be linked up to20pcc. more than 20pcs is strickly prohibited. The diameter of the power cord should be
based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters), and the
voltage of transmission line.



Specification



Items	LED Qty	Color	Wavelength Scope(nm/K)	LED	PCB dimension	units
ADS-IT753	3	Red	619-635K	5050 RGB	75*15*1.6	20pcs/chain
		Green	512-528K
		Blue	463-475K



ADS-IT753 Full color led single light Parameter



Items	Parameter	Units
Vlotage	DC12	V
Power	0.75	W
Temperature	-40-60	°C
IP grage	IP66
demension	78*18.*7	mm
lifespan	50000	hours
View angle	120	°C



Technical Parameter of controller



Items	Parameter
Input Voltage	AC110V/220V(configurate according to end-user)
Battery Plug	GB, UK, U.S. regulations, etc.(configurate according to end-user)
Power dissipation	2w
Control Protocol	ICC,DMX512/1990
Stand by IC	LPD6803,D705,D709,WS2801,DMX512/1990 Decoder/ Driver
Control points	1200 points 2048 points 512 address(channel)
Gray scale	32 level, 256 level
SD card	Support FAT or FAT16 files system
Working Temperature	–35°C—75°C
Play speed	Default 20 frames / sec; DIP switch can switch between 1-40, 8-level speed adjustable
Indicator light	power indicator light(Green,Power),Play speed light(Red,State)





LED Module Applications



1,channel letter

2,Advertisements sign

3,KTV,Disco

4, LOGO, advertising billboard,exposed luminous characters,

5, LED display screen, painted screen
