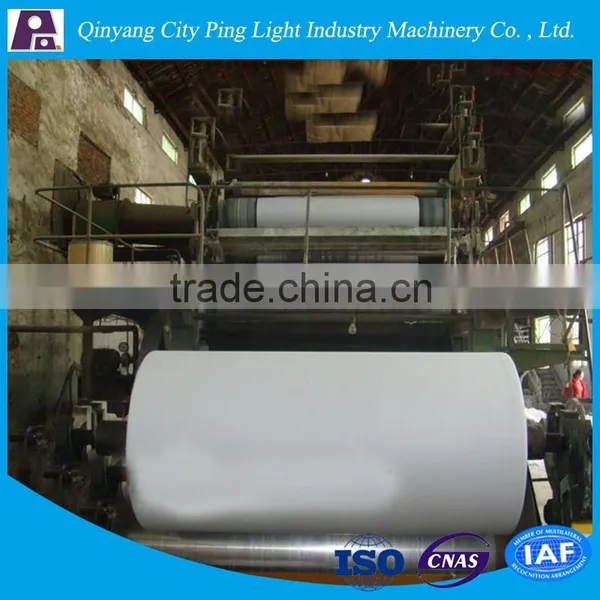

Notebook Paper Making Machine from Waste Paper and Wood Pulp

Name: Notebook Paper Making Machine from Waste Paper and Wood Pulp
Brand: Pingan
Availability: InStock

FOB Price

USD $300,000 - $350,000 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port Tianjin Qingdao Shanghai Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Other, Printing paper, writing paper, copy paper
Processing Type	Other, paper making machine	Place of Origin	Henan, China
Brand Name	Pingan	Model Number	1880mm
Voltage	can be specified	Power(W)	380V
Dimension(LWH)	According to each type	Weight	According to each type
Certification	Other, ISO9001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard Export Packing

Product Description

Notebook Paper Making Machine from Waste Paper and Wood Pulp

Skype:hwasong03

Product Description

Chapter1 Technical Parameter

Output: Writing and printing paper machine

Raw Material: Recycled white paper( with ink ) mixed with original wood pulp

Paper Weight: 40-80gsm

Net Paper Width: 2000mm

Cylinder Width: 2300mm

Design Speed: 150m/min

Working Speed: 60-120m/min

Capacity: 15T/D

Gauge: 2800mm

Pressure type: pneumatic pressure

Coating Properties: Pressure type forming cylinder machine

Drive type: section drive with AC variable frequency

Machine design: square box type, right-side operation machine

Chapter2 Main Structure of Equipment

Cylinder Part: 2pcs cylinder molds: φ1500mm×2300mm. 2pcs couch rollers: φ400mm×2400mm. Rubber hardness: Shaw 38±2°. 1pcs return roll: Φ400mm×2400mm. Rubber hardness: Shaw 90±2°. There are 2pcs pressure type forming cylinder machine and 2pcs reciprocating removing high pressure sprinkler head device.
Press Part: one stone roll: φ650mm×2400mm, one rubber roll: φ600mm×2400mm. Rubber hardness: Shaw: 90±2°with pneumatic pressure equipment.
Dryer: 1pcs dryer cylinder: φ2500mm×2300mm and 3pcs φ1500mm×2300mm, the arrangement of these dryer: (1+3). 1pcs touch roll: φ2500mm×2300mm, 1pcs rubber roll: φ400mm×2400mm, rubber hardness: Shaw 90±2°with pneumatic pressure equipment. Multi-cylinder part sets dryer screens device for up and down, pneumatic press device and electrical control device.
Press Polish Part: 1880mm three-roller press polish machine.
Reeling Part: 1880mm cylinder-type reeling machine
Drive and Control Part: Apply section drive and AC frequency conversion with regulated speed and all-digital closed loop control system.

Chapter3 Full Set Motor Equipment

Number	Equipment	Power	Quantity/pcs
1	First dryer part	18.5KW/4	1set
2	Press part	40KW/4	1set
3	Multi-dryer part	11KW/4	1set
4	Calendering	10KW/4	1set
5	Reeling machine	5.5KW/4	1set
6	Rewinding machine	22KW/speed regulation	1set
7	Cutter machine	4KW/4	1set
8	Exhaust fan	5.5KW/4	1set
9	Vacuum pump	22KW/4	1set
10	Air compressor	5KW/4	1set
11	Pulper	90KW/6	1set
12	Vibrating screen	4KW/4	1set
13	Defibrator	22KW/4	1set
14	Thickner	7.5KW/4	1set
15	Potcher	11KW/6	4set
16	Washer	4KW/4	4set
17	Impeller	11KW/6	6set
18	Double-entry pump	30KW/2	1set
19	Pressurized screen	11KW/4	1set
20	Pulp pump	4KW/4	6set
21	Pulp pump	22KW/4	4set
22	Double disk refiner	37KW/6	1set
		583KW	41set

Chapter4 Configurations of drive part, frequency converter and power distribution cabinet

1. Technical parameter of drive part:

1	First dryer part	400-speed reducer	18.5KW/4
2	Press part	500-speed reducer	40 KW/4
3	Multi cylinder part	400-speed reducer	11 KW/4
4	Press polish part	350-speed reducer	10 KW/4
5	Reeling part	350-speed reducer	5.5 KW/4

2. Technical parameter of frequency converter

2.1.Apply standard GGD control cabinet, Japanese SAMCO frequency converter and

high-quality and low-voltage apparatus.

2.2.Dynamo distribution point:18.5KW, 40KW, 11KW, 10KW, 5.5KW,total five point:84KW.

2.3.Digital signal control director:Completely digital display based on data, synchronous change and fine adjustment of speed and automatic memory.

3. Configuration of Eletric Cabinet

1. Eletric cabinet for pulper
90KW 1set	22KW1 set
2. Eletric cabinet for separator
22KW 1set, 4KW 1set	7.5KW 1set
3. Eletric cabinet for potcher
11KW 4 set	4KW 4 set
4. Eletric cabinet for Impeller
11KW 6 set	4KW 6 set
5. Eletric cabinet for Pulp pump
22KW 3 set
6. Eletric cabinet for Vacuum pump
22KW 1set	5.5KW2set
7. Eletric cabinet for double entry-pump
30KW 1set	11KW 1set
8.Eletric cabinet for rewinding machine
22KW 1set	4KW 1set

Chapter 5 Quality Promise

1. The seller should ensure that the products they offer are brand-new and unused. The equipment should be the latest design and made of suitable material. They should design and manufacture the machine strictly abided by the technical requirements signed by two sides and national and industry standards of paper machine.

2. After the production line is installed and debugged under correct guidance of the seller, they should assure that the whole line will produce qualified products 7days after smooth operation and reach the requirements specified by technical standards within 30 days

3. The supplier will appoint 1~2 technicians to install at the spot and ensure the installation safely and duly. The buyer will be responsible for the salary and accommodation of the technicians.

4. The seller should ensure the equipment they offer are safe to use and no hidden dangerous.

5. Quality assurance date: the quality assurance will be carried out based on the contract.

6. The seller need to ensure that they will be responsible for any fault, breakdown, damage of the production line caused by the seller's responsibility of the design, technical craft, manufacturing, installation, debugging, or the fault of material during the quality assurance period set in the contract.

7. During the quality assurance period, the buyer can make request to change the goods once they find that the goods are inconsistent with what described in the contract or they have got the proof of goods’ fault.

8. The seller should ensure that the spare parts of paper machine can be replaced universally and meet the requirements of systematization, standardization, generalization.

Factory information:

Raw Material:

Certification:

Our Services

1. We will send technicians to installand test the machine for you.

2. We will train skilled workers for you.

3. We will supply best after-sale service.

Company Information

We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.

FAQ:
1. What kind of paper machine your factory produce?
We produce different kinds of paper machine. such as:
a.Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
b.Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and newsprinting paper etc.
c.Packing paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc
d.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.

2. Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension, we will make your future paper mill design.

3. How about your machine’s quality, we worry about the quality?
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.

4. What should I have to know if I want to get the quotation?
1.What kind of paper you want to produce(main important)
2.What kind of raw material you will use(main important)
3.The capacity you want produce per day(main important)
4.The paper weight you require.
5.The paper width you require.

5. Why your price is so high, is there any discount?
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’principle is client first, reputation premier.

6.Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.

7.How long will it take to get the quotation?
We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority.

8.How we visit your fatory and what will be the proedure?
Our company located in Zhengzhou city, henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our chinese clients' paper mill. Welcome you and your team to visit us at any time!

Company Profile

Qinyang City Pingan Light Industrial Machinery Co., Ltd.

Qinyang City Pingan Light Industrial Machinery Co., Ltd. is a large- scale enterprise specialized in papermaking machinery field, covering the scientific research, design, manufacturing, installation and commissioning. Established in 1968, our company covers an area of 57000m2, in which the occupation of manufacturing workshop is 16000m2 and the occupation of office and living rooms is 3500m2. We have fixed assets of 5 million USD and eight large-scale production workshops. The annual gross product of our company is 110 million dollars under the concerted effort of 160 staff on duty. In 2004, we passed the international quality authentication of ISO9001 system. The main products of our company are multi-series cylinder mould paper machine, short fourdrinier paper machine, fourdrinier paper machine and multi-layer fourdrinier paper machine based on the paper width of 787mm, 1092mm, 1575mm, 1760mm, 1880mm, 2100mm, 2400mm, 2640mm, 2800mm, 3200mm, 3600mm, 3800mm, 4600mm. And we are also devoted to the manufacturing of pulp making equipment and paper converting equipment. Since the reform and opening-up policy of our state, we have exported our machines and equipment in due succession to many foreign countries like Indonesia, UZ, Russia, Kyrgyzstan, KZ, Turkmenistan, Surinam, Syria, Mongolia, Mali, Uganda and Venezuela so forth, and also send to all parts of our country. The high quality of our products and our after-sales service bring us the terrific reputation and high praise from the clients at home and abroad!
