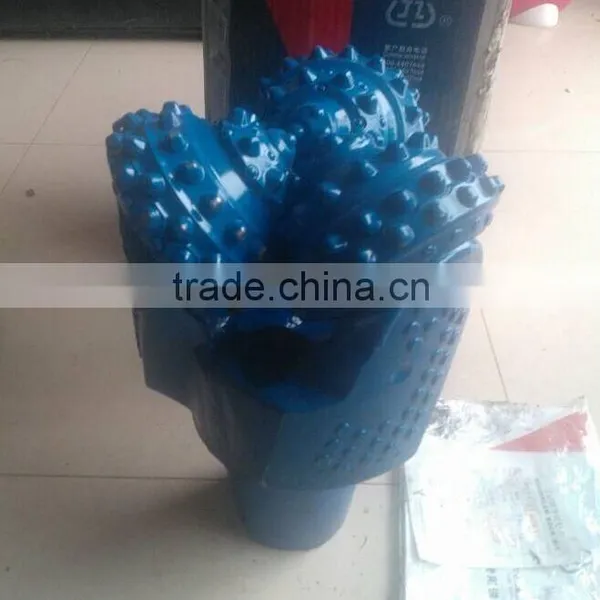

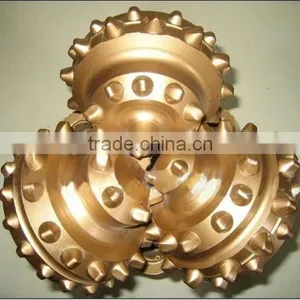

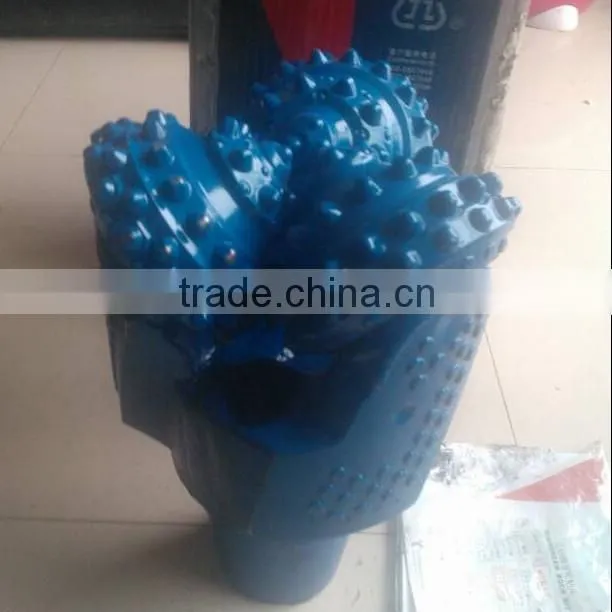

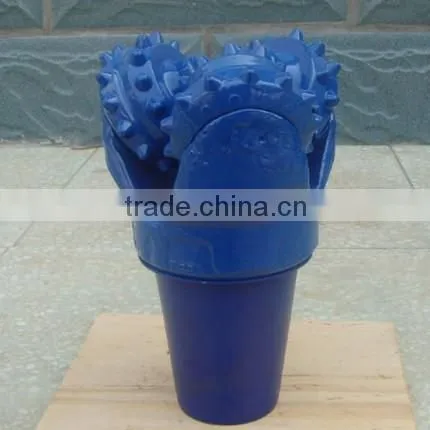

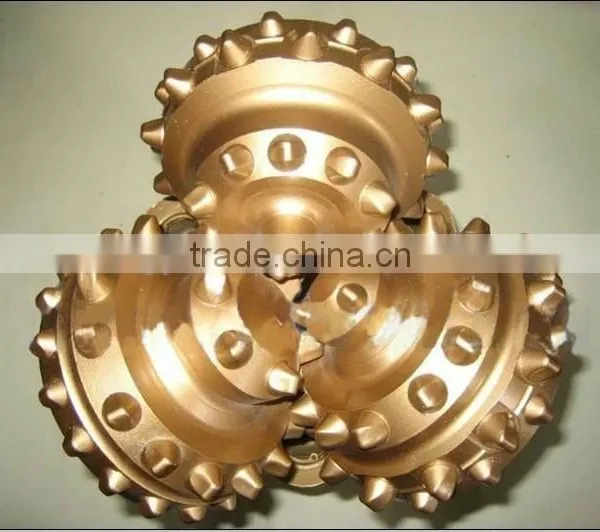

5" IADC511 tricone bit5 2/3" tungsten carbide insert bit
- 100 Piece / Pieces per Month
- Tianjin Port
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | NEW FIELD | Model Number: | 5 2/3" tungsten carbide insert bit |
| Type: | Center Drill Bit | Material: | High Carbon Steel | Use: | Other, Well Drilling, Well Drilling ,Coal Mining |
Product Description
Specifications
5 2/3" tungsten carbide insert bit
Model | Button/Insert tooth bit Milled/Steel tooth bit |
IADC CODE | 116 117 12 6127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 |
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535 617 637 737 | |
available sizes: | From 2'' to 30” larger sizes for hole opener bit ,reamer bit |
advantage | most favourable price and best qualtity |
bearing type: | sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA (rubber sealed journal bearing aircooled bearing type |
Formation or layer | soft ,medium soft ,hard,medium hard,very hard formation |
Button size (extra features) | Button bit,saw teeth 1) Y-Conical teeth 2) X-chisel teeth 3)K- wide teeth 4)G- Gague protection |
Material | Alloy steel ,carbide |
Packing | Wooden case or steel case |
Payment terms | T/T,L/C,Western union |
Delivery terms | By sea or by air |
Delivery time | Within 3 to 7 days |
Market | Canada, USA,Middle east ,Africa,Europe |
Application | petroleum&gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work |
Our advantage:
1. Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
2. Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3.Bearing Structure of this series tricone rock bit :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
4.Seal and Lubrication of this series tricone rock bit :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
5.Product Application of this series tricone rock bit :
It is suitable for downhole motor and high speed applications.
