Full Automatic Medium Scale Paintball Filling Machine Line

Specifications

Paintball Filling Machine Line is widely used in paintball manufacturers.



Paintball Filling Machine Line Description:



Model	S406PB
Die roll diameter	Φ 103mm
Die roll length	152mm
Die roll speed	0~5rpm
Plunger numbers	10
dimension	880X640X1900mm
weight	900kg
Power consumption	2.75kw
Control mode	PLC+HMI Switch/buttons
Output rate	18000 pcs/hour

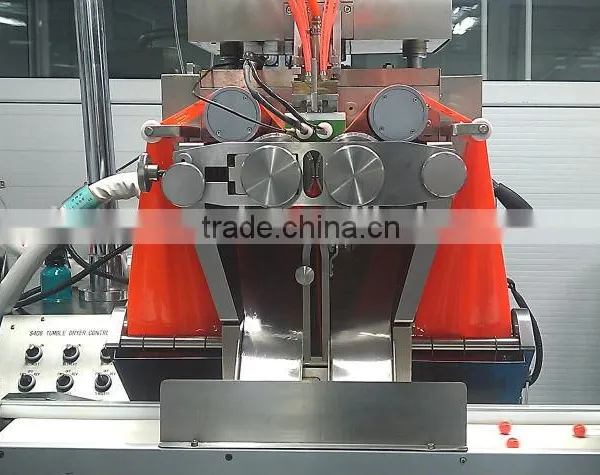

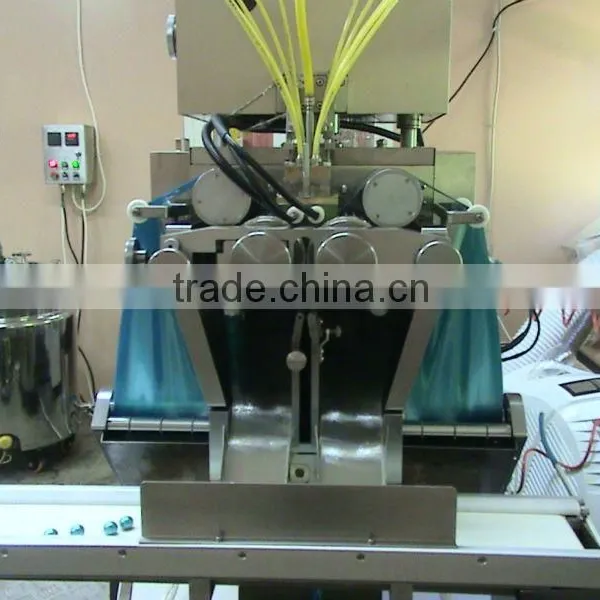

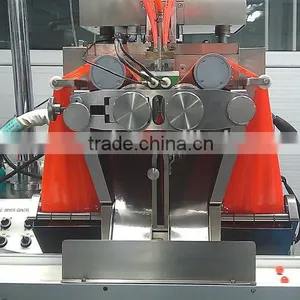

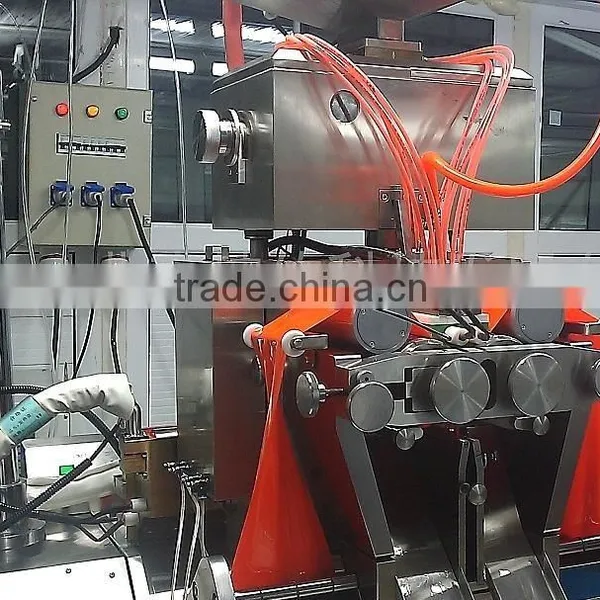

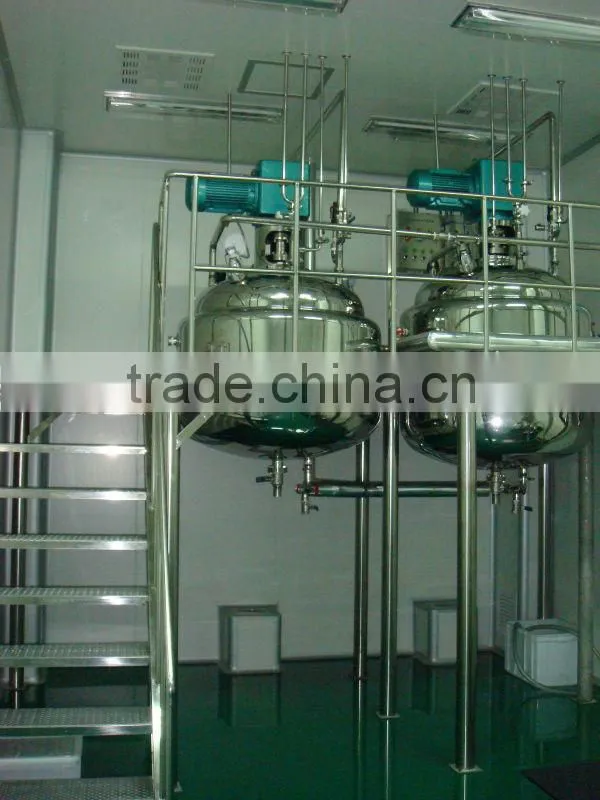

Medium scale paintball making machine's die roll is 152 mm long. The die roll's rotation rate can be regulated during 0~5 rpm, so users can choose the most appropriate speed according to diffrent material and process parameters. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The spilt structure of cooling fan reduces the thermal effect to the perssure pill. Besides, the gelatin barrel is installed with wheels which can be moved more conveniently and easily. The machine's oil roller is made of stainless steel material, so it's more in line with the repuirementS of GMP.



 Detailed Specifications:



♥ The parallelism of the main shaft for the die roll <0.02mm

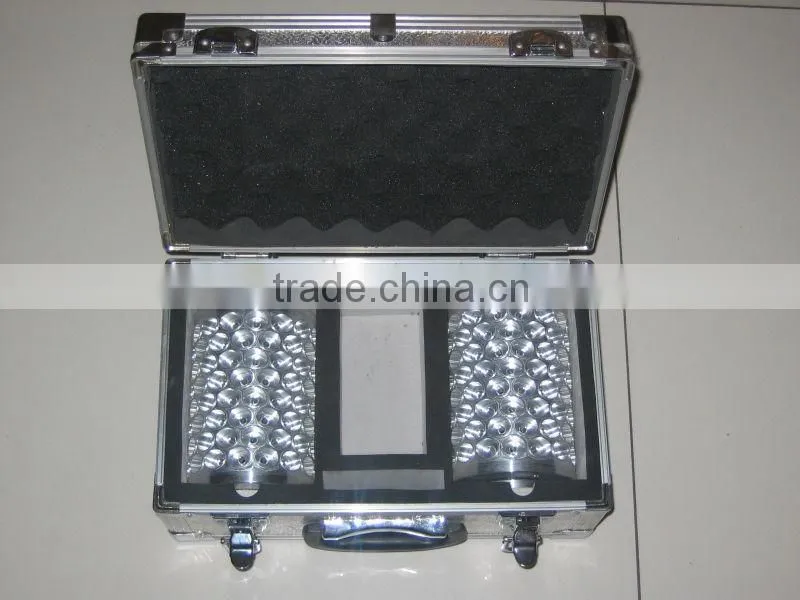

♥Die Roller Sizeø103×152mm
♥Die Roller Speed — 0~5rpm, steplessly adjustable
♥Plungers Numbers :10
♥Lubrication oil consumption — 200 g/h(Based on 3 rpm)
♥Filling Tolerance <±2%

♥Main machine power: 7kw
♥Power : 3 Phase 220V/380V415V,50Hz/60Hz
♥Overall dimension : L×W×H=800×2200×2000 (including the water cooler)
♥Cooler Temperature adjusting scope:8-18°C
♥Cooler Temperature Tolerance : <±0.5°C





Beijing KUN YOU Pharmatech Co., Ltd is looking forward to your joining.
