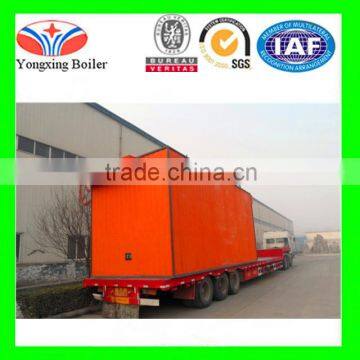

DZL10 Ton Eco Saving Thermax Boiler Insulation Material Coal Fired Boiler

Specifications

1Thermax Coal Fired Steam Boiler
2Compact structure,safe and reliable
3Simple operation,quick installation
4High efficiency

1. Characteristics:

    1) Lower fuel consumption.

     2) Lower power consumption.

     3) Lower heat losses.

     4) Boilers are completely trimmed, packaged boilers.

        No additional fuel train items or electrical wiring is needed.

     5) Integrating with explosion gate, digital control system guarantee the boiler is safe.

     6) Horizontal series steam boiler classified atmospheric pressure and pressure endurable structure.

2. Usage:

     The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc. And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.

Item	Unit	DZL1-1.0-A II	DZL2-1.25-A II	DZL2-2.5-A II	DZL4-1.25-A II	DZL6-1.25-A II	DZL6-1.6-A II	DZL10-1.6-A II	DZL15-1.6-A II	DZL20-1.6-A II
Rated Capacity	t/h	1	2	2	4	6	6	10	15	20
Rated Working Pressure	MPa	1.0	1.25	2.5	1.25	1.25	1.6	1.6	1.6	1.6
Saturated Steam Temperature	°C	183	194	225	193	193	204	204	204	204
Feed Water Temperature	°C	20	20	20	20	20	20	105	105	105
Heat Area	m²	57.47	89.4	94.8	124.9	216.4	227.2	352.2	484	785
Grate Area	m²	2.7	3.54	4.79	5.9	7.54	7.54	13.64	18.8	21.2
Boiler Thermal Efficiency	%	80.42	78.4	78.62	79.7	80.32	80.09	79.8	80.1	81.3
Water Capacity of the Boiler	m3	4.5	3.05	3.76	6.2	10.2	10.2	12.5	14.6	16.7
Exhaust Gas Temperature	°c	120.7	157	165.2	167	125	129.13	167	167	167
Design Fuel		A II	A II	A II	A II	A II	A II	A II	A II	A II
External Dimension(Length*Width*Height)	mm	5271*2500*3154	5400*2400*3480	6479*2756*3314	6178*2950*3350	7420*3000*3670	7420*3000*3670	8600*3760*5500	9400*3850*5600	9600*4200*5900
