Cable Guider(UL, CUL .CE.SGS)

Specifications

VICHNET  stainless steel wire mesh cable tray (UL, CUL .CE.SGS)

VCHNET  cable guider(UL, CUL .CE.SGS) (UL, CUL .CE.SGS)  cable guider(UL, CUL .CE.SGS)

VICHNET  cable guider(UL, CUL .CE.SGS) tray (UL, CUL .CE.SGS)

VICHNET  stainless steel wire mesh cable tray (UL, CUL .CE.SGS)

Vichnet is a telecommunication product manufacturer specialized in manufacturingstainless steel wire mesh cable tray (UL, CUL .CE.SGS).Our factory is located in the port city Ningbo.We have a professional team devoted to designing and producing reliable stainless steel wire mesh cable tray (UL, CUL .CE.SGS) that meet the needs of our global customers.

We are Google,Siemens, Microsoft, BT, China Telecom IDC  stainless steel wire mesh cable tray (UL, CUL .CE.SGS)supplier with UL, CUL,CE ISO9001:2008 and GMC. certificated.

Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS)passed Rohs, loading capacity, welding strength etc. tests.

Our stainless steel wire mesh cable tray (UL, CUL .CE.SGS) guarantee 10 years.

Material: VICHNET   cable guider(UL, CUL .CE.SGS) (UL, CUL .CE.SGS)

(stainless steel wire mesh cable tray (UL, CUL .CE.SGS))

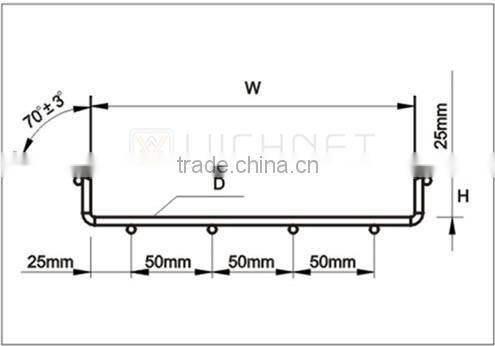

Dimensions: (Available for customized)

VICHNET  stainless steel wire mesh cable tray (UL, CUL .CE.SGS)

stainless steel wire mesh cable tray (UL, CUL .CE.SGS) dimensions are all internal size.

stainless steel wire mesh cable tray (UL, CUL .CE.SGS) are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.

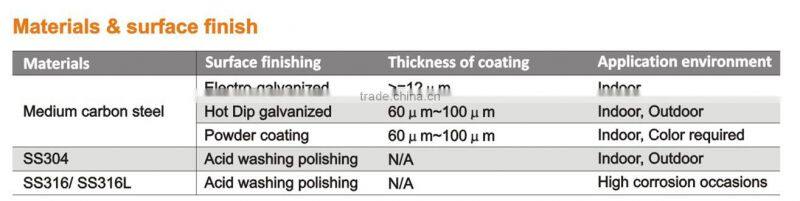

Surface Finish:

Electro zinc plated  stainless steel wire mesh cable tray  – for indoor use to BS EN 12329-2000, 12microns thick.

Powder coated  stainless steel wire mesh cable tray  - for indoor use to JG/T3045-1998, between 60 and 100 microns thick

Hot Dipped Galvanized  stainless steel wire mesh cable tray  – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing  stainless steel wire mesh cable tray – for stainless steel use

Dimensions: (Available for customized)

stainless steel wire mesh cable tray  dimensions are all internal size.

stainless steel wire mesh cable tray  y are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.

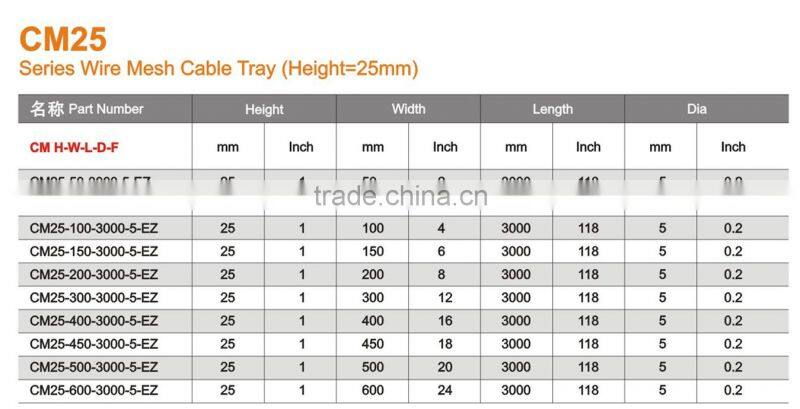

  cable guider(UL, CUL .CE.SGS)   Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...

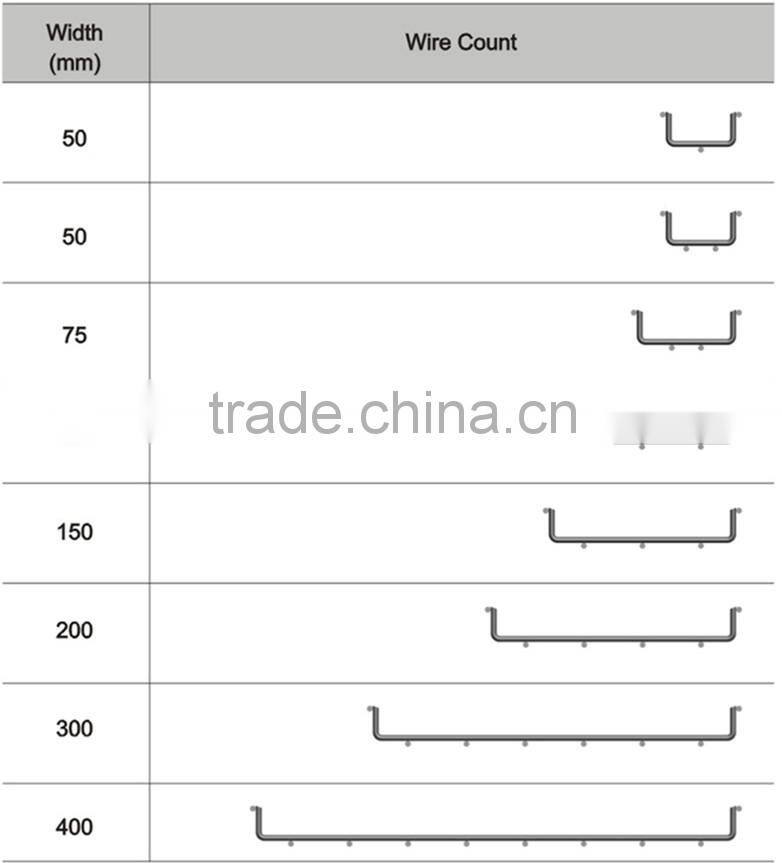

  cable guider(UL, CUL .CE.SGS)   Widths: 50~1000mm.

  cable guider(UL, CUL .CE.SGS)   Length: Maxiun 3000mm

  cable guider(UL, CUL .CE.SGS)   Wire Diameter:  3.5~ 6.0mm

Installation Notice:  cable guider(UL, CUL .CE.SGS)

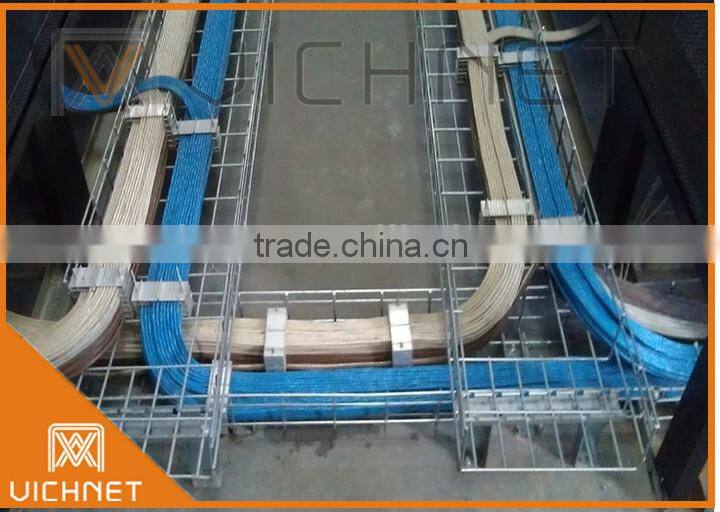

Bends, Risers, T Junctions, Crosses and Reducers can be made from stainless steel wire mesh cable tray  straight sections flexibly in project site.

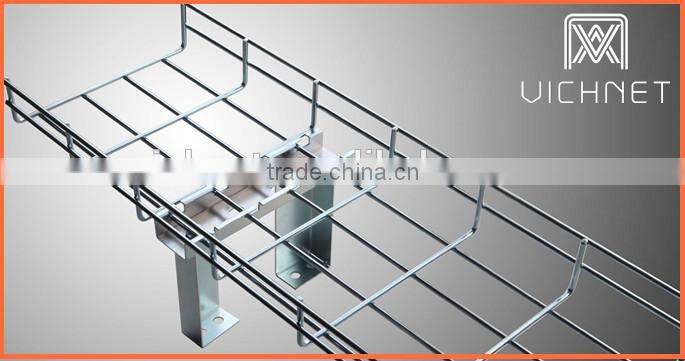

stainless steel wire mesh cable tray should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).

stainless steel wire mesh cable tray  can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics.

Our Advance ( cable guider(UL, CUL .CE.SGS) )

1. Vichnet is a leading  cable guider(UL, CUL .CE.SGS) manufacturer in China
2. Focus on producing cable guider(UL, CUL .CE.SGS)
3.ISO9001:2008/UL/CUL/CE, passed Rohs test
4.  cable guider(UL, CUL .CE.SGS)  EZ>12u, HDG>60u
5. Vichnet provides all solution for cable guider(UL, CUL .CE.SGS) systems, provide the technical guide movie.
6. Advance design team, OEM service accepted.
7. Siemens and GE specified cable guider(UL, CUL .CE.SGS) system supplier

Welcome to choose our high quality  cable guider(UL, CUL .CE.SGS)
