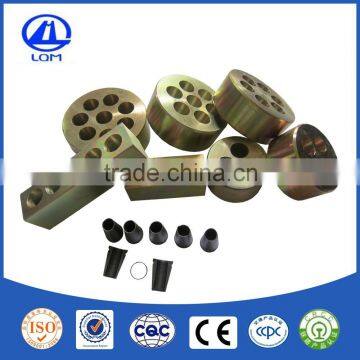

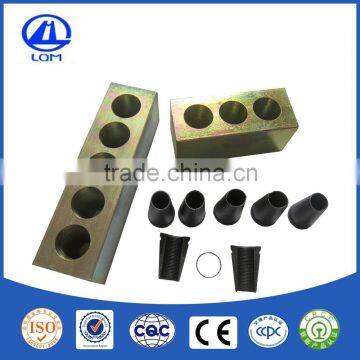

1 New prestressed chucks for building construction
2 LQM anchorage main performance
| Matched with strand diameter of | 12.7mm ; 12.9mm,15.24mm ;15.7mm, 17.8mm-18.5mm, 21.6mm-22mm |
| Tensile strength | 1860 Mpa |
| Yield strength | 1675MPa |
| Hardness | 20-35HRC |
| Static load test passed anchoring efficiency | ηA≥0.95 and elongation ≥2% |
| With-draw of wedge after stressing | λ≤6mm |
3 Feature of LQM prestressed chucks
LQM prestressed chucks consists of stress-end anchorage, fixed end anchorage, plastic or metal corrugated ducts, PC strands(PC wire bundle).
LQM anchorage chucks system has the following features:
LQM anchorage system can be used to anchor different kinds of which strength below 2000Mpa PC strands.
LQM anchorage is complete in varieties and specifications.Wedge anchorage can be chosen arbitrarily from 1-55 wire PC strand (PC wire bundle) or according to the specific demands of the engineering designs. It is an anchorage system featured by its wide range of the application, easy of the design and simplicity of the process.
Our products packed by different cartons according to their specification
4. Production Process
5 Application and service for prestressed chucks
LQM prestressed anchorage can be used efficiently in all applications of Building and Civil Engineering works including :
- Building floor slabs
- Bridge girders
- Tanks and Silos
- many other applications
