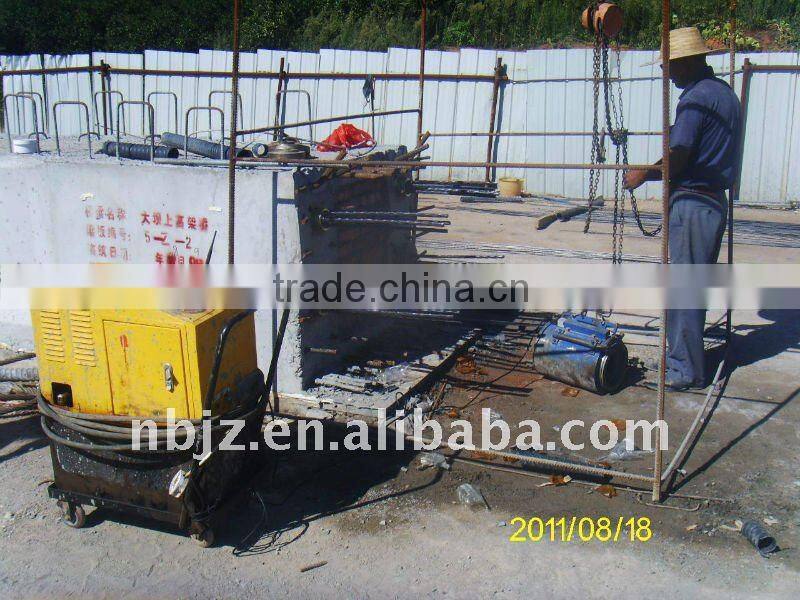

Large Construction Projects

 Application:

1.It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials.

Parts

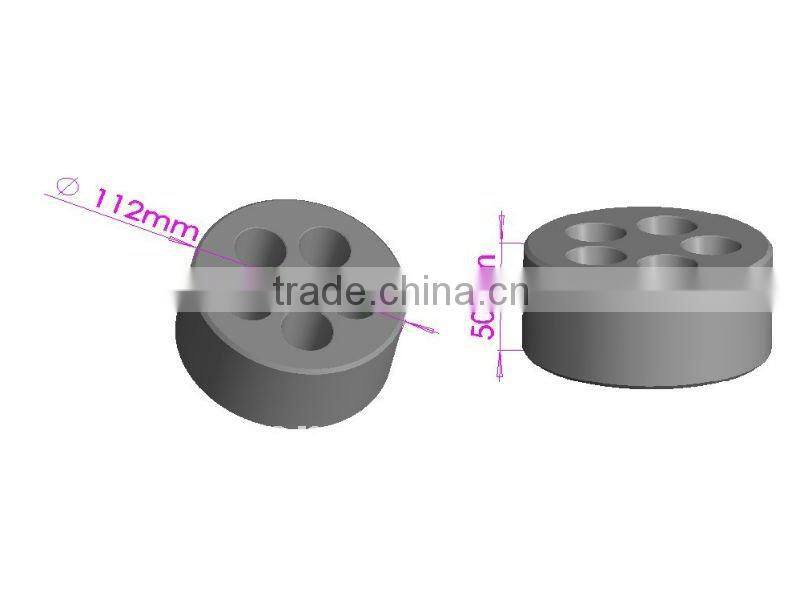

1.LQM stress-end wedge anchorage anchor system consists of LQM15 and LQM13 stress-end anchorages.

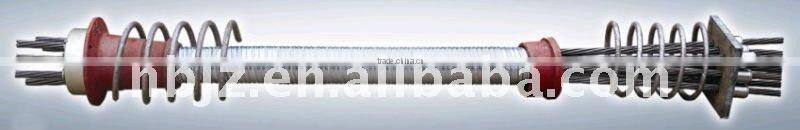

2. Each unit includs working anchor head, working wedge, anchor bearing plate and spiral reinforcement), metal corrugated duct, PC strands or PC wire bundle.

 Instructions:

 When install anchorage, O Dia of Anchor Head should put in hole of Anchor Bearing Plate ,and the restraing plate must in the same direction with the hole of tool anchorage,and the strands cannot be twined around each other and dislocated.
