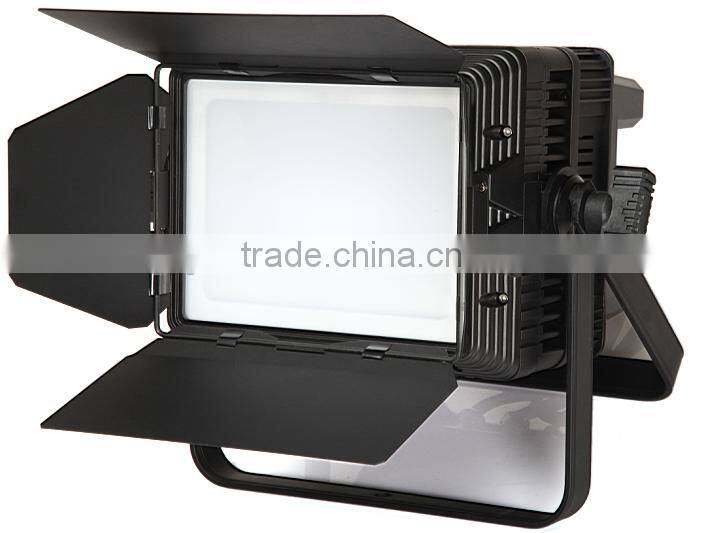

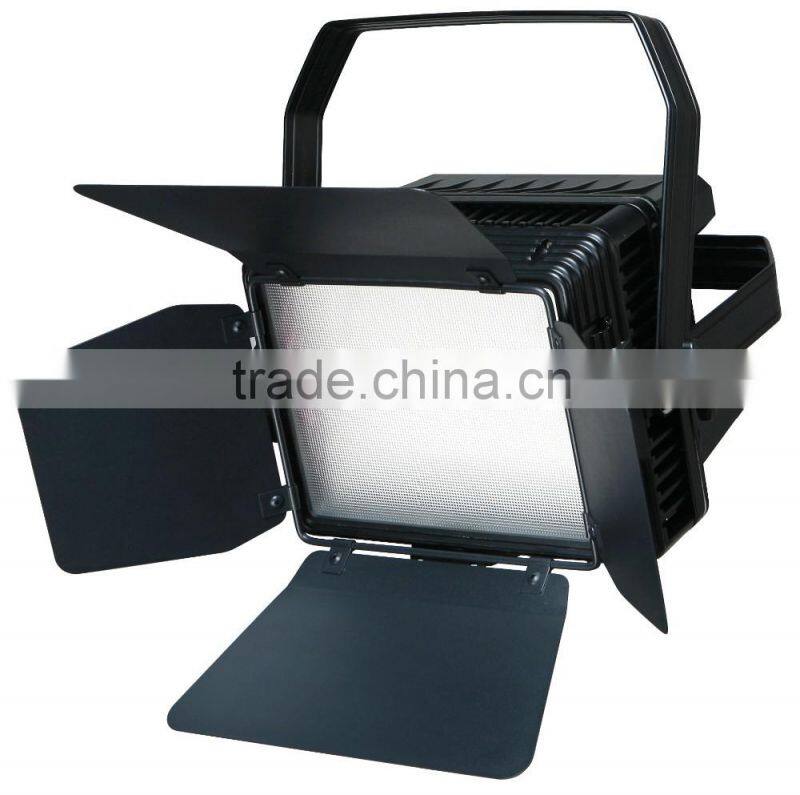

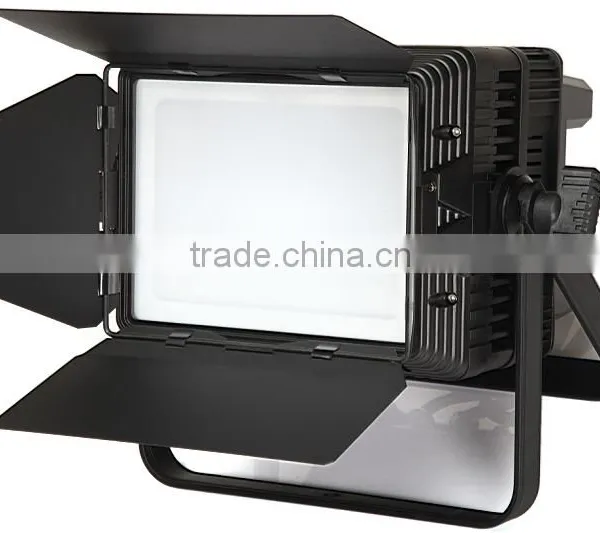

Dmx 160w Led Studio Light Theater Stage Lighting Led Panel Light

Dmx 160w Led Studio Light Theater Stage Lighting Led Panel Light

Model: JL-A01

Product Name:  theather light

Product features

1) High illuminance: close to the traditional tungsten lamp

2) Super beam angle:120°large area irradiation and soft edge of spot. The effect of the spots from up and down is close to the traditional tungsten which can be smoothly shot to the screen. The beam angle of competing products is 60° which makes the spot with sharp edge, and the spot is not smooth.

3) Good performance of cooling system

4) Low power

Scope of application

The scope of film and television, theater, live events, trade show exhibits, educational facilities, retail environments, and corporate shows, etc.

Product description

Diecasting aluminum shell, double modular structure, easy handling, maintenance friendly, LED combination light sources, soft beam, smooth spot, high illuminance.The double-balance heat conduction technology and fin type heat dissipation design are used to export a greater flow of energy effectively with noise free. The traditional tungsten with color move equipment has large volume, high energy consumption, complicated wiring, and difficult controlling.

Parameters:

Power supply:AC90-240V,50Hz/60Hz
Light source:Everlihgt brand High illuminance imported LED chip
Quantity of chip:576Pcs(W:288Pcs,Amber:288Pcs)
Optical lens: Dot-matrix compound eye optical system
Power:160W
Adjustable Color Temperature:3000K~6500K
Preset Color Temperature: 3000K,3200K,4500K,5600K,6500K
Color Temperature deviation: ±5%
Manual Dimmer:0%~100%
Beam angle: 120°
Color rendering index: CRI 85 Ra
Control system:DMX512
Channels:4CH
Display screen:Digit
Working Environment:-20℃~35℃
Life:50000h
Tilt:±90°
Protection class:IP23
Light barrier:Four-leaf(supply for requirement)
Weight of light barrier:0.5KG
Weight:6.3KG
Dimension:371x210x400MM
Hanging installation: screw holes can be installed 13MM
