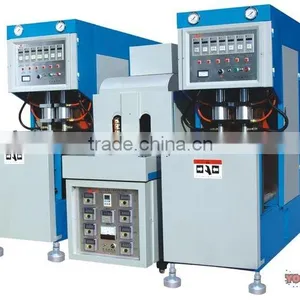

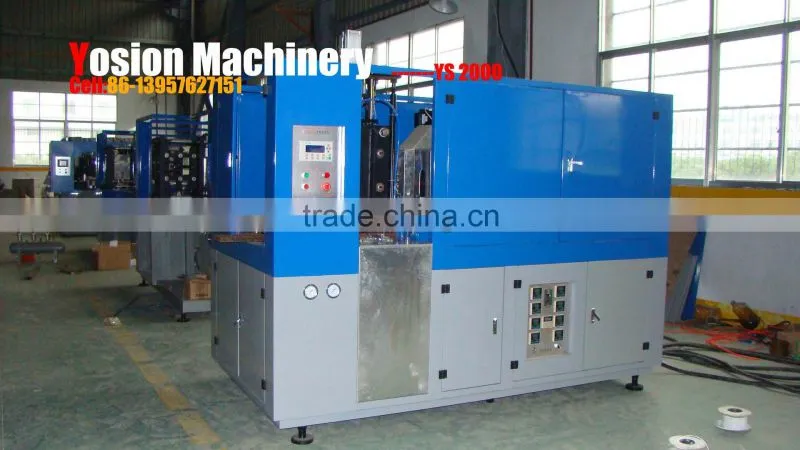

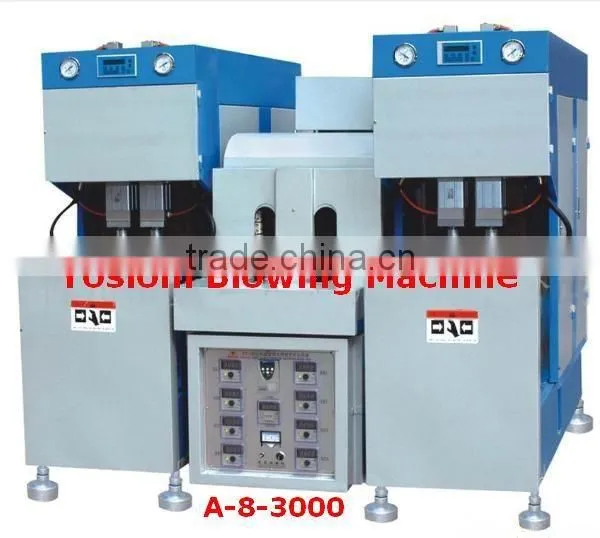

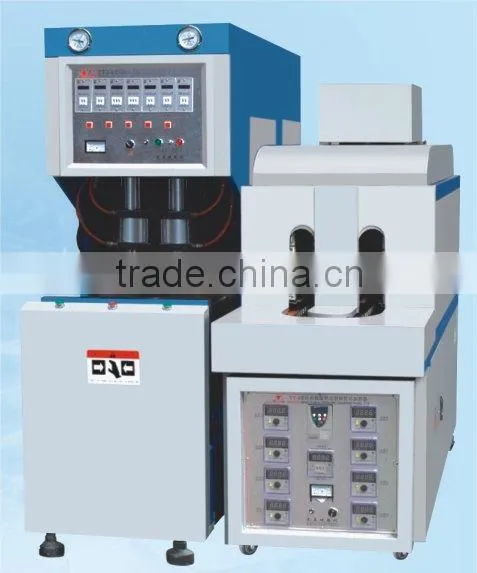

YS18-2S Two Main Engine Double arm Relay control with far-infrared heater

Specifications

the max. capacity are 6 liters apply to blowing to pet,pc,pp or pe as raw materials to any shape of drinking bottle

Detailed Product Description

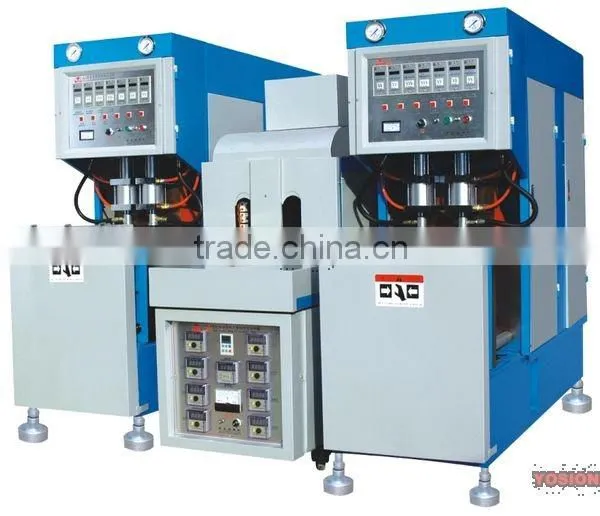

YS 18-2(2+1) PET Bottle blowing machine Double arm relay control with far-infrared heater , can make max 6L bottle .

     Detailed Product Description YS 18-2S Double arm relay control with far-infrared heater the max. capacity are 6 liters apply to blowing to pet,pc,pp or pe as raw materials to any shape of drinking bottle,mineral water bottles,pesticide bottles,cosmetic bottles.

    MACHINES FEATURES:

1.Adopt double arm clamping,with high clamping,Action flexible.

ntroller use relay(or use PLC),maintenance conveniet,low-cost,time can be precisely controlled to 0.01seconds.

3.air system will be designed to move and inflatable divided into two parts to meet

blow,movements of different air pressure requirem ents.

4.Using far infrared heater rotation frequency heating,the track to make heating uniformity,fast and reliable.

5.Different of the heating lamp equipped with independent temperature  control device to ensure that the best preform heating effect.

6.Heating lamp under the direction can adjust according different preform.

7.Operate only one person,do not need special training.

8.Installatioon,start simple.

Machine Spec. see below :





TECHNICAL DATA
Item	UNIT	YS18-2(2+1)fitted with a far-infrared heater
Volume of Product	L	1.5-6L
Theoretical Output	Pcs/h	1000-1600
Whole machine power	KW	15
Actual Power Consumption	KW	5-14
Working air-pressure/flow	Mpa m3/min	08-1.25 1-1.2
Blowing air-pressure/flow	Mpa m3/min	2.0-3.0 1.2-1.5
Mould Stroke	mm	230
Mould thickness and width	mm	140-250/360
Stretching Stroke	mm	350
Weight of Main Blower	KG	1500
Measurement of Main Blower	m	1.85X0.66X1.5X2 1.7X0.63X1.4
