348106-B21 400mhz pc6400 ddr server ram memory 8gb in stock

Specifications

348106-B21 400mhz pc6400 ddr server ram memory 8gb in stock
1.3 years warranty
2.RMA<1%
3.ECC/REG Function
4.Work with MB

348106-B21 400mhz pc6400 ddr server ram memory 8gb in stock

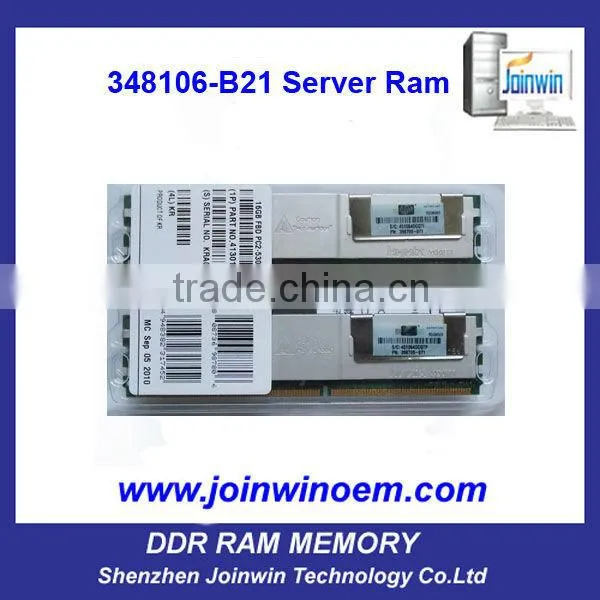

Original brand server ram 8GB (2X4GB) PC2-3200 RegisteredDDR2 ECC 400MHz Dual Rank Memory Kit

Model No.: 348106-B21

Application: Server

Function: REG ECC-DIMM

Port: DIMM 240 pin

Packing: BAG

Ram Capacity: 8GB ( 2 x 4GB )

Supply voltage: 2.5V

Frequency: 400 MHz (PC2-3200)

Data Integrity Check: ECC

Feature: Dual Rank





BL20p G3/DL140 G2/DL360 G4p/DL380 G4/DL580 G3/DL580 G4/ML350 G4p/ML370 G4/ML570 G3/ML570 G4





When upgrading memory DIMMs 1A and 3A must match. DIMMs 5B and 7B DIMMs 2C and 4C and DIMMs 6D and 8D must match and must be installed as a pair. When DIMMs 1A and 3A are populated the system is automatically configured for 2:1 interleaving. When all 4 banks are populated the system is automatically configured for 4:1 interleaving. When four six or eight DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.







NOTE: In the online spare configuration the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated bank B is the spare bank. If banks A B and C are populated bank C is the spare bank Online spare memory is configured through RBSU.

NOTE: Mirrored Memory uses mirrored banks to provide a high level of memory redundancy. Customer chooses to implement or not: User selectable via BIOS and default is off.





P/N	DESCRIPTION	COMPATIBILITY
300682-B21	4GB REG PC2100 2X2GB	HP 140,310,320G2,330,330G3,350G3,360G3,370G3,380G3,560,58520PG2,40P
343056-B21	2GB REG PC2-3200 DDR2 2X1GB ALL	BL20p G3, DL140 G2, DL360 G4p, DL380 G4, DL580 G3, DL580 G4, ML350 G4p, ML370 G4, ML570 G3, ML570 G4
343057-B21	4GB REG PC2-3200 DDR2 2X2GB ALL	DL140 G2, DL360 G4p, DL380 G4, DL580 G3, DL580 G4, ML350 G4p, ML370 G4, ML570 G3, ML570 G4
375004-B21	4GB REG PC2-3200 DDR2 2X2GB ALL	BL20p G3, DL360 G4p, DL380 G4, DL580 G3, DL580 G4, ML570 G3, ML570 G4
348106-B21	8GB REG P2-C3200 DDR2 2X4GB ALL	BL20p G3/DL140 G2/DL360 G4p/DL380 G4/DL580 G3/DL580 G4/ML350 G4p/ML370 G4/ML570 G3/ML570 G4
358349-B21	2GB REG PC2700 SGLDMM ALL	DL360 G4, ML150 G2,ML350 G4,DL145, DL385, DL585 , Workstation xw9300 ProLiant BL25p, BL35p, 330G3 BL45p, DL145 G2, DL385 G1,DL145, DL385 , DL585 ,Workstation xw9300
371049-B21	4GB REG DDR PC2700 2X2GB ALL	DL585 PC2700,DL585 G1
379300-B21	4GB REG DDR PC3200 2X2GB ALL	BL25p BL35p BL45p DL145 G2 DL385 G1 DL585 G1
397411-B21	2GB FBD PC2-5300 2X1GB Kit	BL20p G4, BL460c, BL480c, BL680c G5, DL140 G3, DL160 G5, DL180, DL360 G5, DL380 G5, DL580 G5, ML150 G3, ML350 G5, ML370
397413-B21	4GB FBD PC2-5300 2X2GB Kit	BL20p G4, BL460c, BL480c, BL680c G5, DL140 G3, DL160 G5, DL180, DL360 G5, DL380 G5, DL580 G5, ML150 G3, ML350 G5, ML370 G5
397415-B21	8GB FBD PC2-5300 2X4GB Kit	BL20p G4, BL460c G1, BL480c, BL680c G5, DL140 G3, DL160 G5, DL160 G5p, DL180 G5, DL180 G6, DL360 G5, DL380 G5, DL580 G5, ML350 G5, ML370 G5
466440-B21	8GB FBD PC2-5300 2X4GB LP	BL460c G1, BL480c, BL680c G5, DL160 G5, DL160 G5p, DL360 G5, DL380 G5, DL580 G5, ML370 G5
408851-B21	2GB REG PC2-5300 2X1GB ALL	BL260c G5, BL2x220c G5, BL45p G2, BL465c G1, BL465c G5, BL685c G1, BL685c G5, DL145 G3, DL165 G5, DL180 G5, DL185 G5, DL365 G1, DL365 G5, DL385 G2, DL385 G5, DL585 G2, DL585 G5, DL785 G5, ML150 G5
408853-B21	4GB REG PC2-5300 2X2GB 1R*4 ALL	BL260c G5, BL2x220c G5, BL45p G2, BL465c G1, BL465c G5, BL685c G1, BL685c G5, DL145 G3, DL165 G5, DL180 G5, DL185 G5, DL365 G1, DL365 G5, DL385 G2, DL385 G5, DL585 G2, DL585 G5, DL785 G5
408854-B21	8GB REG PC2-5300 2X4GB 2RANK	BL260c G5, BL2x220c G5, BL45p G2, BL465c G1, BL465c G5, BL495c G5, BL685c G1, BL685c G5, DL145 G3, DL165 G5, DL180 G5, DL185 G5, DL365 G1, DL365 G5, DL385 G2, DL385 G5, DL585 G2, DL585 G5, DL785 G5, ML150 G5
408855-B21	16GB REG PC2-5300 2X8GB	BL260c G5, BL2x220c G5, BL465c G5, BL465c G6, G7, BL495c G5, BL495c G6, G7, BL685c G5, BL685c G6, G7, DL165 G5, DL165 G5p, DL165 G6, G7, DL185 G5, DL385 G5, DL385 G5p, DL385 G6, G7, DL585 G5, DL585 G6, G7, DL785 G5, DL785 G6
495605-B21	64GB REG DDR2 PC2-5300 2X8GB	BL465c G5, BL465c G6, G7, BL495c G5, BL495c G6, G7, BL685c G5, BL685c G6, G7, DL165 G5, DL165 G6, G7, DL185 G5, DL385 G5, DL385 G5p, DL385 G6, G7, DL585 G5, DL585 G6, G7, DL785 G5, DL785 G6
413015-B21	16GB FBD PC2-5300 2X8GB	BL460c G1, BL480c, BL680c G5, BL680c G5, DL160 G5, DL160 G5p, DL360 G5, DL380 G5, DL580 G5, DL580 G5
495604-B21	64GB FBD PC2-5300 8X8GB	BL460c G1, BL480c, BL680c G5, BL680c G5, DL160 G5, DL160 G5p, DL360 G5, DL380 G5, DL580 G5, DL580 G5





1.A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.

2.Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules).  Standard DDR3 240-pin DIMMs are currently available in DDR3 PC3-8500 SDRAM. Additional speeds will be added as the technology becomes available.

3.The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.

1. If you are not sure what to buy or need any help,please provide your Server/Workstation Make, Model and Processor Speed and we will give you feasible advice. And also it will help us to double check at shipping that the memory upgrade is compatible.

2. The solder used in many models of ram contains lead, a chemical known to cause birth defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if heating the solder.



3. To avoid any quality problem and enjoy our long-term cooperation, all goods are 100% tested one by one strictly before delivery.

4. We promise 3 years free warranty and offer repair or replacement service according conditions . The returning shipping cost should be paid by customer.

5. All return items must be in good conditions. They must be under resaleable conditions. Human-made defects are not guarantee, such as broken, scratched and etc

1. We deliver goods by DHL EMS UPS FEDEX (Safe Door to Door shipment)

2. The goods will be sent out with in 2-3 working days after confirming your payment.But sometimes the delivery will be delayed due to the shortage.However, we’ll inform you in time by email.
