Solar keymark and CE standard flat plate solar collector prices
- 3000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
bluetec flat plate solar collector with high selected absorb coating
-
heat pipe Vacuum tube solar hot collector pricdes with SOLAR KEYMARK approved for sale
-
heat pipe Vacuum tube solar hot collector pricde with SOLAR KEYMARK SRCC approved
-
large solar hot water boiler for hotel price,solar collector for boiler
-
Heat pipe solar solar evacuated tube collector,SRCC,SOLAR KEYMARK approved
-
selective coating for solar panel collector
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | DR.X | Model Number: | DX/FCA-2000/1000/80D |
| Type: | Pressurized | Application: | Solar Thermal | Pipe Material: | Glass |
Product Description

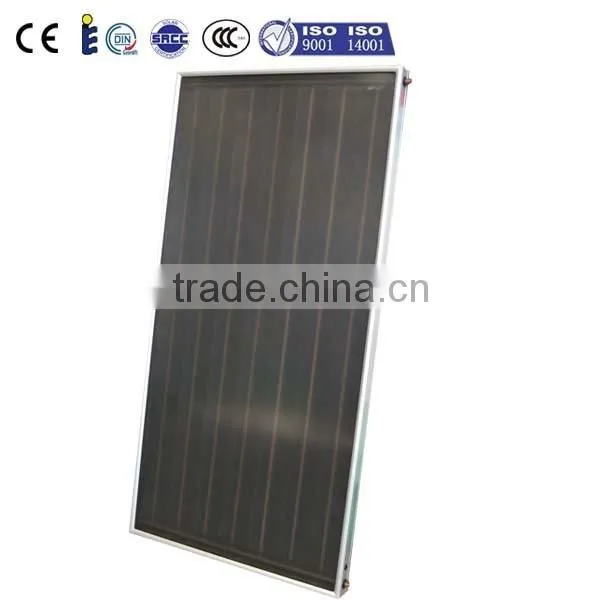

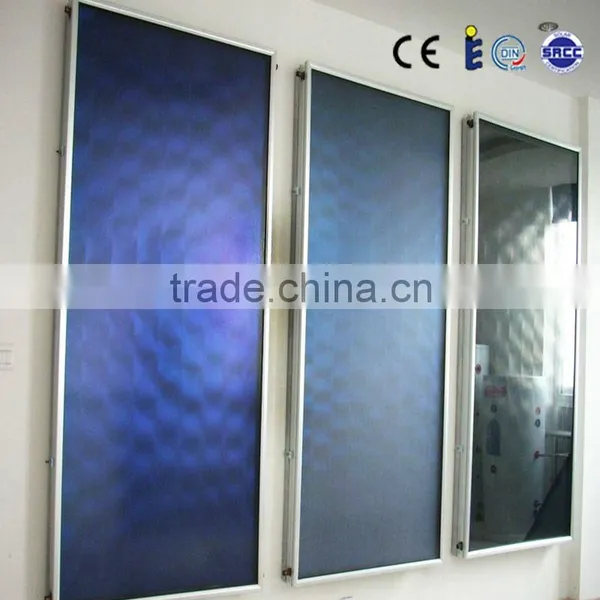

Solar keymark, CE standard flat plate solar collectors

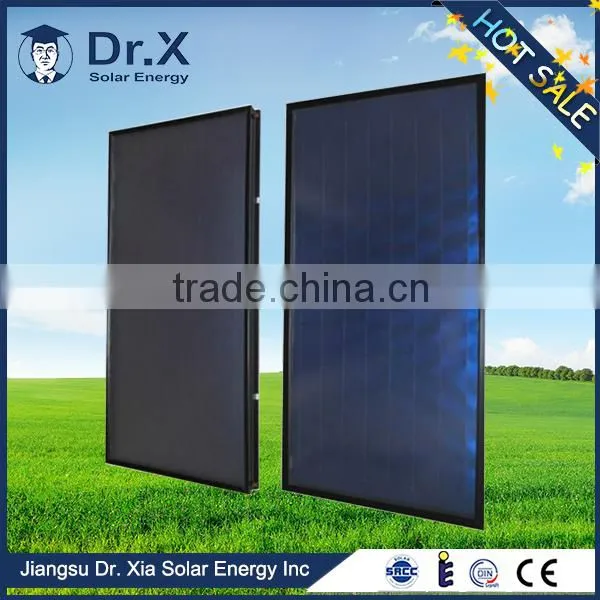

Dr.X Brand new technology balcony solar collector

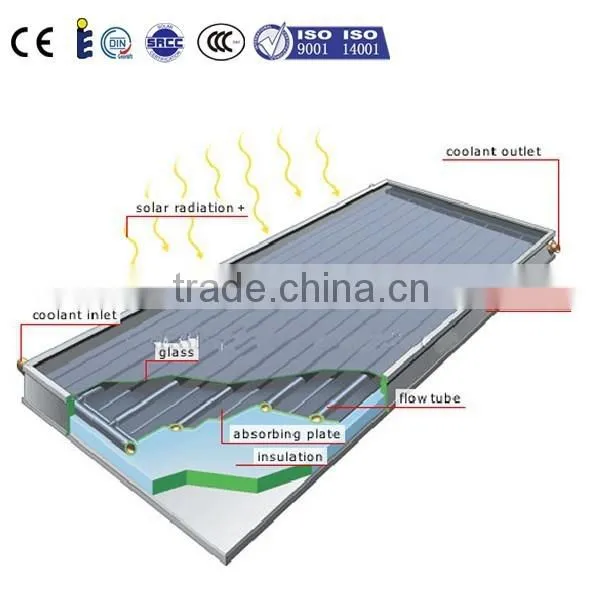

Components:
Tempered glass cover, absorbing plate, insulation and back plate, specific detail as bellow:
Dr.Xia titanium coating advantages:
1. Titanium coating is evenly distributed and high quality
2. High Thermal efficiency, 95% absorption, 6% emission.
3. Excellent weather resistance, fastness for 25 years, efficiency declines less than 5%.

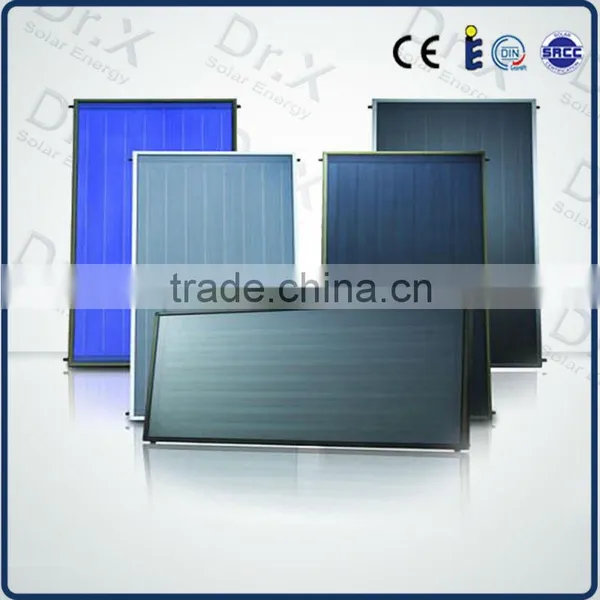

Model | DX-FCA-2000/1000/80 | DX-FCBC-2000/1000/80 | DX-FCB-2000/1000/80 | DX-FCT-2000/1000/80 |
Coating | Anodic Oxidation | Black chrome | Black chrome | Blue coating |
Welding | Laser | Ultrasonic | Laser | Laser |
Material of Absorber | Copper &Aluminum | Copper | Copper &Aluminum | Copper &Aluminum |
Size & Quantity header pipe | 22*08mm 2PCS | |||
Size &Quantity branch pipe | 10*0.6mm 7PCS | |||
Absorption rate | 0.90±0.03 | 0.93±0.03 | 0.92±0.03 | 0.94±0.02 |
Reflection rate | 0.18±0.05 | 0.10±0.05 | 0.10±0.05 | 0.05±0.02 |
Collector size | 2000 x 1000 x 80mm | |||
Frame color | Silver/Black/Champagne | |||
Gross area | 2m2 | |||
Absorber area | 1.85m2 | |||
Sealing | EPDM | |||
cover material | Ultra white and low iron fabric surface tempered glass | |||
Cover transmission | 92% | |||
Back plate material | 0.30mm galvanized steel | |||
Insulation | 30mm glass wool | |||
Max working pressure | 0.6MPa | |||
weight | 37kg | 37kg | 38kg | 38kg |
Specification:
Model | Dimension (mm) | Material of absorber | Coating | Quantity 20GP/40GP/40HQ (pcs) |
DX/FCT-2000/1000/80 | 2000*1000*80
| Copper & Aluminum | TiNoxOy Blue Coating | 122/256/302
|
DX/FCB-2000/1000/80 | Black Chrome | |||
DX/FCA-2000/1000/80 | Anodic Oxidation | |||
DX/FCBC-2000/1000/80 | Copper | Black Chrome |
solar collector, flat plate solar collector prices, solar collector prices
Jiang Su DR. Xia Solar Energy INC. was established in 1988 and is located in Chang Zhou city. Our company covers an area of 45000 square meters and has over 100 employees.
We are specialized in Solar water heater and have an annual production capacity of 100,000sets. Our company has rich experience in the solar industry. Besides, because of large overseas markets, most of our products have got Solar Key mark, SRCC, CE certificates.
Our company has laser welding, automatic punching and vacuum sputtering equipment to strictly control the product quality. We warmly welcome customers from at home and abroad to cooperate with us for common success.
solar collector, flat plate solar collector prices, solar collector prices
1. OEM service
2. Warranty: 5 years
3. Considerable after sale service
Certifications:
solar collector, flat plate solar collector prices, solar collector prices
